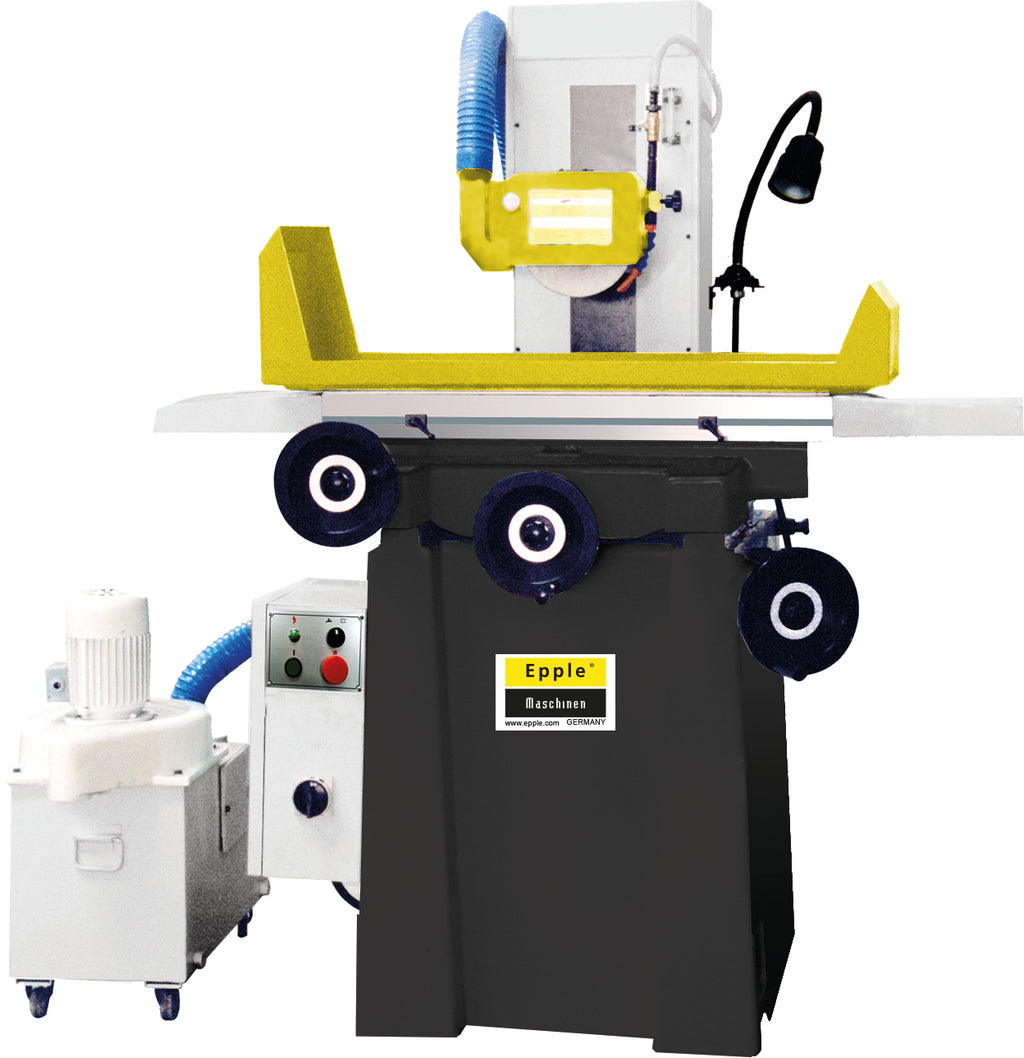

Surface and polishing grinding machine - HFSM 4020
Surface grinding machines with convenient operation for precise and economical workpiece processing.
All models are designed for long-term continuous operation, from model FPSM 5025 onwards with longitudinal and transverse feed and automatic vertical feed.
With standard accessories grinding wheel flange, balancing mandrel, coolant tank, work lamp, tool box, grinding wheel dresser without diamond, standard grinding wheel, leveling feet.
To grind profiles, the grinding wheel must have the appropriate contour. Various options are available for this. Further information is available upon request (please specify the desired profile shape).
Technical data
| Sanding belt length max. |
470 mm |
| Grinding width max. |
220 mm |
| Table size |
450 x 210 mm |
| Distance table - spindle center |
450 mm |
| Feed vertical |
Manually |
| Table feed |
Manually |
| Grinding wheel size |
200 x 31 x 13 mm |
| Spindle speed |
2,850 rpm
|
| Engine power |
1.2 kW |
| Dimensions (D x W x H) |
1,100 x 1,370 x 1,920 mm |
| Weight |
approx. 800 kg |
| EAN |
4260364297669 |
