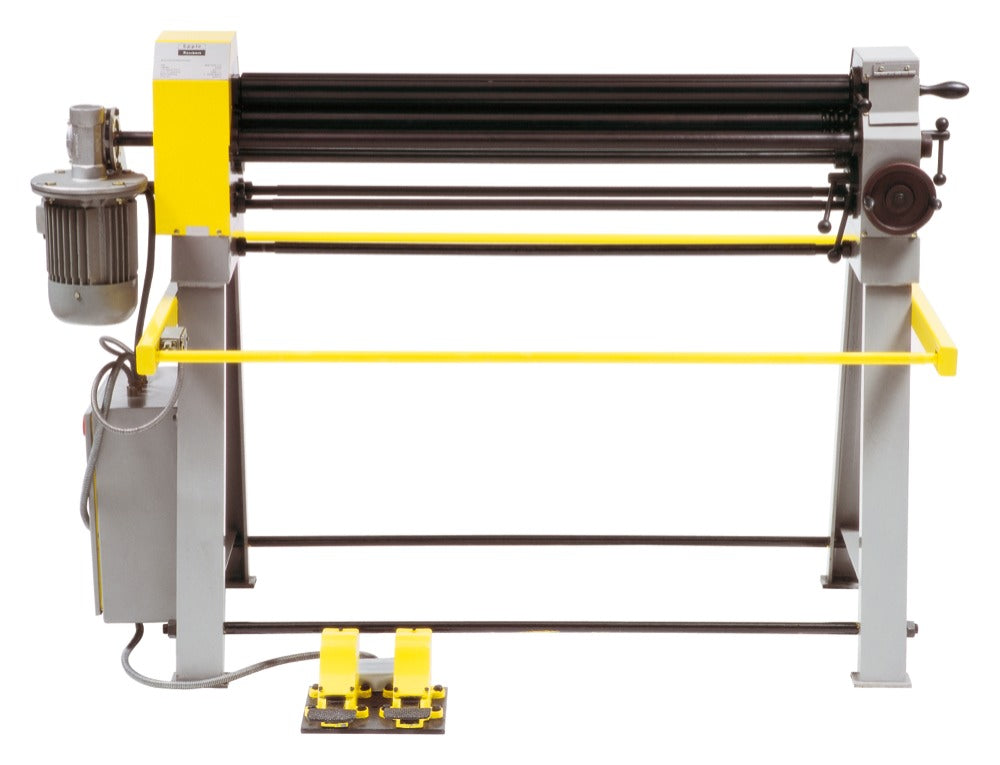

Three-roll round bending machine with electric motor and conical bending device, sheet thickness max. 1.5 mm
- Heavy, stable cast iron construction
- Rollers made of wear-resistant steel
- Asymmetric 3-roller system with swiveling top roller and eccentric lock
- Lower roller adjustment with adjusting lever and eccentric
- Rear roller adjustment via handwheel
- Bottom and rear roller with wire insert groove
- Wheel reduction
- Heavy, stable cast iron construction
- Rollers made of wear-resistant steel
- The foot control leaves both hands free for material handling
- Electric motor 400 V / 750 Watt with reduction gear
- Foot pedal for forward and reverse
- Safety barriers with emergency stop switch
Technical data
| Roller length |
1,020 mm |
| Sheet thickness (hardness ≤ 150 HB) |
1.5 mm |
| Roller diameter |
60 mm
|
| Minimum bending radius |
90 mm |
| Engine power |
400 V / 50 Hz / 750 watts |
| Dimensions (L x D x H) |
1,700 x 600 x 1,100 mm
|
| Weight |
260 kg |
| EAN |
4260364291377 |
