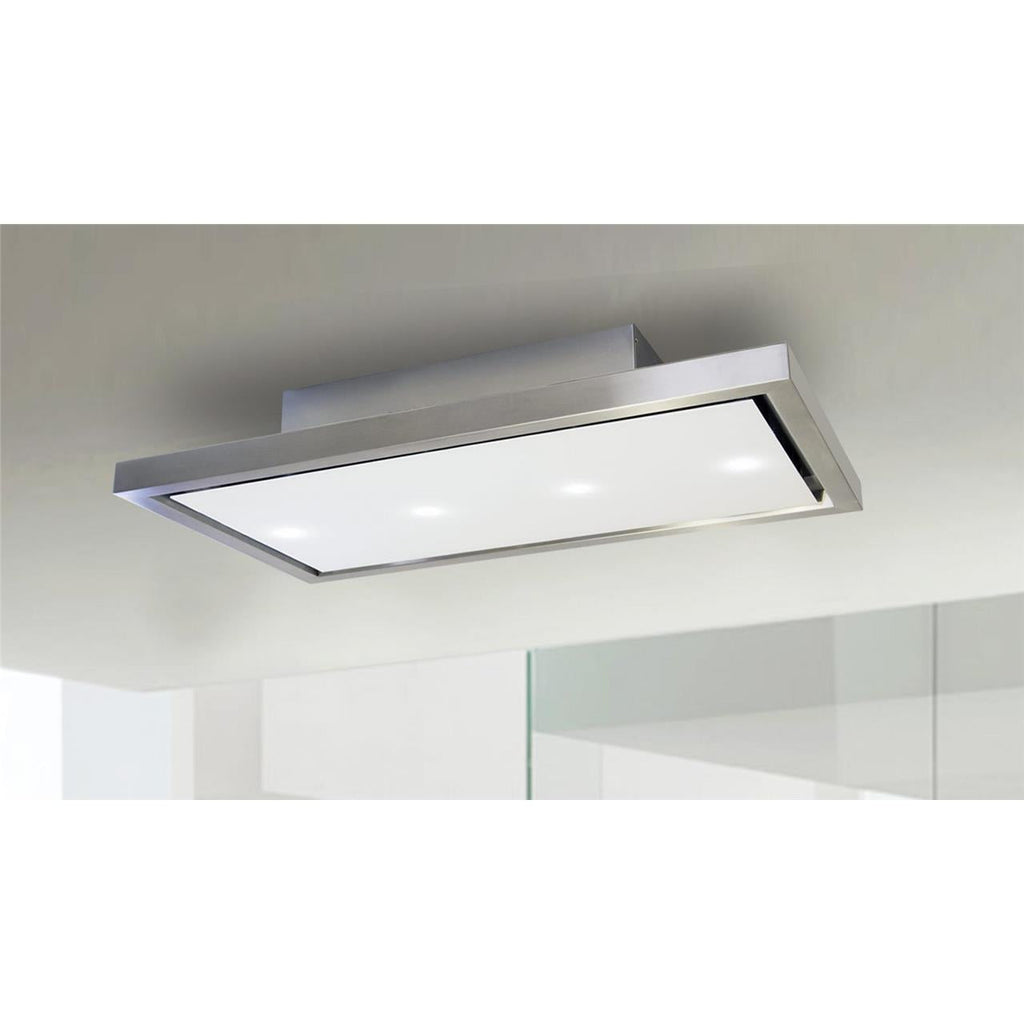

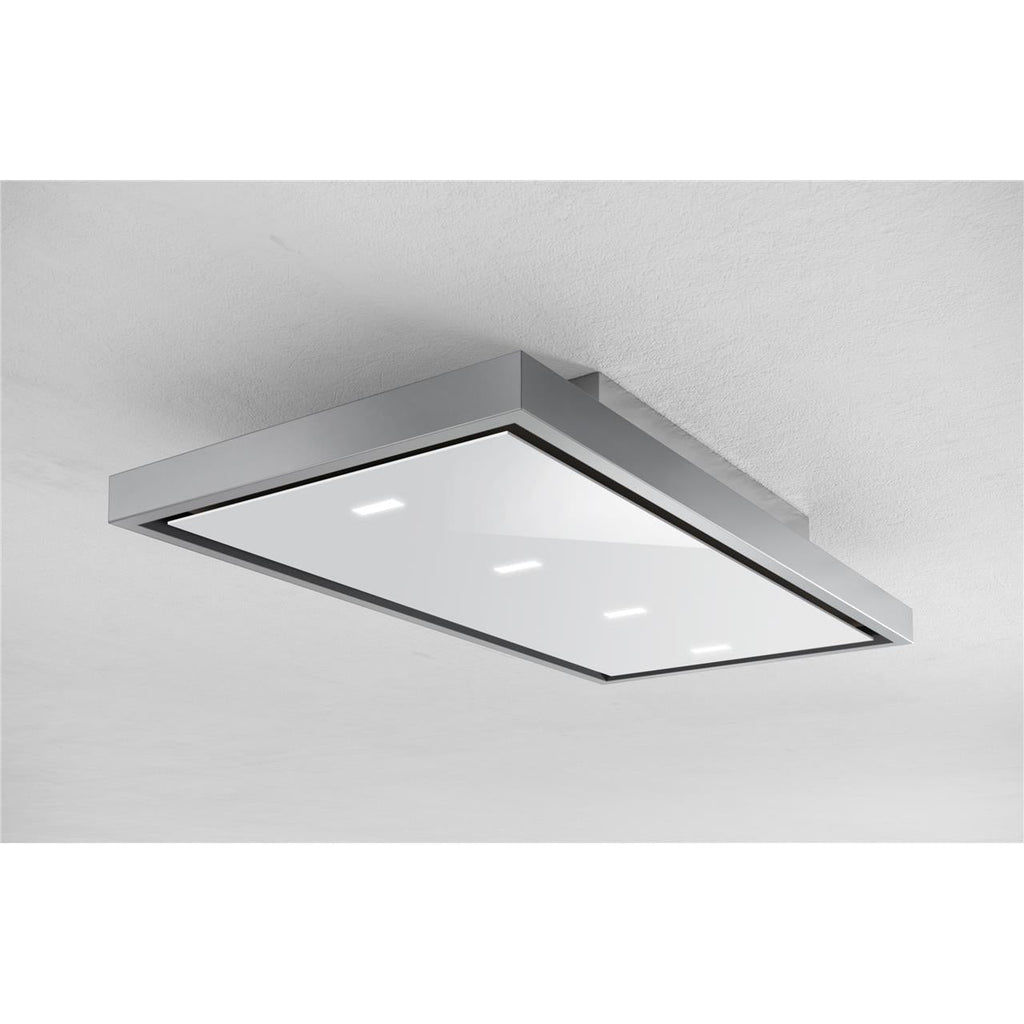

Exclusive ceiling fan ( only recirculation mode ) 6 cm thick stainless steel frame with white glass plate and integrated LED lighting
Edge extraction
Only suitable for recirculation mode
equipment
6 cm thick stainless steel frame
· 3 power levels including 1 turbo level
· LED lighting

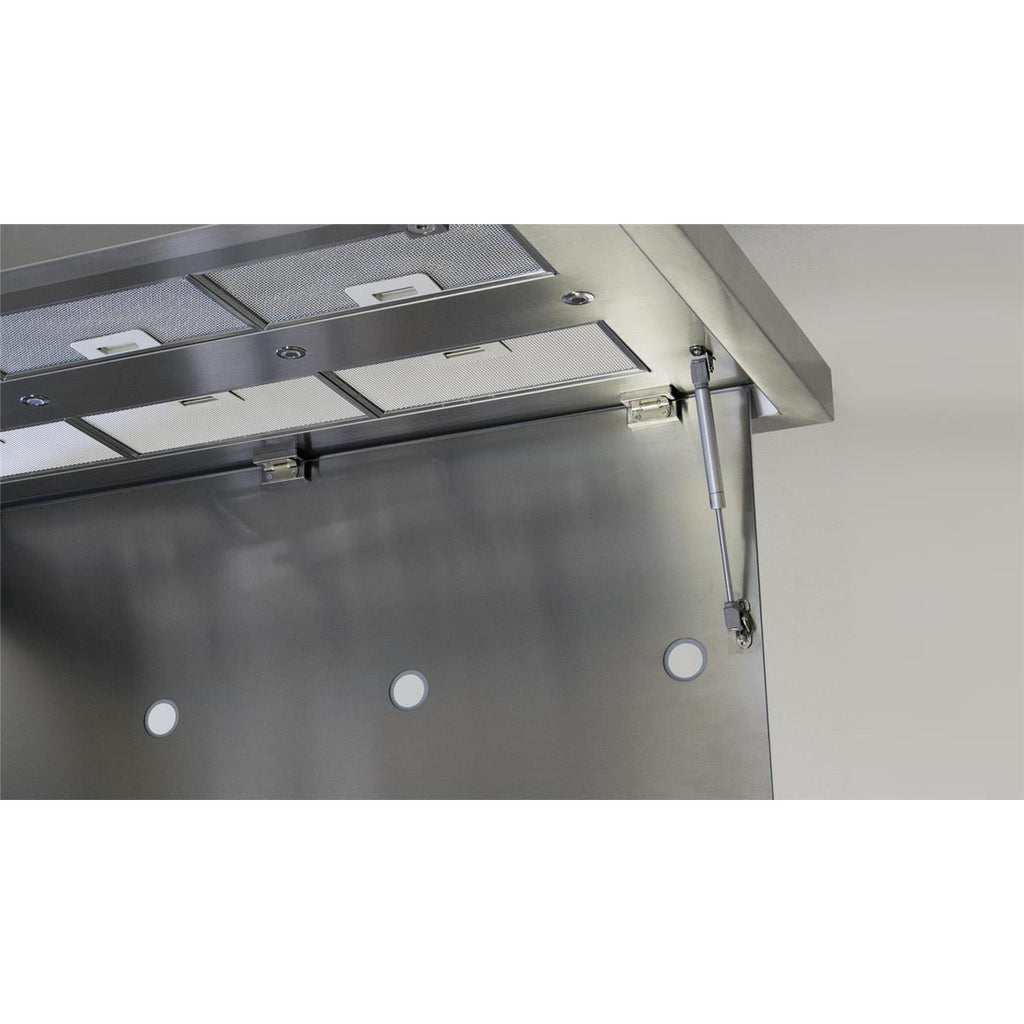

· Metal grease filter (dishwasher safe)
Filter saturation indicator

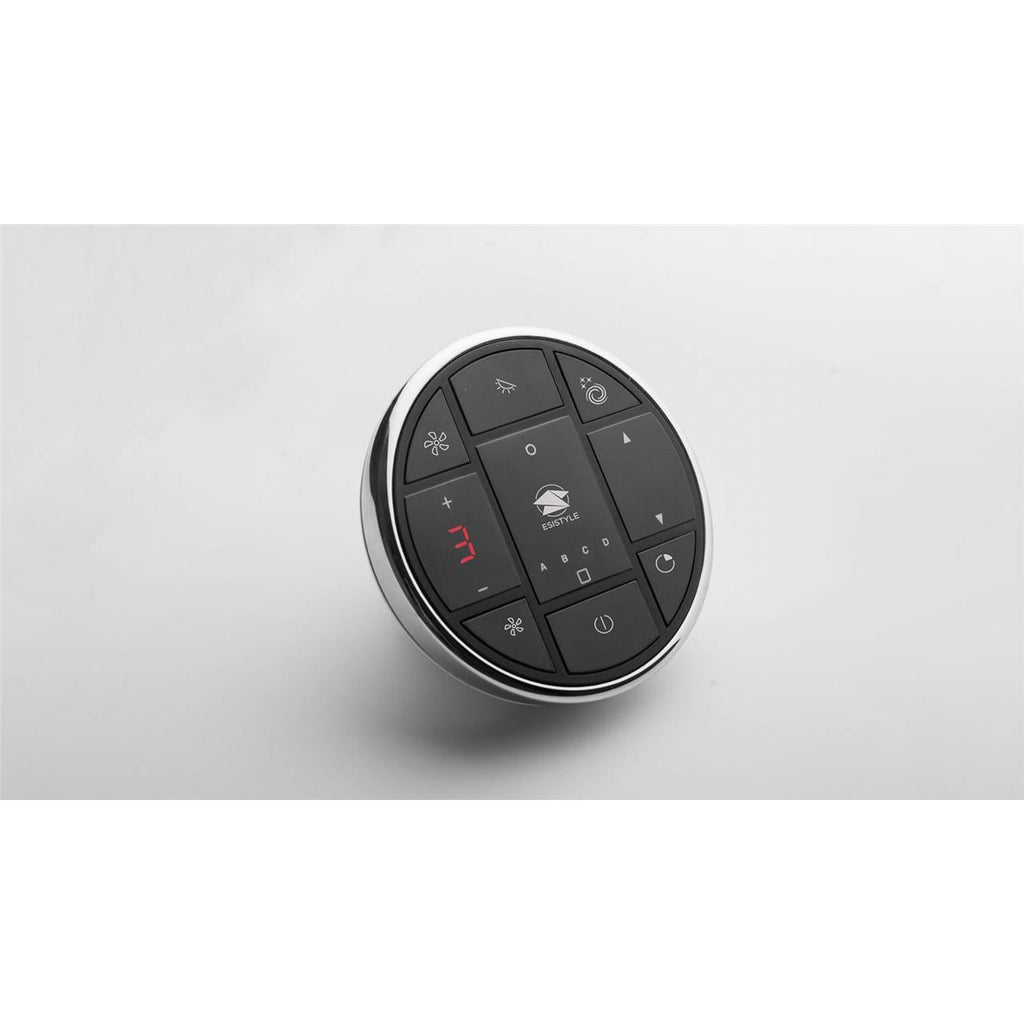

· Remote control
BT3 - 280 W motor
Fan power (according to EN 61591)
Min. - max. Fan performance: 293 m³ / h - 579 m³ / h
Turbo stage: 680 m³ / h
Noise levels (according to EN 60704)
min. 48 dB (A) - max. 65 dB (A)
Turbo level: 71 dB (A)
Maximum pressure: 450 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class B / 49
Annual consumption: 49 kWh / year
Fluid Dynamic Efficiency A / 28.1
Lighting efficiency A / 28
Grease filter efficiency C / 75.6
Noise levels 65 dB (A)
Power consumption in off state: 0 W
Power consumption in standby mode 0.49 W
Additional technical data
Time extension factor: 147
Air flow at point of maximum efficiency: 287 m³/h
Air pressure at the point of maximum efficiency: 428 Pa
Electrical input power at max. efficiency: 121.6 W
Rated power lighting system: 6.3 W
Average illuminance on the cooking surface: 177 lux
Connection
· Connected load: 265.6 W
Voltage 220 - 240 V / 50 Hz
· Exhaust air nozzle Ø 150 mm
Cable / without plug
Logistical data
Weight gross/net: 44.5 / 32.6 kg
Packaging dimensions WTH: 1000 x 705 x 410 mm
Device dimensions: 900 x 600 x 211 mm
