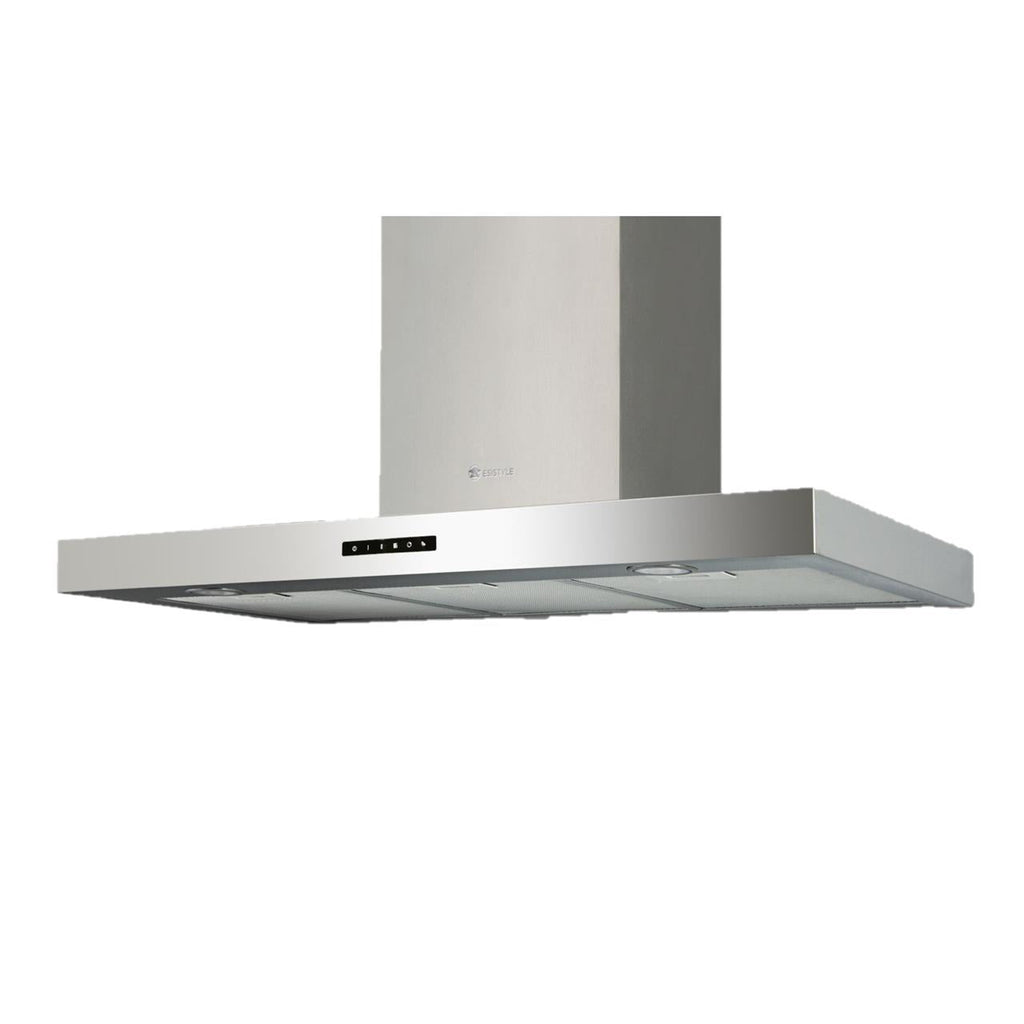

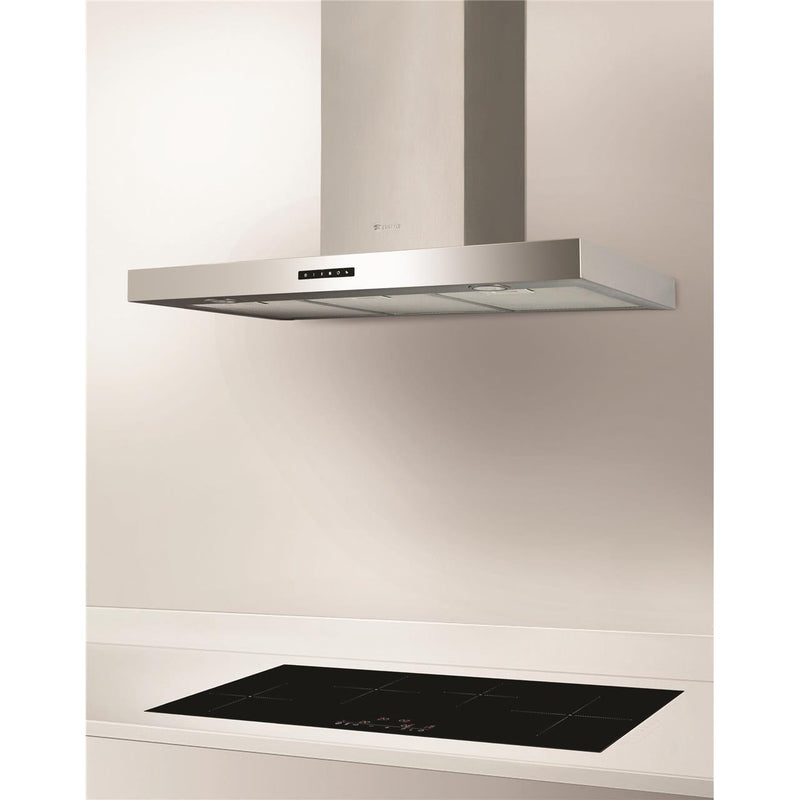

Elegant and robust STAINLESS STEEL wall hood
Edge extraction - Touch Control
front LED lighting for better
Illumination of the cooking surface
SCRATCH EXTRACTION
suitable for exhaust air and recirculation operation
equipment
· 6cm high hank body
· foldable metal flap
· »Touch Control« sensor buttons
· 3 power levels including turbo level
· front LED lighting (2 x 2.1 watts)
· Noise reduction system
· Aluminum filter
· large stainless steel shaft
· Motor tagential (T1):
Fan power (according to EN 61951)
Min. - max. Fan performance: 315 m³ / h - 642 m³ / h
Turbo stage: 781 m³ / h
Free air flow: 1,150 m³
Noise levels (according to EN 60704)
min. 43 dB - max. 62 dB
Turbo level: 66 dB
Maximum pressure: 474.2 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class A / 53.8
Annual consumption: 59.9 kWh / year
Fluid Dynamic Efficiency A / 31.4
Lighting efficiency A / 106
Grease filter efficiency B / 85.1
Noise levels 62 dB
Power consumption in off state: 0 W
Power consumption in standby mode 0.49 W
Additional technical data
Time extension factor: 0.9
Air flow at point of maximum efficiency: 436.5 m³/h
Air pressure at the point of maximum efficiency: 436.3 Pa
· Electrical input power at max. efficiency: 168.3 W
Rated power lighting system: 6.3 W
Average illuminance
on the cooking surface: 665 lux
Connection data
· Connected load: 274.2 W
Voltage: 220 - 240 V/ 50 - 60 Hz
Exhaust air nozzle: Ø 150 mm / Ø 125 mm
· Cable / connector
Logistical data
Weight gross/net: 34.5 / 27 kg
Packaging dimensions: 1315 x 625 x 605 mm
Number of hoods / pallet: 4
