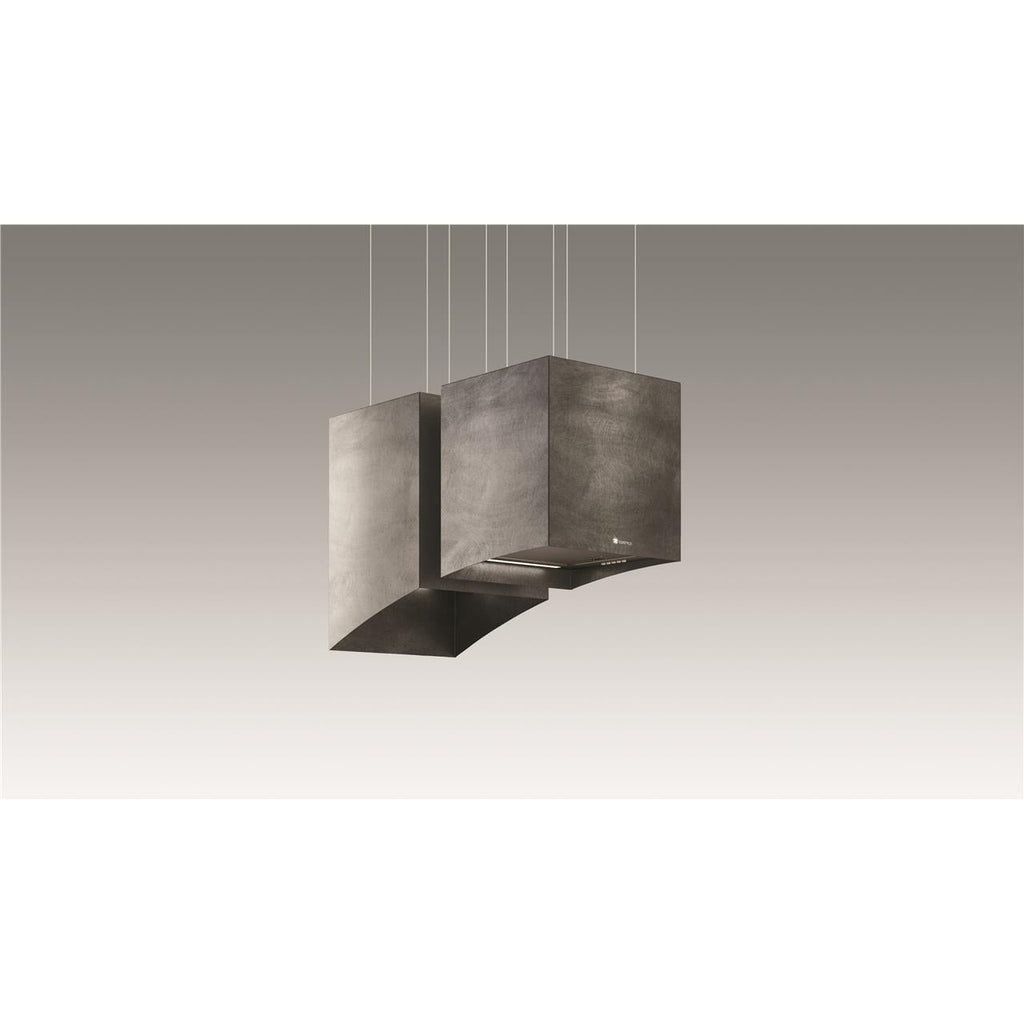

Elegant island hood - Ferro/Bronze
4 LED lights for optimal illumination of the
Cooking surface
Only suitable for recirculation mode
equipment
60 cm high hood body
· Mechanical control buttons
· 3 power levels plus turbo level
· Noise reduction system
LED lighting (4 x 2 watts)
· Metal grease filter (dishwasher safe)
· Engine - tagential (T1)
Fan power (according to EN 61951)
Min. - max. Fan performance: 271 m³ / h - 605 m³ / h
Turbo stage: 633 m³ / h
Free air flow: 1,150 m³
Noise levels (according to EN 60704)
min. 43 dB - max. 62 dB
Turbo level: 66 dB
Maximum pressure: 553 Pa (x2)
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class B
Annual consumption: 55 kWh / year
Fluid Dynamic Efficiency B / 30.2%
Lighting efficiency A / 113
Grease filter efficiency F / 89.4%
Noise levels 62 dB
Power consumption in standby mode 0.49 W
Additional technical data
Time extension factor: 0.9
Air flow at point of maximum efficiency: 329.4 m³/h
Air pressure at the point of maximum efficiency: 441.5 Pa
· Electrical input power at max. efficiency: 133.7 W
Rated power lighting system: 4 W
Average illuminance
on the cooking surface: 475 lux
Connection data
· Power consumption: 244 W
Voltage: 220 - 240 V/ 50 - 60 Hz
Exhaust air nozzle: Ø 150 mm / Ø 125 mm
· Cable / connector
Logistical data
Weight gross/net: 42 / 30 kg
Packaging dimensions: 929 x 729 x 524 mm
Number of hoods / pallet: 4
