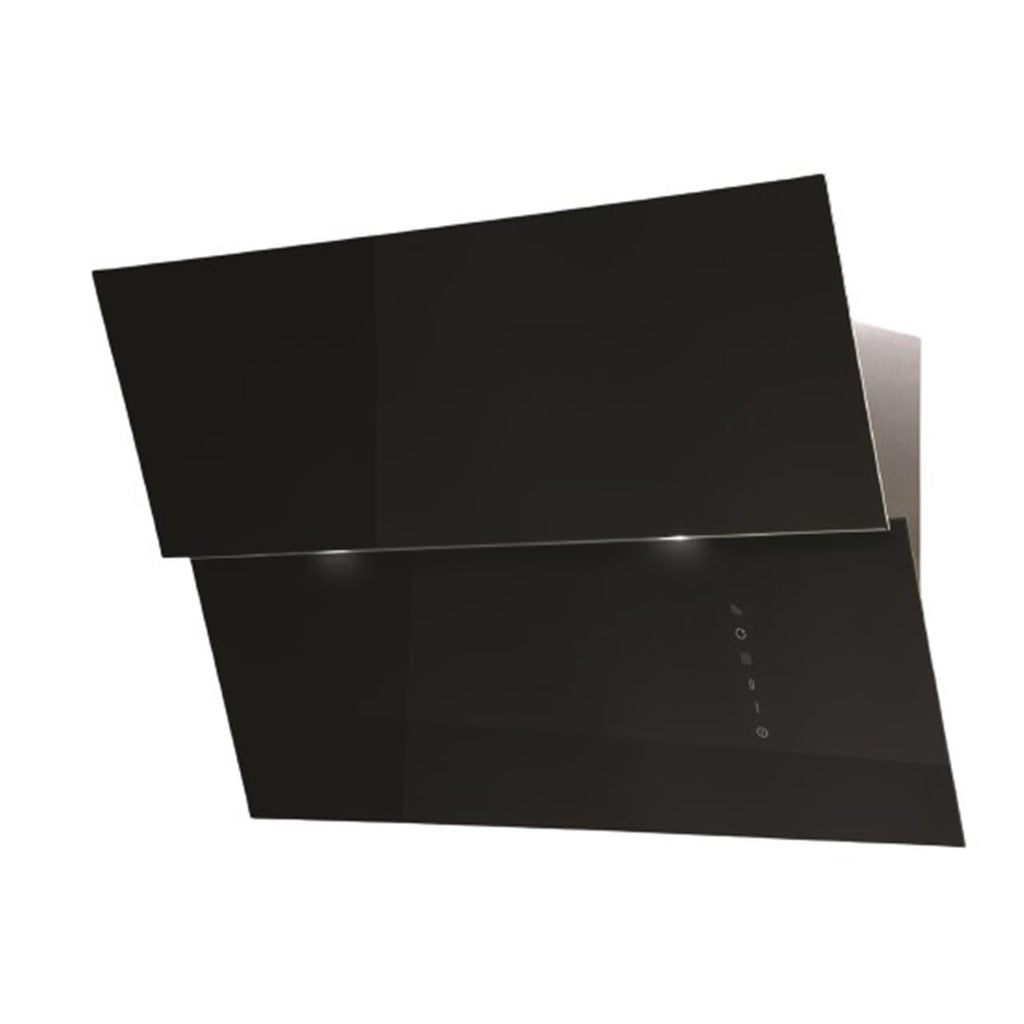

Minerva 700 BLACK
Powerful, elegant and very robust GLASS-STAINLESS STEEL wall hood
Edge extraction - Touch Control
Anti-condensation filter - lower glass hinged
Centrally positioned LED lighting for better illumination of the cooking surface
High grease filter efficiency 87.3%
EDGE SUCTION
suitable for exhaust air and recirculation operation
equipment

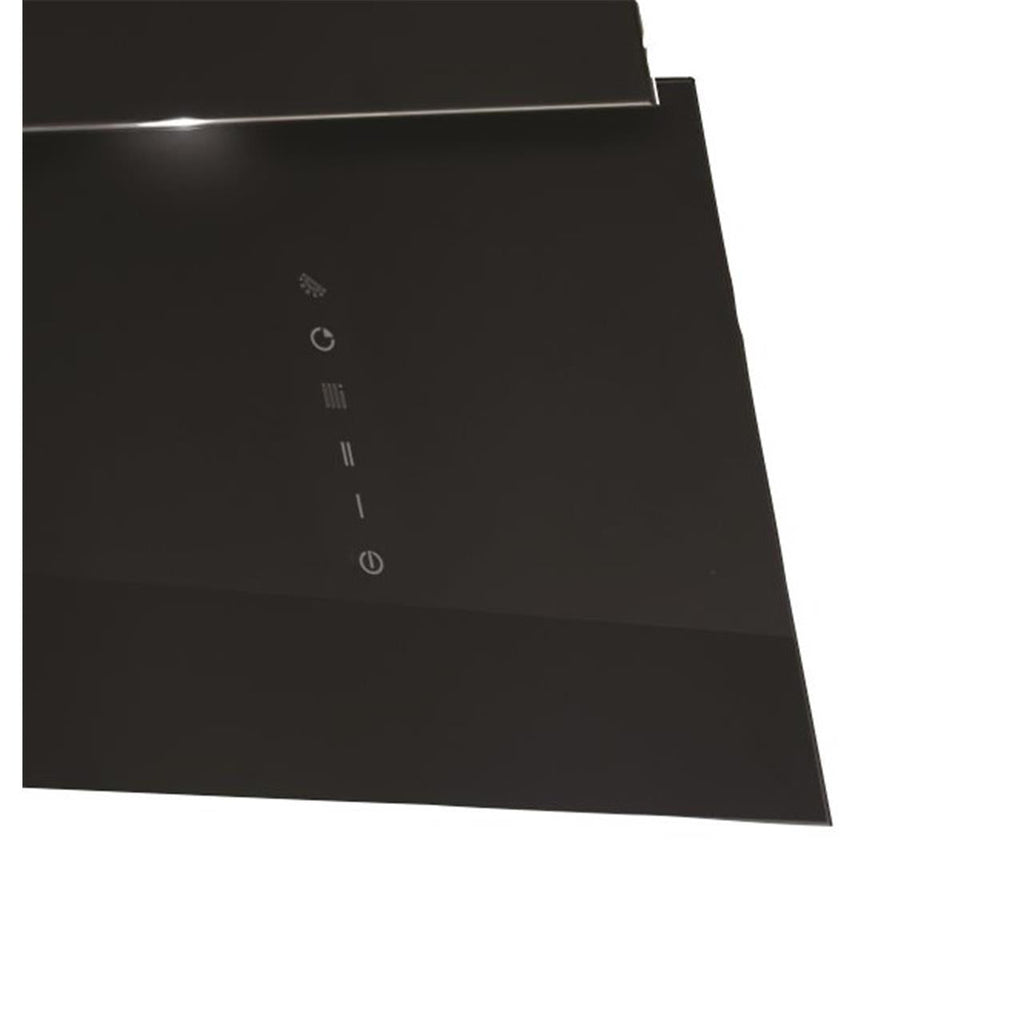

Touch Control
4 power levels including turbo level
Filter alarm
· LED lighting (2 x 1.2 watts) located in the middle (between the glass panels)
· Noise reduction system
· Metal grease filter (dishwasher safe)
· hinged lower glass flap (gas pressure spring)
Stainless steel chimney shaft - telescopic
Engine: TANGENTIAL T 7
Fan power (according to EN 61951)
Min. - max. Fan performance: 248 m³ / h - 434.0 m³ / h
Turbo stage: 752.0 m³ / h
Free air flow: 1,150 m³
Noise levels (according to EN 60704)
min. 41 dB - max. 53 dB
Turbo level: 65 dB
Maximum pressure: 546 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class A+ /39.8
Annual consumption: 35.6 kWh / year
Fluid Dynamic Efficiency A / 35
Lighting efficiency A / 127
Grease filter efficiency B / 87.3%
Noise levels 53 dB
Power consumption in off state: 0 W
Power consumption in standby mode 0.49 W
Additional technical data
Time extension factor: 14
Air flow at point of maximum efficiency: 366.4 m³/h
Air pressure at the point of maximum efficiency: 452.0 Pa
· Electrical input power at max. efficiency: 132 W
Rated power lighting system: 2.4 W
Average illuminance on the cooking surface: 305 lux
Connection data
· Connected load: 274.4 W
Voltage: 220 - 240 V/ 50 Hz
Exhaust air nozzle: Ø 150 mm
Cable / Plug Yes / Yes
Logistical data
Weight gross/net: 26 / 21 kg
Device dimensions: 698 x 448 x 485 mm
Packaging dimensions: 910 x 610 x 580 mm
Including anti-condensation filter:
Directs cooking fumes below the hood to the fan motor
Optional accessories
Set of activated carbon filters (2 pieces)
Item No. E398000049
· PLASMA FILTER KIT
Item No. E750000129
