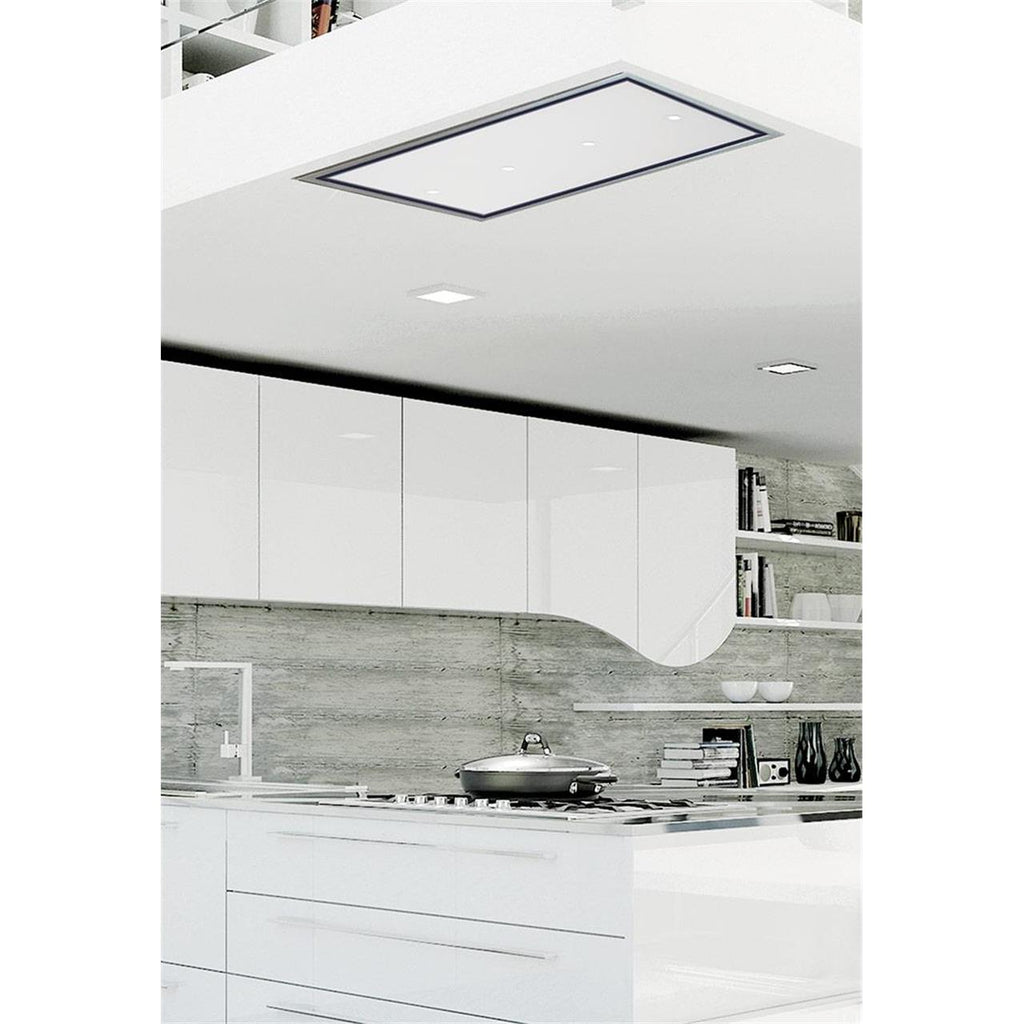

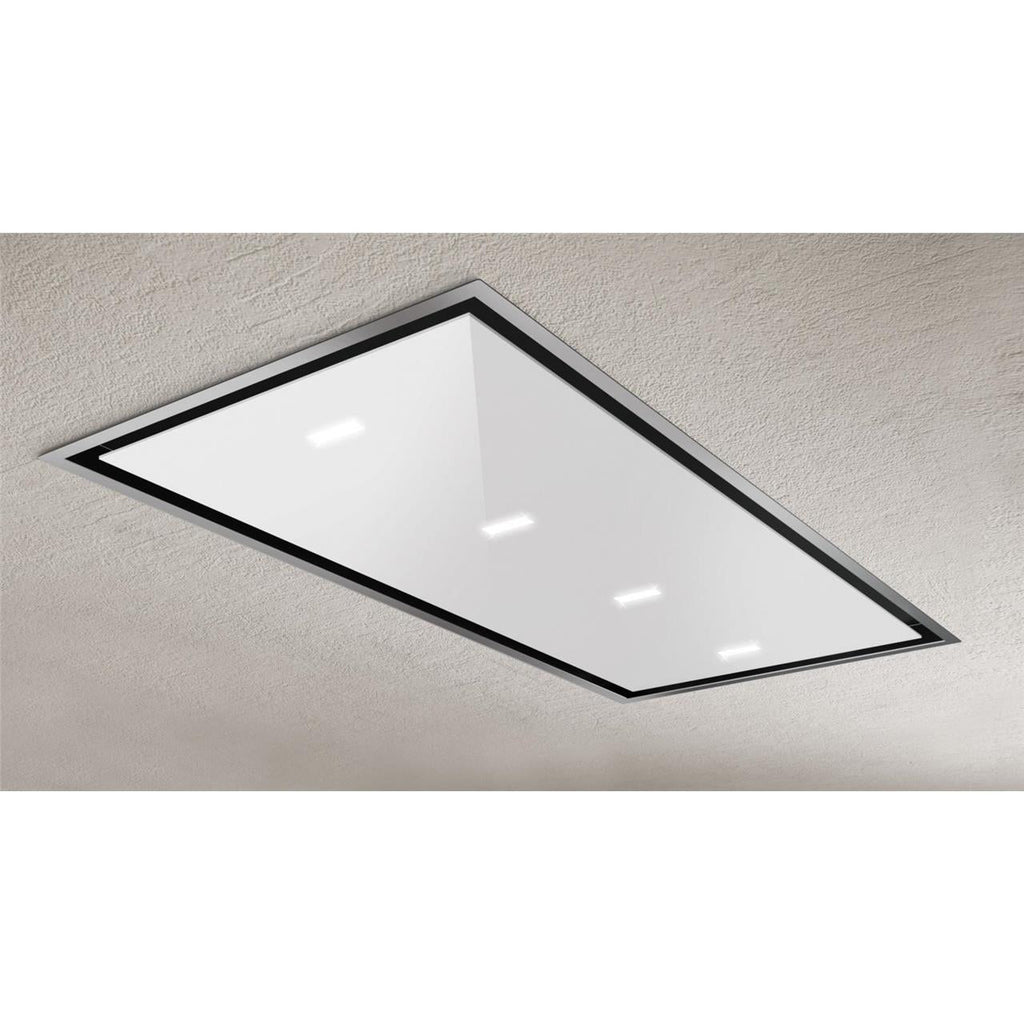

Elegant exclusive ceiling fan with stainless steel frame -
white hinged glass top with LED lighting
powerful, efficient engine
Edge extraction
suitable for exhaust air and recirculation operation
equipment

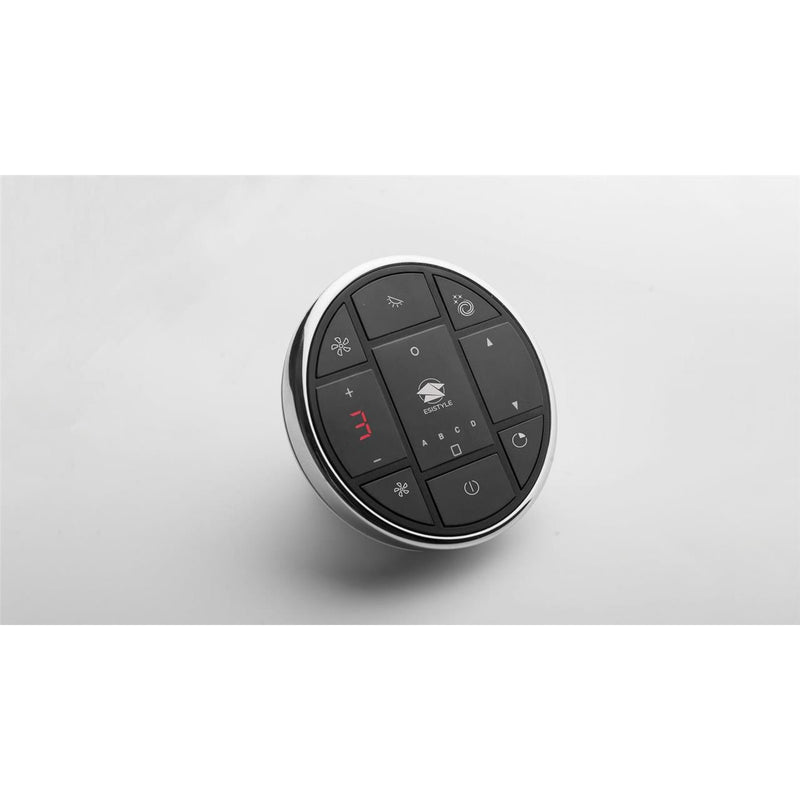

· Remote control
· 3 power levels including 1 turbo level
LED lighting (4 x 2.2 watts)

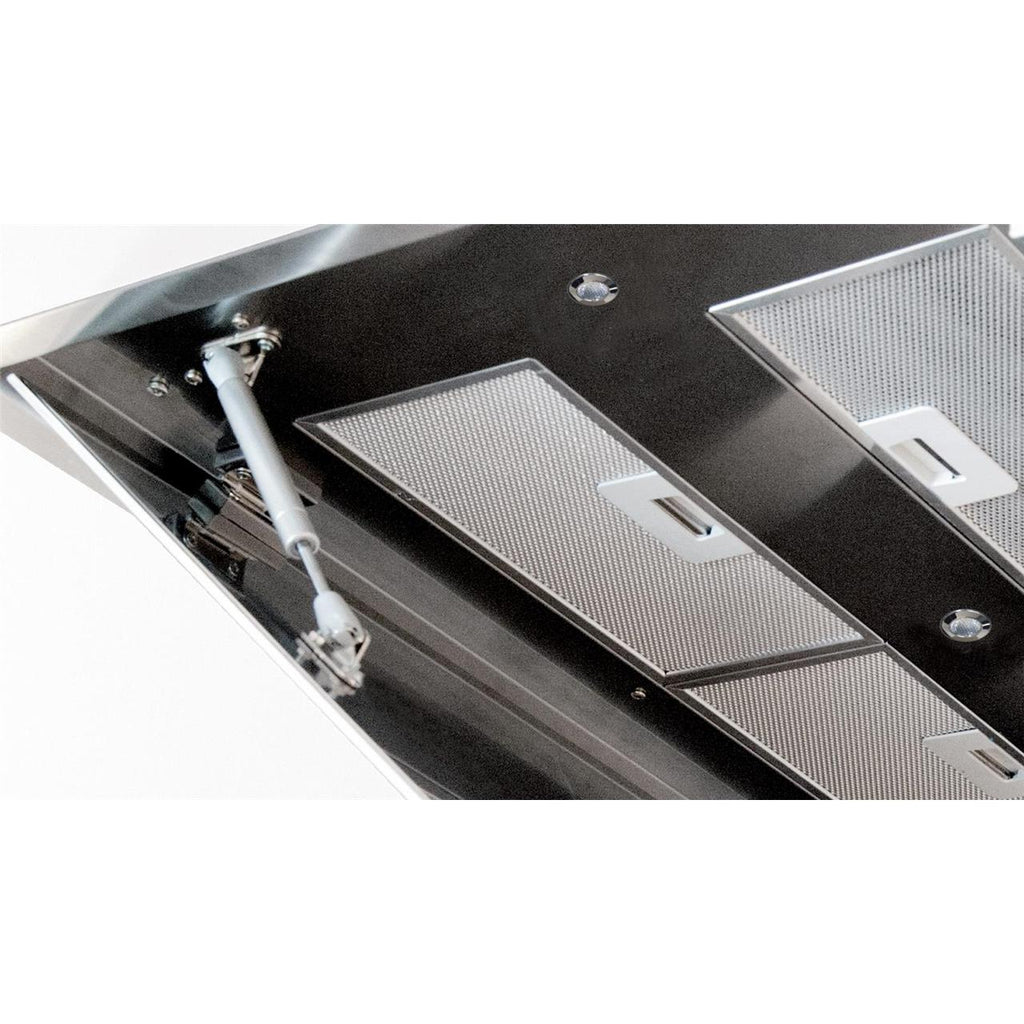

· Metal grease filter (dishwasher safe) EEF-KL-E
Filter saturation indicator
BT3 - 280 W motor
Fan power (according to EN 61591)
Min. - max. Fan performance: 282.1 m³ / h - 567.3 m³ / h
Turbo stage: 755.2 m³ / h
Noise levels (according to EN 60704)
min. 48 dB (A) - max. 67 dB (A)
Turbo level: 71 dB (A)
Maximum pressure: 450 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class A++ / 32.9
Annual consumption: 34 kWh / year
Fluid Dynamic Efficiency A / 40.9
Lighting efficiency A / 56
Grease filter efficiency C / 58.8
Noise levels 67 dB (A)
Power consumption in off state: 0 W
Power consumption in standby mode 0.49 W
Additional technical data
Time extension factor: 32
Air flow at point of maximum efficiency: 369.2 m³/h
Air pressure at the point of maximum efficiency: 505.4 Pa
Electrical input power at max. efficiency: 126.7 W
· Rated power lighting system: 8.8 W
Average illuminance
on the cooking surface: 489 lux
Connection
· Connected load: 294 W
Voltage 220 - 240 V / 50 Hz
· Exhaust air nozzle Ø 150 mm
Logistical data
Weight gross/net: 34 / 36 kg
Packaging dimensions WTH: 1295x705x410 mm
