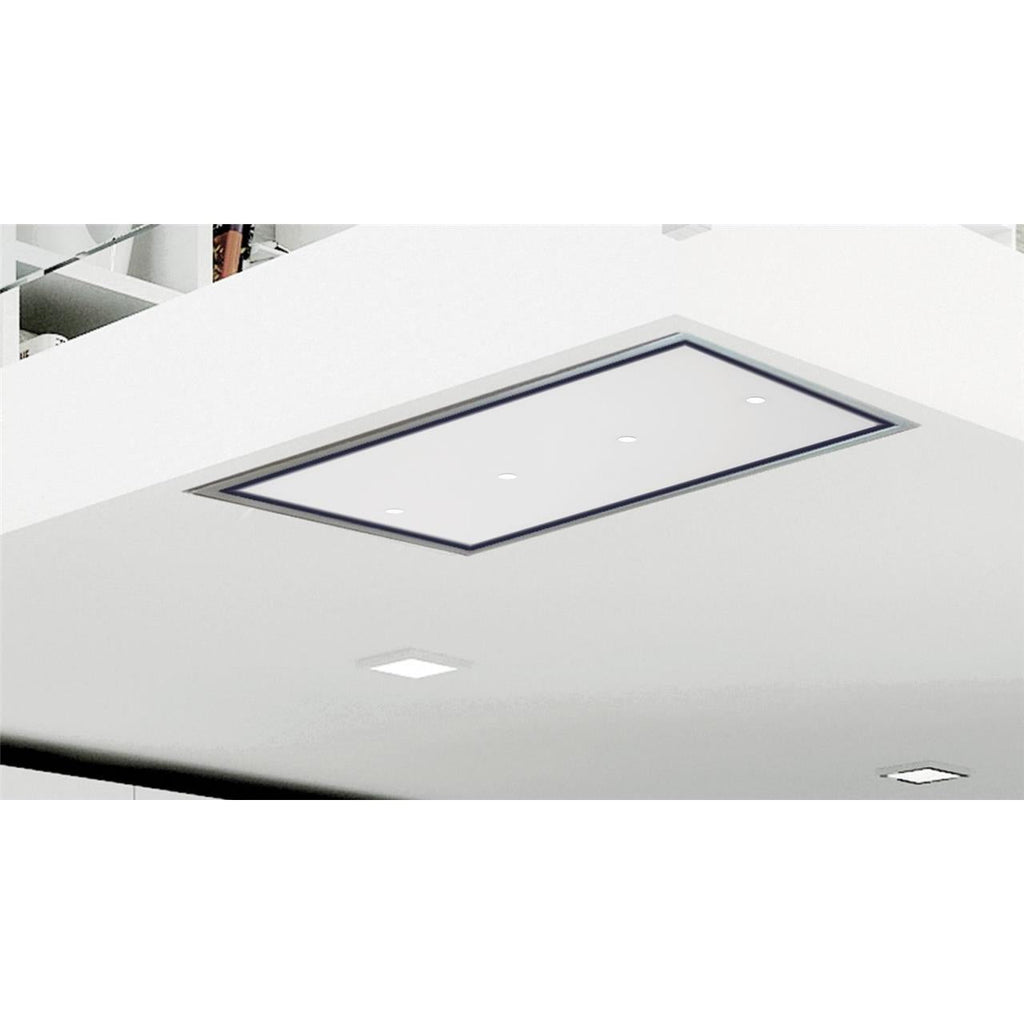

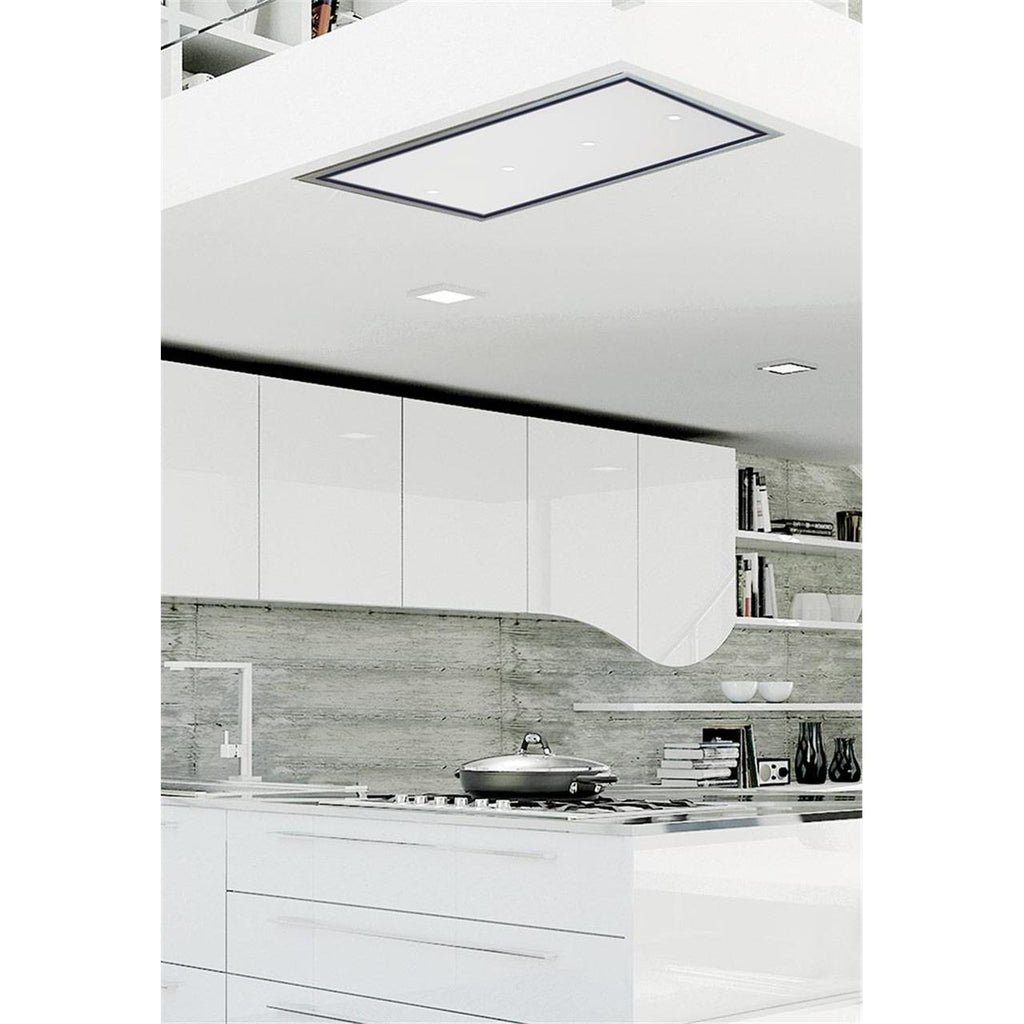

Elegant exclusive ceiling fan with stainless steel frame - 90 cm -
white hinged glass top with LED lighting - EEK: A++
powerful, efficient engine
Edge extraction
suitable for exhaust air and recirculation operation
equipment

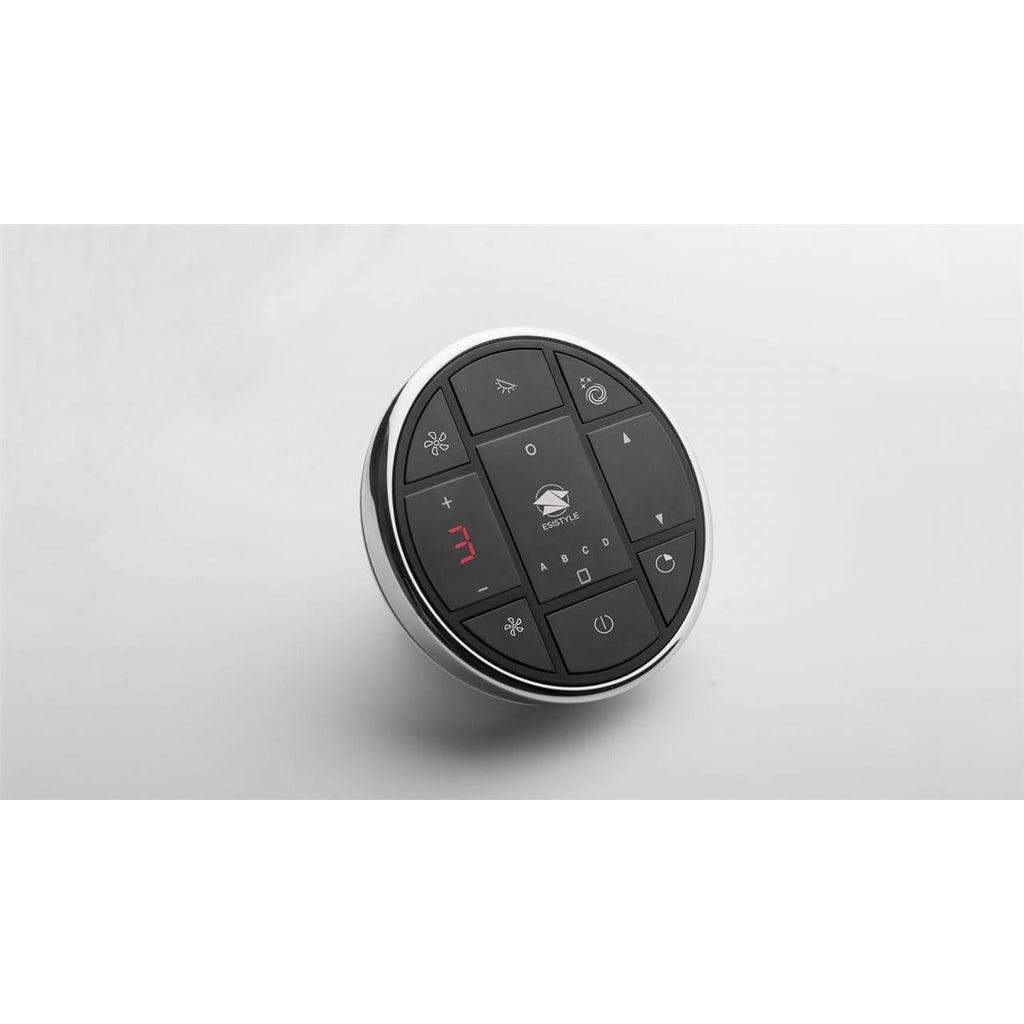

· Remote control
· 3 power levels including 1 turbo level
LED lighting (3 x 2.2 watts)

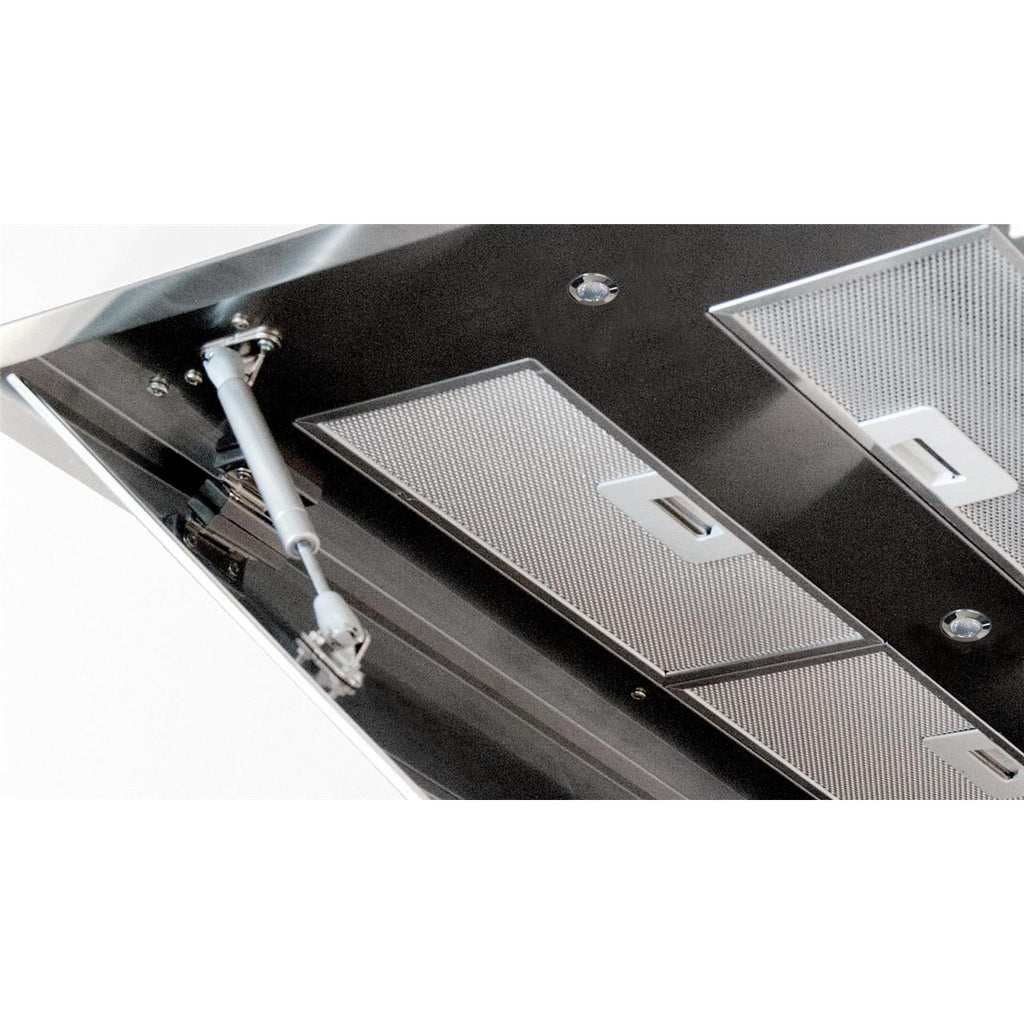

· Metal grease filter (dishwasher safe) EEF-KL-E
Filter saturation indicator
BT3 - 280 W motor
Fan power (according to EN 61591)
Min. - max. Fan performance: 279 m³ / h - 562 m³ / h
Turbo stage: 748m³ / h
Noise levels (according to EN 60704)
min. 48 dB (A) - max. 67 dB (A)
Turbo level: 71 dB (A)
Maximum pressure: 540 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class A++ / 31.5
Annual consumption: 34 kWh / year
Fluid Dynamic Efficiency A / 40.6
Lighting efficiency A / 68
Grease filter efficiency C / 58.8
Noise levels 67 dB (A)
Power consumption in off state: 0 W
Power consumption in standby mode 0.49 W
Additional technical data
Time extension factor: 44
Air flow at point of maximum efficiency: 365 m³/h
Air pressure at the point of maximum efficiency: 500 Pa
Electrical input power at max. efficiency: 125 W
Rated power lighting system: 6.6 W
Average illuminance
on the cooking surface: 446 lux
Connection
· Power consumption: 256.6 W
Voltage 220 - 240 V / 50 Hz
· Exhaust air nozzle Ø 150 mm
Logistical data
Weight gross/net: 29.8 / 22.3 kg
Packaging dimensions WTH: 1295x705x41 mm
Device dimensions: 1000x705x410 mm
