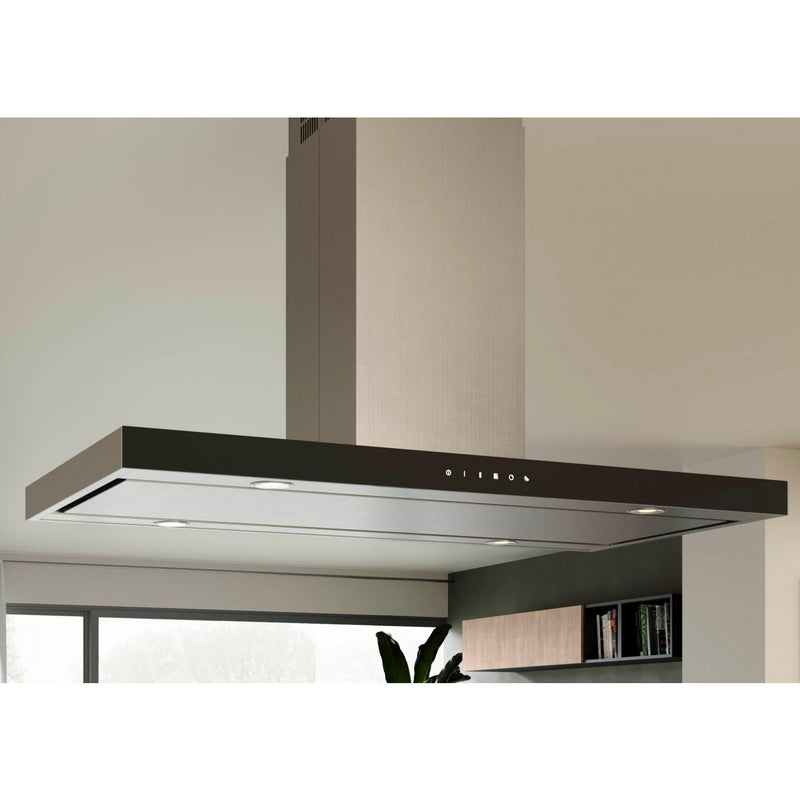

Robust island hood - stainless steel - glass design 90 cm wide
6 cm high stainless steel handrail body with 4 LED lights
Edge extraction - efficient motor, powerful and quiet
suitable for exhaust air and recirculation operation
equipment
6 cm high hank body
· foldable metal plate

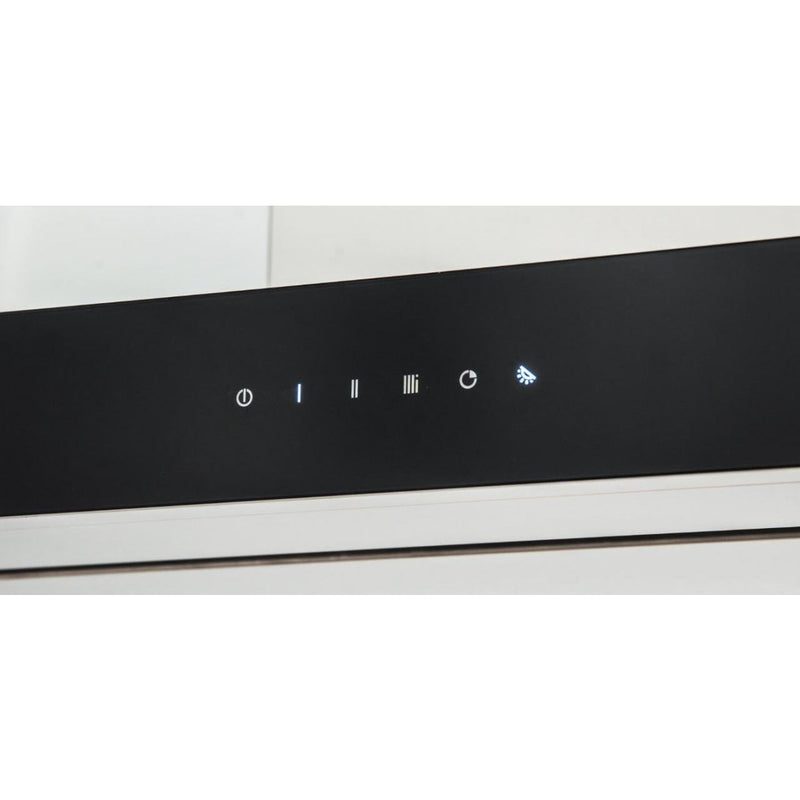

· »Touch Control« sensor buttons
· 3 power levels including turbo level
LED lighting (4 x 2.1 watts)
· Noise reduction system
· Metal grease filter (dishwasher safe)
Filter alarm
Engine:
Fan power (according to EN 61951)
Min. - max. Fan performance: 280 m³ / h - 570 m³ / h
Turbo stage: 758 m³ / h
Noise levels (according to EN 60704)
min. 43 dB - max. 62 dB
Turbo level: 66 dB
Maximum pressure: 479 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class A+
Annual consumption: 41 kWh / year
Fluid Dynamic Efficiency A / 35.3
Lighting efficiency A / 113
Grease filter efficiency A / 86.4
Noise levels 56 dB
Power consumption in off state: 0 W
Power consumption in standby mode 0.49 W
Additional technical data
Time extension factor: 140
Air flow at point of maximum efficiency: 358.2 m³/h
Air pressure at the point of maximum efficiency: 479 Pa
· Electrical input power at max. efficiency: 135 W
Rated power lighting system: 4.2 W
Average illuminance
on the cooking surface: 475 lux
Optional accessories
· Plasma filter item no. E750000129
· Activated carbon filter item no. E398000049
· Remote control item no. E502000016
Connection data
· Connected load: 137 W
Voltage: 220 - 240 V/ 50 Hz
Exhaust air nozzle: Ø 150 mm / Ø 125 mm
· Cable / connector
Logistical data
Weight gross/net: 41 / 36 kg
Packaging dimensions: 1004 x 719 x 470
Device dimensions: 900 x 608
