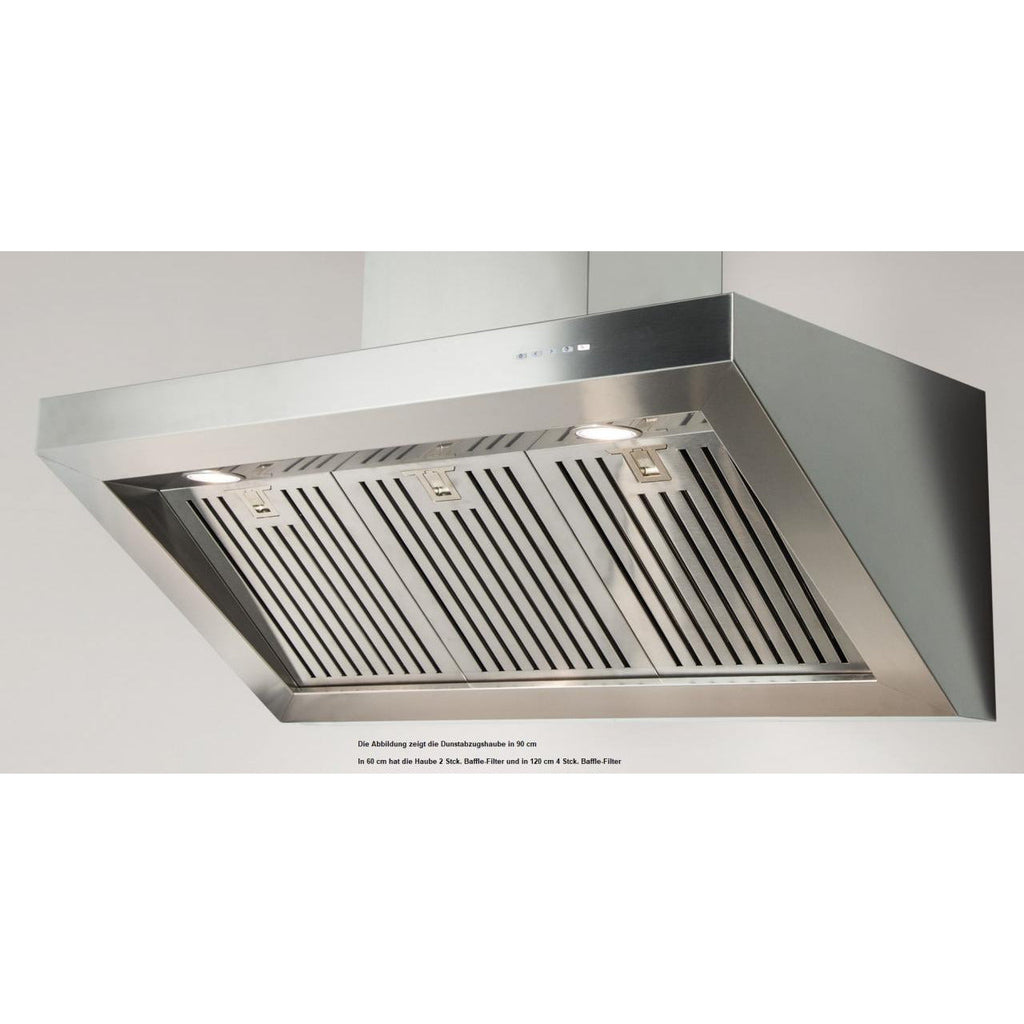

Professional wall hood 120cm
Front LED lighting with baffle filter
powerful with quiet motor
suitable for exhaust air and recirculation operation
equipment
· Robust stainless steel housing
· Push-button operation with backlight
· 3 power levels including turbo level
· front LED lighting (3 x 2.1 watts)
· Noise reduction system
Baffle metal grease filter (dishwasher safe)
Filter alarm
Stainless steel chimney
· Motor Tangential (T7):
Fan power (according to EN 61951)
Min. - max. Fan performance: 256 m³ / h - 433 m³ / h
Turbo stage: 799 m³ / h
Noise levels (according to EN 60704)
min. 41 dB - max. 53 dB
Turbo level: 67 dB
Maximum pressure: 489 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class A+
Annual consumption: 40.4 kWh / year
Fluid Dynamic Efficiency A / 37.2
Lighting efficiency A / 28
Grease filter efficiency C / 75.3
Noise levels 53 dB
Power consumption in off state: 0 W
Power consumption in standby mode 0.49 W
Additional technical data
Time extension factor: 146
Air flow at point of maximum efficiency: 383 m³/h
Air pressure at the point of maximum efficiency: 489 Pa
· Electrical input power at max. efficiency: 140 W
Rated power lighting system: 6.3 W
Average illuminance
on the cooking surface: 177 lux
Optional accessories
· Plasma filter item no. E750000129
· Activated carbon filter item no. E398000049
· Remote control item no. E502000016
Connection data
· Connected load: 276.3 W
Voltage: 220 - 240 V/ 50 Hz
Exhaust air nozzle: Ø 150 mm / Ø 125 mm
· Cable / connector
Logistical data
Weight gross/net: 28.3 / 23.6 kg
Packaging dimensions: 1000 x 460 x 610 mm
