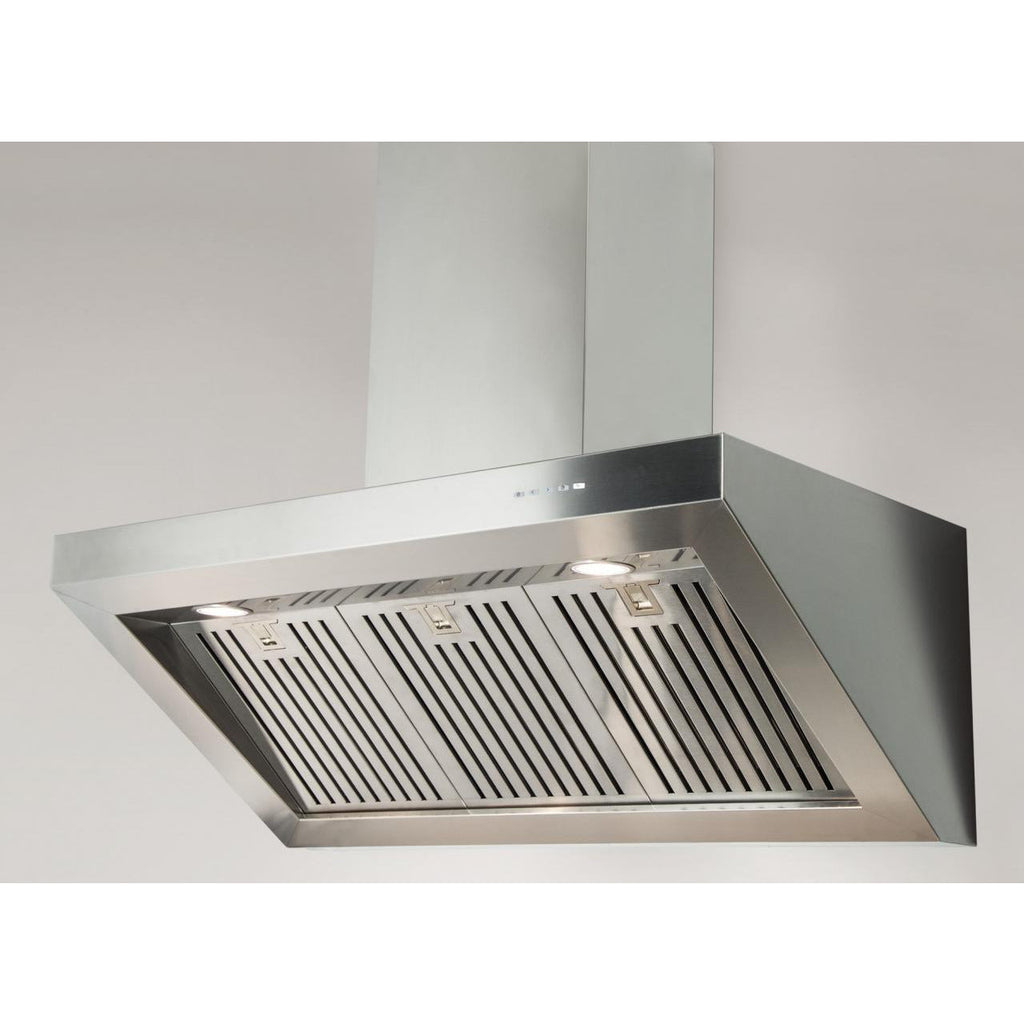

Professional wall hood 90cm
Front LED lighting with baffle filter
powerful with quiet motor
suitable for exhaust air and recirculation operation
equipment
· Robust stainless steel housing
· Push-button operation with backlight
· 3 power levels including turbo level
· front LED lighting (2 x 2.1 watts)
· Noise reduction system
Baffle metal grease filter (dishwasher safe)
Filter alarm
· Stainless steel chimney
· Motor Tangential (T7):
Fan power (according to EN 61951)
Min. - max. Fan performance: 253 m³ / h - 429 m³ / h
Turbo stage: 791 m³ / h
Noise levels (according to EN 60704)
min. 41 dB - max. 53 dB
Turbo level: 67 dB
Maximum pressure: 484 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class A+
Annual consumption: 38.6 kWh / year
Fluid Dynamic Efficiency A /36.7
Lighting efficiency A / 42
Grease filter efficiency C / 75.3
Noise levels 53 dB
Power consumption in off state: 0 W
Power consumption in standby mode 0.49 W
Additional technical data
Time extension factor: 145
Air flow at point of maximum efficiency: 379 m³/h
Air pressure at the point of maximum efficiency: 484 Pa
· Electrical input power at max. efficiency: 139 W
· Rated power lighting system: 4.2 W
Average illuminance
on the cooking surface: 177 lux
Optional accessories
· Plasma filter item no. E750000129
· Activated carbon filter item no. E398000049
· Remote control item no. E502000016
Connection data
· Connected load: 274.2 W
Voltage: 220 - 240 V/ 50 Hz
Exhaust air nozzle: Ø 150 mm / Ø 125 mm
· Cable / connector
Logistical data
Weight gross/net: 25.5 / 20 kg
Packaging dimensions: 1000 x 460 x 610 mm
