Description
HWF 10x/22 mm eyepieces
Binocular head, 30° inclined tubes. Tubes can be positioned at the top or bottom.
Interpupillary distance: 50–75 mm
Diopter adjustment on both eyepieces
Reverse 5-shot revolver with ball bearings
Plan PL 4x, 10x, S40x, S100x Oil Immersion IOS Lenses with Infinite Correction
All lenses are treated with antifungal agents and anti-reflective coatings for maximum light transmission.
150 x 140 mm object stage with 76 x 50 mm mechanical object stage
Coaxial coarse and fine adjustment with 200 graduations. Precision: 1 μm, 0.2 mm per revolution. Total stroke: approx. 28 mm
Height-adjustable Abbe condenser NA 1.25 with iris diaphragm and filter holder
Condenser with slot for optional slider with darkfield or phase contrast
Transmitted light output: 3 W NeoLED™ Köhler lighting with adjustable intensity and internal power supply (100–240 V, CE)
455 nm LED incident light illuminator attachment with a single cube and filters for Auramine-O-Fluorochrome EX 425–475 DM 485 EM 495 LP. External power supply.
Supplied with power cord, dust cover and 5ml oil immersion in a styrofoam case.

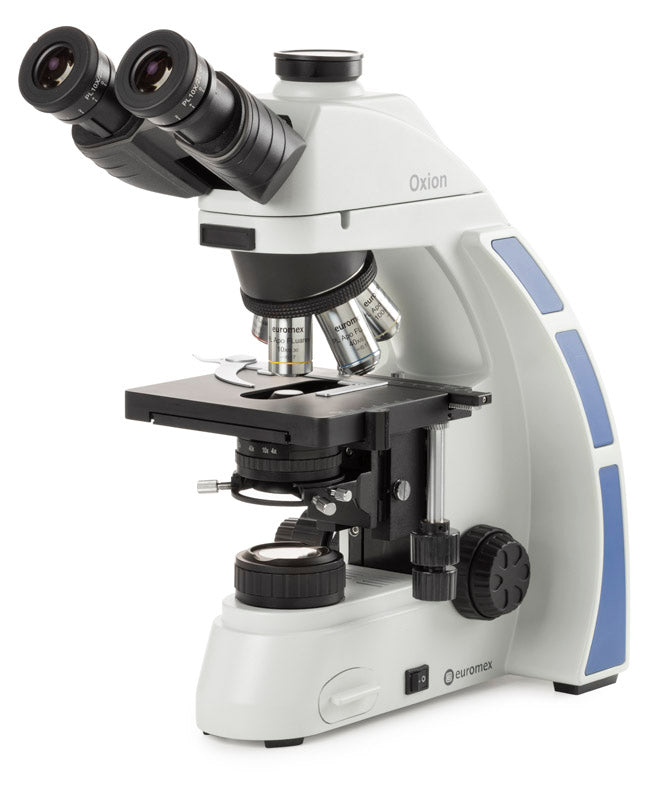

Oxion
The Oxion series is designed for all types of life science applications. This results in a modern, robust, and high-quality microscope for everyday use. Equipped with excellent optical and mechanical components, and with particular attention to production methods, it also offers outstanding value for money.
The Oxion series microscopes are ideal for professionals in life science applications, laboratories, universities, and research centers, but are also suitable for routine medical applications and veterinary medicine. In addition to brightfield contrast, configurations with darkfield contrast or simple polarization are available.
Thanks to their high-resolution optics and state-of-the-art components, these microscopes can be used for everything from routine to basic research applications.
Available functions
Important characteristics
- HWF 10x/22 mm eyepieces
- Binary and trino systems
- Height-adjustable ergonomic head (optional)
- Inverted lens turret for 5 lenses
- Semi-plan and planar IOS lenses
- 150 x 140 mm table
- Ergonomic tripods
- 3W NeoLED™ illumination for brightfield
- Abbe condenser
- 10-year warranty
OCLEAR
• HWF eyepieces 10x/22 mm with ± 5° diopter adjustment on both eyepieces
• All eyepieces can be attached with an Allen screw.
HEAD
• Binocular and trinocular Siedentopf heads with 30° inclined tube
• Interpupillary distance of 50 to 75 mm
• A unique rotation system allows for ergonomic positioning of both tubes into an upper (431 mm) and lower position (397 mm)
• The multihead systems are available with 2, 3 or 5 heads.
• Height-adjustable ergonomic head (height adjustment between 397 and 431 mm) available
REVOLVER
Inverted lens turret for 5 lenses
LENSES - IOS INFINITELY CORRECTED
• Semi Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 Immersion Oil IOS Lenses
• Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 immersion oil IOS objectives standard, optional 20x/0.40 and S60x/0.85 objectives
• Plan Phase Contrast S40x/0.65 and S100x/1.25 Immersion Oil IOS Lenses
• Plan semi-apochromatic Fluarex 10x/0.25, S40x/0.65 and S100x/1.25 immersion oil IOS objectives standard, optional 20x/0.50 objectives
Optionally available: Plan 20x / 0.40 infinity corrected IOS lens and Plan S60x / 0.85 infinity corrected IOS lens
All S40x, S60x and S100x immersion oil lenses are spring-loaded.
All lenses are anti-reflective and anti-fungal treated for maximum and lasting light transmission.
OBJECT TABLE
Designed for 2 slides
• Object stage 50 x 140 mm with integrated 76 x 50 mm cross stage
• The Oxion can be supplied with a heated stage with PID temperature controller adjustable up to 50 degrees Celsius (only available for new microscopes).
CONDENSER FOR BRIGHT FIELD
• Height-adjustable NA 1.25 Abbe condenser with iris diaphragm
• Slider with a simple darkfield stop available for darkfield up to 400x magnification
FOCUS ADJUSTMENT
• Coaxial coarse and fine adjustment, 200 μm fine adjustment, 2 μm accuracy, 200 μm per revolution, total approx. 28 mm
• Specimen protection to prevent damage to the lens and specimen
• Friction adjustment
LIGHTING FOR HELLFELD
• All models come with a 3W adjustable NeoLED™ light with integrated 100-240V power supply.
• Köhler lighting with field diaphragm
STORAGE AND TRANSPORT
From left to right: OX.3011 - AE.9916
PACKAGING
Includes dust cover, instruction manual and 5 ml immersion oil for models with S100x lens in a polystyrene box.
