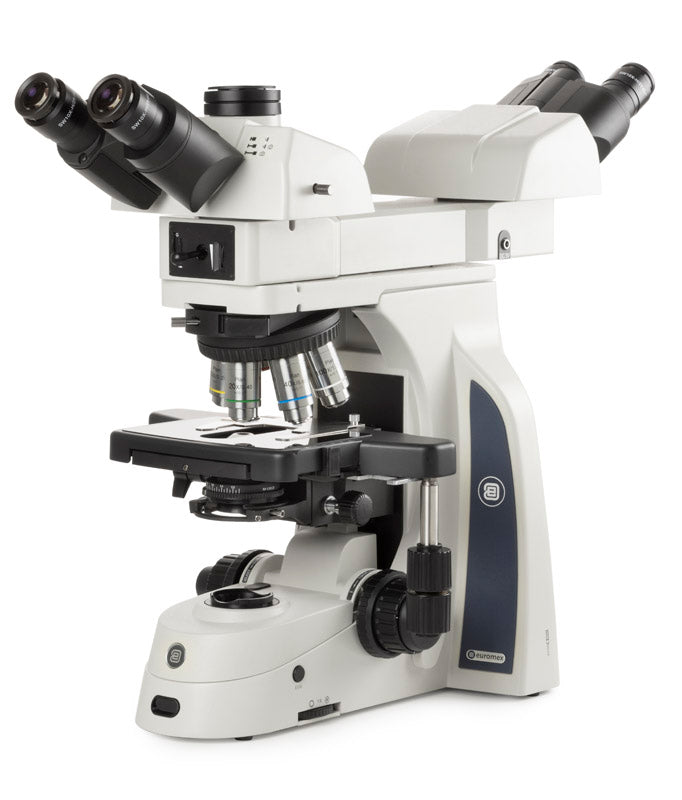

Euromex Delphi-X Observer with face-to-face dual eyepiece head. One trinocular head with SWF 10x/25 mm Ø 30 mm eyepieces and one binocular head with SWF 10x/22 mm Ø 30 mm eyepieces. Equipped with Plan PLi 4/10/20/S40/S100x oil immersion IOS objectives.

OCLEAR

• Super Widefield SWF 10x/25 mm, Ø 30 mm tubes
• Extended widefield EWF 10x/22 mm, Ø 30 mm tubes

STANDARD HEAD

• Siedentopf trinocular head with 30° inclined tubes
• Adjustable Interpupillary distance (47-78 mm)
• The standard trinocular head has an optical lever to control the light path (100:0 / 80:20 / 0:100)
• Diopter setting ± 5 on both eyepieces

ERGONOMIC TILT HEAD
Optional, ergonomic trinocular head, tiltable from 0 to 35°, with SWF eyepieces (10x / 25 mm), interpupillary distance between 47-78 mm, and a standard 23.2 mm diameter phototube. The trinocular tilt head features an optical lever to adjust the light path (100:0 / 80:20 / 0:100). Diopter adjustment ± 5 for both eyepieces.

MULTI-HEAD SYSTEM
The Delphi-X-Observer™ can be expanded with a multi-head system for two, three, five, or ten users. The central head is equipped with a joystick to move a green and red laser pointer across the entire field of view of all heads. The multi-head system with two, three, or five heads and 30° inclined tubes comes with Super Widefield SWF10x/25 mm eyepieces. In multi-head systems with ten heads and 30° tubes, the main trinocular head is equipped with SWF10x/25 mm eyepieces, and the other binocular heads are equipped with Extended Widefield EWF10x/22 mm eyepieces. The Delphi-X Observer™ multi-head system with ten heads is supplied without an iCare sensor.

Order reference:

• DX.215 6 -xxx/10 (only with halogen 100 W lighting) or
• DX.115 6 -PLi/n (with NeoLED illumination). n = total number of heads. xxx = PLi, APLi or PLPHi lens

(Photo: DX.215 6 -Pli/10)

FACE-TO-FACE DOUBLE HEAD SYSTEM
The Delphi-X Observer™ can be supplied with two binocular heads in a face-to-face configuration, allowing simultaneous observation by two operators. The main head is equipped with Super Widefield (SWF) 10x/25mm eyepieces, and the second head with EWF 10x/22mm eyepieces. A joystick allows the operator to move a green or red laser pointer across the entire field of view of both heads.

Order reference:

• DX.215 4 -xxx (Halogen 100 W lighting) or
• DX.115 4 -xxx (NeoLED models). xxx : Lens PLi, APLi or PLPHi

LENS REVOLVER
Rearward-tilting lens turret on ball bearings for six lenses with 25 mm lens threads

MOTORIZED LENS REVOLVER
The Delphi-X Observer™ can be supplied with a motorized, rotating inverted 6-position objective turret. A precision stepper motor allows the user to change lenses with the simple push of a button. Another button enables quick switching between two pre-selected lenses. A motorized objective turret is supplied as standard.

OBJECTIVES

All lenses are parafocal 60 mm and have an M25 mm mounting thread.
All lenses are treated with an anti-fungal coating and an AR coating to ensure maximum light transmission.
The lenses of the S40x, S60x and S100x are spring-loaded.
⁽¹⁾ Optional

EXTENDED INFINITY SYSTEM (EIS)
The Delphi-X Observer™'s Enhanced Infinity System (EIS) consists of 10x25 mm super-widefield eyepieces (SFWF), 60 mm high numerical aperture parafocal lenses, and a 200 mm focal length. The 200 mm focal tube reduces the angle of light rays passing through the optics, significantly improving chromatic aberration correction and contrast. The larger diameter lenses allow for considerably larger numerical apertures, enhancing the overall resolving power of the optical system. For all these reasons, the Delphi-X Observer™ delivers outstanding optical performance for the most demanding applications.

PLAN ACHROMATIC ICE LENSES
(Routine clinical applications)
The Delphi-X Observer™ comes standard with plan achromatic infinity-corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 EIS lenses.

Available as an option: 2x / 0.06, S50x / 0.95 (oil immersion) and S60x / 0.80

PLAN SEMI-APOCHROMATIC LENSES
(Anatomical and histopathological applications)
Infinity-corrected 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 lenses. The Delphi-X Observer™ comes standard with Plan Achromatic 4x/0.10 EIS lenses.

Available as an option: 2x / 0.06, S50x / 0.95 (oil immersion) and S60x / 0.80

PLAN PHASE CONTRAST LENSES
Plan Phase Infinity-corrected EIS lenses 10x / 0.25, 20x / 0.40, 40x / 0.65 and 100x / 1.25 (oil immersion)

TABLE

• 190 x 152 mm table with 78 x 32 mm integrated mechanical right-handed table
• Designed for 2 slides
• Comes standard with scratch-resistant Gorilla Glass
• Scratch-resistant sapphire crystal is available upon request.
• A left-handed mechanical table is available upon request.

FOCUS ADJUSTMENT

• Coaxial coarse and fine adjustment, 100 graduations, 1 µm precision, 100 µm per revolution. The total travel range is approximately 35 mm.
• Supplied with an adjustable table stop, which prevents damage to the specimen and lens.
• The coarse adjustments are equipped with friction control.
• The focus buttons can be switched from left to right according to the user's preference.

CONDENSER FOR BRIGHT FIELD
Height-adjustable NA 0.90/1.25 Abbe swing-out condenser with numerical aperture markings. Models with a motorized turret are supplied with a motorized condenser that automatically flips out the condenser's front lens when using the 4x objective.

Differential Interference Contrast (DIC) Capacitor and Bright Field
An optional height-adjustable disc condenser for DIC and brightfield imaging can be equipped with multiple primary DIC prisms for use with sliders containing secondary DIC prisms in the objective turret.

PHASE CONTRAST CONDENSER
Height-adjustable NA 1.25 Zernike phase contrast condenser with phase ring for 10/20/40x and S100x oil immersion objectives. For use with phase contrast objectives.

DIASCOPIC LIGHTING
Two Köhler illumination systems are available for the Delphi-X Observer™ microscope:

• Adjustable diascopic intensity 3W NeoLED™ Köhler illumination with internal 100-240V power supply
• Adjustable diascopic intensity, 100W halogen Köhler lighting with internal 100-240V power supply

The diascopic halogen illumination comes with two push-in/push-out neutral density filters to uniformly attenuate the light intensity for all types of samples, and with a daylight filter. The diascopic NeoLED™ illumination comes with a diffuser filter.

LIGHT INTENSITY MEMORY FUNCTION
LIM (Light Intensity Memory function) automatically saves your preferred brightness while the magnification is changed. You no longer need to adjust the lamp brightness when changing magnification. This allows your preferred brightness to be maintained at every magnification, significantly improving user efficiency and reducing eye strain. Standard on all models with a motorized objective turret; for other models, see the ordering guide below.

Ordering information for automatic light intensity memory function. Example: Model DX.1153-PLi = DX.1153-PLi / LIM, but with automatic light control.

NEOLED™

The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin, short focal length lens to achieve three main benefits:

• More oblique light can be captured by the LED light source, which significantly increases the light output.
• Less energy is needed to achieve this light intensity.
• The larger aperture of NeoLED™ allows the optical system to produce higher resolution images that are very close to the theoretical diffraction limit of the optics.

IC ARE SENSOR
The unique iCare sensor was designed to prevent unnecessary energy loss. The microscope's illumination switches off automatically as soon as the user moves away from their position.

CARRIER HANDLE
The integrated carrying handle on the back of the microscope ensures safe transport, and the integrated tool and holder ensure that the right tool is always available.

STORAGE

AE.9914-D

PACKAGING
Comes with power cord, dust cover, spare fuse, instruction manual, and a 5ml bottle of immersion oil. LED versions are equipped with a white and yellow filter, halogen models with a blue filter. All packed in a styrofoam box.
