Description

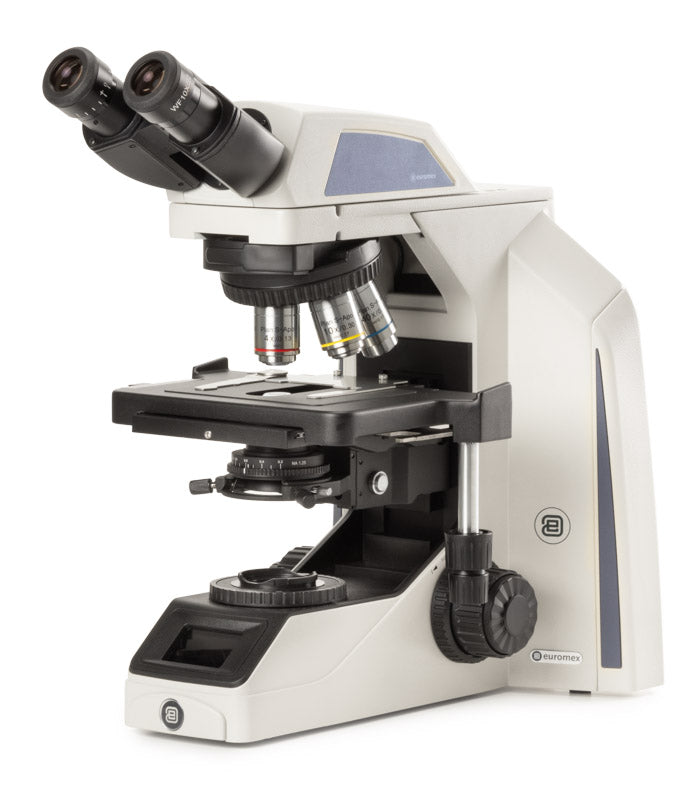

Achios-X Observer binocular microscope with EWF 10x/22 mm eyepieces, five-position objective turret with plan semi-aprochromatic APLi 4/10/40x IOS objectives, rackless stage and 3 W NeoLED™ Köhler illumination. With Smart Light Control.
"EWF 10x/22 mm eyepieces
Binocular design with Siedentopf 30° angled tubes. Interpupillary distance 47-78 mm with diopter adjustment on both eyepieces.
Ball-bearing, five-position inverted lens turret
Plan semi-apochromatic APLi 4x/0.13, 10x/0.30, 40x/0.75 IOS 60mm parfocal objectives
All optics are treated against fungal growth and coated with an anti-reflective material for maximum light transmission.
238 x 155 mm rackless table with integrated 79 x 55 mm mechanical table
Height-adjustable Abbe condenser
Coaxial coarse and fine adjustment with 200 divisions. Accuracy 1 μm, 0.2 mm per revolution. Total travel approx. 30 mm.
Rack-Stop for protecting slides and lenses. Friction adjustment.
Diascopic, intensity-adjustable 3W NeoLED™ Köhler illumination with external 100-240Vac / 5Vdc 2A power supply (CE)
SLC: The intelligent light control (SLC) stores the light intensity for each lens. Adjustable color temperature of the NeoLED (3200-7000 K). Magnification and intensity settings are displayed on the built-in LCD screen. Features a lock and sleep timer for energy saving.
CSS - Cable and Power Supply Storage System
Supplied with power cable, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in styrofoam case"
State-of-the-art microscopes for demanding life science applications
Experience optimal comfort and peak performance with the Achios-X Observer, an ergonomic masterpiece featuring a state-of-the-art optical system. Tailor-made for the demands of advanced life science applications such as cytology and anatomopathology.
Available functions
Important characteristics
- Extra wide field WF 10x/22 mm, Ø 30 mm
- Rotating five- or six-position inverted lens turret
- Infinitely corrected 60 mm achromatic plan, plan phase or
- Plan Semi-apochromatic EIS lenses
- Low-positioned adjustment knobs
- 3W NeoLED with adjustable color temperature
- Smart Light Control (SLC)
EYEPIECE
With an extended field of view of 22 mm, the Achios-X Observer proves its usefulness by reducing the need to move the pattern across the table, which is highly valued in demanding applications.
HEADS
An impressive number of heads to choose from:
In addition to the standard Siedentopf trinocular with a 30° inclined tube, there is the optional ergonomic, inclined head (0° - 35°), the face-to-face double head, and last but not least, multi-head systems with 2, 3, or 5 heads.
OBJECTIVES
The Achios-X-Observer comes with infinity-corrected achromatic plan, plan-phase or plan-semi-apochromatic EIS lenses, is 60 mm parfocal and has an M25 mounting thread.
TABLE
The Achios-X Observer comes complete with a generously sized, hard-coated, frameless mechanical stage, carefully designed for enhanced safety. This stage is free of sharp edges protruding from the sides of the microscope, ensuring a safe and worry-free experience. It accommodates two slides and allows for one-handed slide placement.
FOCUS
Coaxial coarse (37.7 mm per turn) and fine (0.2 mm per turn) adjustment.
Graduation 0.002 mm. Range 30 mm
CONDENSER
Depending on the configuration, the Achios-X Observer comes with
- Standard Abbe condenser
- Zernike phase condenser with telescope and green filter
- Swiveling Abbe condenser
- Darkfield condenser (dry)
- Darkfield condenser (oil)
LIGHTING
By introducing a Köhler-design mirror for the light source, the Achios-X Observer offers the most evenly illuminated and bright field of view possible.
REVOLVER
Experience the ease of an intuitive five-position or optional six-position lens turret on ball bearings, equipped with a grip ring for effortless operation and precise rotation.
LIGHT AND COLOR TEMPERATURE CONTROL
The Achios-X Observer introduces Smart Light Control. This intelligent feature saves the light intensity for each lens. The color temperature of the NeoLED light source can also be adjusted and saved. This innovation not only increases convenience but also saves valuable time during routine magnification changes. The environmentally friendly NeoLED light source is both eco-conscious and designed for longevity.
CSS – Cable Storage System
Allows the user to easily stow excess cable length in the back of the instrument during operation and to coil the power cord for easy storage.
CARRIER HANDLE
The integrated carrying handle on the back of the microscope ensures safe transport of the microscope.
NEOLED
The innovative NeoLED™ design is a combination of a custom LED and a specially developed thin, short focal length lens to achieve four main benefits:
- More oblique light from the NeoLED™ light source can be captured, which significantly increases the light output.
- Less energy is required to achieve this light intensity.
- The larger aperture of NeoLED™ allows the microscope's optical system to produce higher resolution images that are very close to the theoretical diffraction limit of the optics.
- Extremely long service life, up to 50,000 hours nominal, L70 standard
PACKAGING
Supplied with power cable, dust cover, screwdriver, instruction manual and 5 ml immersion oil for models with 100x objective lens.
