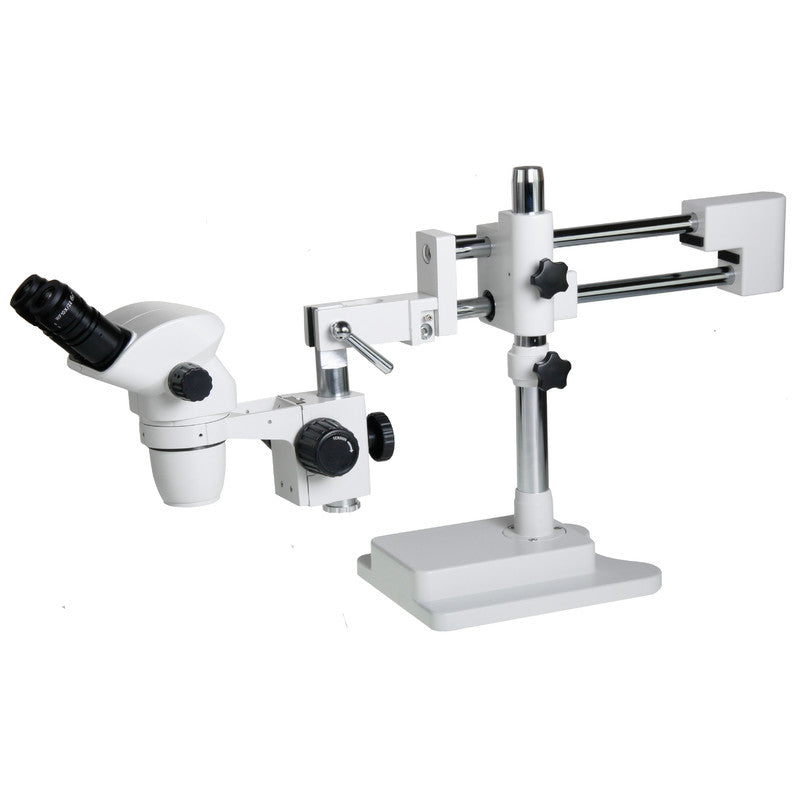

Euromex NexiusZoom ESD, NZ.1902-B-ESD, double arm tripod, 6.7x-45x, binocular

Important characteristics

• Binocular and trinocular heads with HWF 10x/22 mm or HWF 10x/23 mm eyepiece (EVO)
• Zoom 1:6.7, from 6.7x to 45x or 1:8.4, from 6.5x to 55x
• Ergonomic tripods
• Dual 3W LED lighting
• Configurations up to 220x magnification
• Large working distances
• ESD-safe models available
• 10-year warranty

OCLEAR

• The NexiusZoom comes with a pair of HWF 10x/22mm eyepieces.
• The Nexius Zoom Evo comes with a pair of HWF 10x/23mm eyepieces.

HEAD
Binocular and trinocular head with a 45° inclined tube. Both eyepieces with ±5 diopter adjustment. Interpupillary distance adjustable from 54 mm to 75 mm. The trinocular head comes with a fixed-path beam splitter (50:50). The NexiusZoom EVO models are now equipped with click stops.

OBJECTIVES

• The standard NexiusZoom is equipped with a plan achromatic 1:6.7 objective lens with 0.67x to 4.5x magnification. Field of view from 33 mm to 4.9 mm. Large working distance of 110 mm.
• The NexiusZoom Evo st is equipped with a plan achromatic 1:8.4 lens with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm.

Supplementary lens 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x magnification is available. All lenses are treated with an anti-fungal coating.

ENLARGEMENT
Working distance and field of view with standard HWF 10x/22 eyepieces from the standard NexiusZoom

Zoom magnification = Zoom magnification
AA = Working distance
Total magnification = Total magnification
SF = Field of vision

Working distance and field of view with standard HWF 10x/23 eyepieces from the NexiusZoom Evo

Zoom magnification = Zoom magnification
AA = Working distance
Total magnification = Total magnification
SF = Field of vision

COMPATIBILITY OF THE LENS

POLARIZATION
The NexiusZoom can optionally be supplied with a 360° rotatable rotary stage with built-in polarizing filter and/or an optional rotatable analyzer filter in a holder that is screwed under the lens.

STANDS

• Ergonomically designed column or rack and pinion stand with 3W incident and 3W transmitted LED lighting (-P- and -S- stand)
• Ergonomically designed column stand with two 3W gooseneck LED spotlights on each side and one 3W LED backlight (-PG stand)
• Ergonomic column stand with rotating mirror and 3W LED transmitted and reflected light lighting (-M tripod base)
• Ergonomically designed universal or extension tripods without lighting (-U-, -B- and BC-stands)
• Articulated arm stand for the table or heavy desktop stand, both without head holder, without lighting (-A and -AP stands)
• Lightweight articulated arm tripod with head holder, without lighting (NZ.9047, see attached data sheet)

All column and rack stands are supplied with two object clamps. Alloy metal casting, hardened coating.

NZ.9005, NZ.9000 and NZ.9047

CROSS TABLE
NEW: 180 x 155 mm X/Y mechanical stage with 76 x 55 mm objective stage and transparent glass plate for Nexius zoom; the microscope base is attached to the stand. Only available with new microscopes (due to the mounting system); must be ordered directly with the purchase of a microscope.

(See image: NZ.9505)

LIGHTING
3W transmitted and reflected LED spotlights with internal 100-240V power supply. Both spotlights can be used simultaneously, and the light intensities can be adjusted separately. The universal single or double arm stands and the articulated arm stands can be equipped with the LE.1974 and LE.1973 ring lights, each with 72 or 144 power LEDs respectively, controlled in segments, ideal for creating or raising shadows.

STORAGE

AE.9916

PACKAGING
Includes power adapter, a pair of eyecups, dust cover and instruction manual in a styrofoam box
