Description
"Pair of HWF 10x/22 mm eyepieces
Trinocular head, 45° inclined tubes. Tubes can be positioned at the top or bottom.
Interpupillary distance 54–75 mm. Diopter adjustment on the left eyepiece.
Reverse 5-shot revolver with ball bearings.
Plan phase lenses PLPH 10x, 20x, S40x IOS
All lenses are treated with antifungal agents and anti-reflective coatings for maximum light transmission.
250 x 230 mm object stage with 120 x 78 mm mechanical object stage.
Supplied with glass insert with 30 mm bore, metal insert with 25 mm bore, metal insert for Petri dish holder (35 mm diameter), slide holder (76 x 26 mm) with 54 mm Petri dish holder and multiwell holder with 65 mm Petri dish holder.
Coaxial coarse and fine adjustment. Precision: 2 μm, 0.2 mm per revolution. Total stroke approx. 25 mm.
Supplied with metal insert for 35 mm Petri dishes and Terasaki holder
NA 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm
Supplied with slider with phase contrast rings and green filter
Transmitted light NeoLED™ (5 W), adjustable intensity, internal power supply 100–240 V (CE)
Delivery includes power cable and transport box"

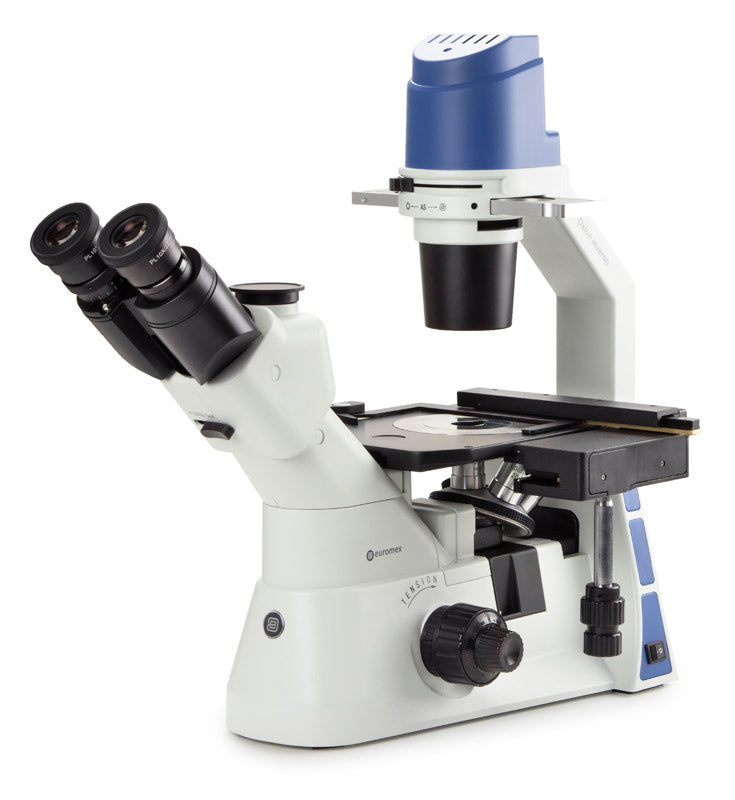

Oxion Inverso (fluorescence)
Euromex's Oxion Inverso biological microscopes are available for brightfield, phase contrast, and fluorescence applications. Individual objectives compensate for the 1.2 mm thick bottoms of Petri dishes or culture dishes.
The Oxion Inverso microscopes (Life Science) are suitable for observing living organisms and cell structures.
Available functions
Important characteristics
- Life Science Applications
- Observation of tissue cultures, living cells
- Brightfield, phase contrast and fluorescence
- Long working distance IOS plan achromatic lenses
- Five-position objective turret
- 5W LED transmitted light
- 100 W mercury vapor light source for fluorescence
OCLEAR
Pair of DIN HWF Plan 10x/22 mm eyepieces
HEAD
- 45° inclined trinocular tubes with extended low and high positions for eyepieces
- Diopter adjustment on the left eyepiece
- Interpupillary distance of 54 to 75 mm
- Trinocular head with 0-100% positions
REVOLVER
Rotating 5-position objective turret on ball bearings
Brightfield lenses
(Models OX.2003-PL and OX.2053-PL)
- Plan Infinity color-corrected, with large working distance 10x / 0.25, 20x / 0.40, 40x / 0.60 IOS lenses
- An optional 60x / 0.70 IOS lens is also available.
PHASE CONTRAST LENSES
(Models OX.2003-PLPH and OX.2053-PLPH)
Infinity color-corrected with large working distance Plan Phase 10x / 0.25, 20x / 0.40, 40x / 0.60 IOS lenses
(Photo right side: OX.9190 slider with 4x / 10x and 20x / 40x phase contrast Annuli)
LENSES FOR BRIGHT FIELD AND FLUORESCENCE MICROSCOPY
(Models OX.2253-PLF and OX.2453-PLF)
- Color-corrected Infinity-Plan Fluarex 10x / 0.30, 20x / 0.45, 40x / 0.65 IOS lenses
- An optional Plan Fluarex 60x / 0.75 IOS lens is also available.
OBJECTIVES FOR PLAN PHASE AND FLUORESCENCE MICROSCOPY
(Models OX.2253-PLF and OX.2453-PLF)
Color-corrected Infinity-Plan Fluarex 10x / 0.30, 20x / 0.45, 40x / 0.65 IOS lenses
All lenses corrected for 1.2 mm thickness.
All lenses are treated with anti-fungal agents and anti-reflective coatings for maximum light transmission.
TABLE
Object stage 250 x 230 mm, equipped with a coaxial mechanical 120 x 78 mm XY stage, supplied with:
- Metal insert for cell culture dishes with Ø 35 mm
- Slide holder 76 x 26 mm
- Glass insert with hole, optional universal holder for cell culture dishes
(IMAGE: OX.9599 (Universal Cell Structure Plate)
CONDENSER
- N.30. Condenser with iris diaphragm. Working distance 72 mm
- The phase contrast models OX.2003-PLPH, OX.2053-PLPH, OX.2253PLPHF and OX.2453-PLPHF are supplied with a slider featuring pre-centered phase rings with 4x/10x and 20x/40x magnification.
FOCUS ADJUSTMENT
Coaxial 25 mm coarse and fine adjustment, 2 µm precision and with friction adjustment
LIGHTING
- 5W LED output, adjustable intensity, with internal 100-240V power supply. 3.15A / 250V fuse holder.
- The fluorescence models are equipped with a reflected 100 W HBO mercury vapor light source with an external 100-240 V power supply, a 3.15 A / 250 V fuse holder, and a UV protective shield.
LED lighting for fluorescent lighting
Two LED sources for fluorescence are available for 4 or 9 excitation wavelengths.
See our products LE.6400-OX and LE.6900
FILTER FOR PHASE CONTRAST MODELS
Interference filter 550 nm, green and blue filters, 45 mm diameter
STANDARD FLUORESCENT FILTER
(For fluorescence models)
The standard delivery package for the OX.2253-PLF and OX.2253-PLPHF fluorescence models includes two sets of excitation filters:
- in the blue spectrum, OX.9745, EX465-495 (BP) DM505 (LP) EM515-555 (BP)
- in the green spectrum, OX.9746, EX540-580 (BP) DM600 (LP) EM605-665 (BP)
The fluorescence models OX.2453-PLF and OX.2453 PLPHF are equipped with a 4-position filter rail, which includes 3 standard filter sets for excitation:
- in the blue spectrum, OX.9745, EX465-495 (BP) DM505 (LP) EM515-555 (BP)
- in the green spectrum, OX.9746, EX540-580 (BP) DM600 (LP) EM605-665 (BP)
- in the UV spectrum, OX.9747, EX361-389 (BP) D415 (LP) EM435-485 (BP)
STANDARD GENERAL FLUORESCENT FILTER SETS
OX.9745 Blue excitation 465-495 nm
FITC EX465-495 (BP) DM505 (LP) EM515-555 (BP)
Also suitable for: Acridine Orange + DNA, Alexa Fluor 488 ™, Atto 488, Azami Green, BODIPY FL / pH7.2, Calcein, Calcium Green ™ -1, Cy2 ™, DiO, DyLight 488, EGFP, Emerald GFP, FAM, FITC, Fluo-4, GFP-LysoTracker Green / pH 5.2, MitoTracker Green FM / MeOH, mWasabi, Oregon Green™ 488, SYBR® Green I, SYTO 9/DNA, ZsGreen
OX.9746 Green excitation 540-580 nm
Texas Red / mCherry / Alexa Fluor 594 EX540-580 (BP) DM600 (LP) EM605-665 (BP)
Also suitable for: Alexa Fluor 568™, Alexa Fluor 594™, CAL Fluor® Red 610, Cy3.5™, DyLight 594, FusionRed, Killer Red, mCherry, MitoTracker Red / MeOH, mKate2, mRFP1, ReAsH-CCPGCC, Rhodamine Red™ -X, ROX, Sulforhodamin 101, Texas Red®, Texas Red®-X, X-Rhod-1 / Ca 2+
OX.9747 UV excitation 361-381 nm
DAPI / Hoechst / Alexa Fluor 350 EX361-389 (BP) D415 (LP) EM435-485 (BP)
Also suitable for: Alexa Fluor 350, Biosearch Blue, Coumarin, DAPI, DyLight 350, Hoechst 33258, LysoTracker Blue / MeOH
OX.9748 Violet excitation 361-389 nm
UV / DAPI Longpass, Calcofluor White EX415-445 (BP) DM455 (LP) EM465-495 (BP)
PACKAGING
Supplied with power cord, dust cover, and instruction manual. Phase contrast models come with a green filter and centering telescope. The microscope is supplied in a carrying case.
ISCI (INTRACYTOPLASTIC SPERM INJECTION) FOR OXION INVERSO
( OX.2003-PLPH-ISCI Oxion Inverso with ICSI equipment for intracytoplasmic sperm injection)
TECHNICAL DATA
- Perfect for inexperienced users who need practical training, as well as for professionals.
- Complete manual system
- Large area of movement
- Simple position of the micropipette 'Manual Home Position'
- Adjustable angle of the micropipette holder between 20° and 40°
- The fastening knob of the micropipette holder reduces vibration and simplifies the handling of the semen.
- Easy installation and maintenance
- 3D joysticks for hydraulic manipulation for smooth movements
- Pneumatic air injector for ICSI and holding
- No injector maintenance required.
- Identically sensitive injectors on both sides and interchangeable.
- Top quality at a great price
- Range of motion: X / Y / Z: 20 mm each, 1 mm for a complete rotation of the handle.
- Optional hot plate with controller
(Image: ISCI Set (detail))
The ISCI SET
The set includes two hydraulic 3D joysticks, two pipette setup mechanisms, a connecting rod with a movable handle, two air injectors with tubing and pin microphone manipulation, a pipette holder, two metal plates for injectors, a set of Allen wrenches, and a ruler for mechanics initial position adjustment. The device is packed in a sturdy case.
THE HEATING SETTLE
- Glass heating element for Euromex microscopes with a 110 mm round hole
- The glass plate fits into the circular opening of the XY stage and enables a flat glass stage with constant temperature.
- Aluminum frame for superior durability and flatness
- Glass thickness 0.5 mm. Panel diameter 110 mm.
CONTROLLER
- 2-channel temperature controller with touchscreen interface
- One controller can control up to two devices.
- An external temperature sensor (included) and self-calibration routines enable easy calibration of the heating devices.
- The integrated data logging allows for the recording of temperature as a function of time, as well as calibration events and alarms.
- The password-protected control system is equipped with routines to recalibrate the sensors using certified thermometers.
CHARACTERISTICS
- Temperature range: from ambient temperature to 60°C
- Temperature accuracy of the sample: ± 0.3 °C
- 10.92 cm touchscreen interface
- External temperature sensor
- Integrated data logging for the USB drive
- Alarm buzzer and external alarm connection
- One controller can control up to two devices.
- Self-calibration routines enable high temperature accuracy.
