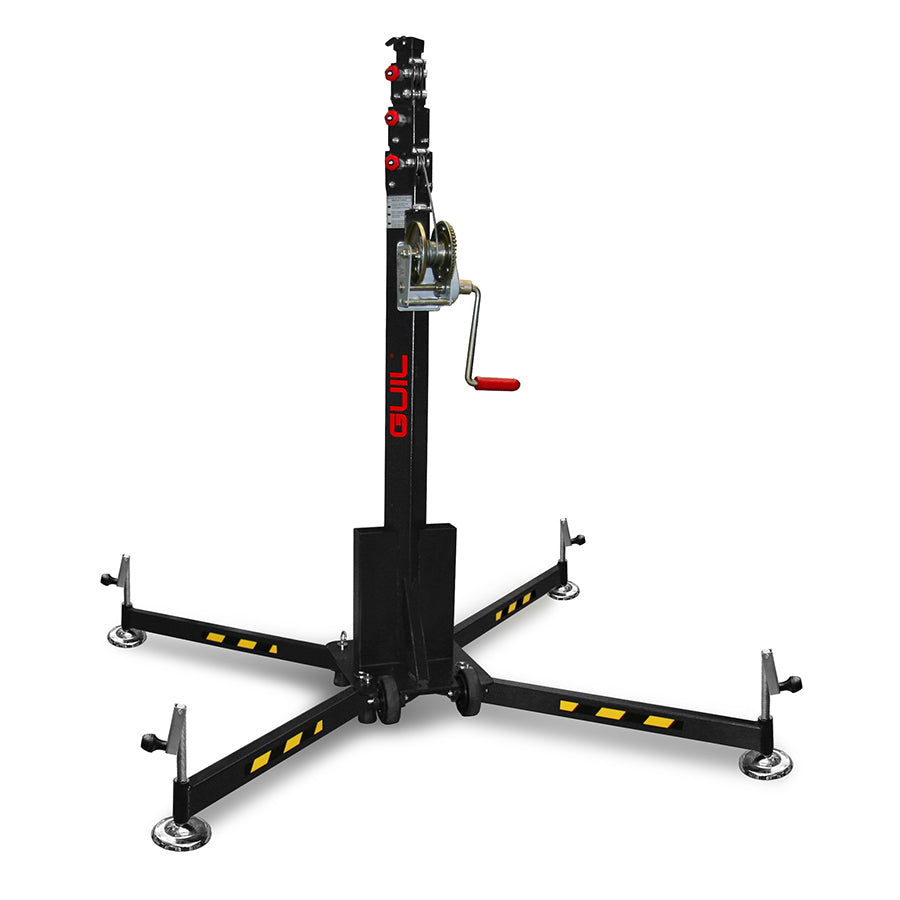

GUIL ELC-630 - Compact telescopic lift with winch (max. working height 4.50m | max. load capacity 125kg | foldable)
The GUIL ELC-630 is a compact telescopic material hoist for lifting loads of up to 125 kg and a total height of max. 4.50 meters.
The user-friendly & compact design with foldable and adjustable base (umbrella style) makes the GUIL ELC-630 Lift the ideal addition for any type of lifting task that needs to be carried out indoors or outdoors.
The GUIL ELC-630 is equipped with two safety systems that guarantee maximum reliability and durability:

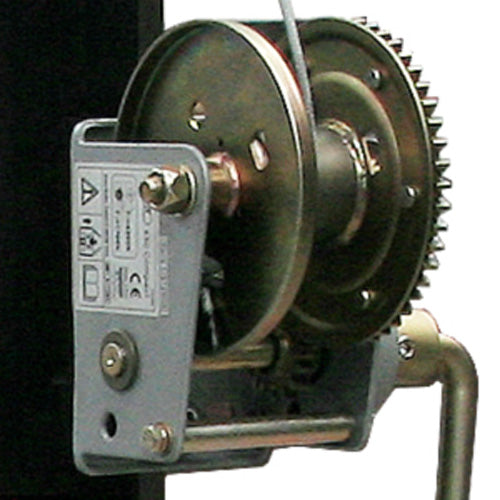

- The lift is equipped with a hand winch with an automatic braking system. The Auto-Block system ensures that the load remains in position when the handle is released.
-

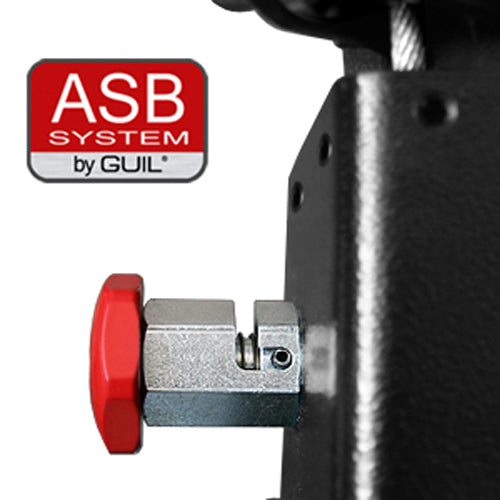

ASB System - Automatic safety blocking system
Mast sections:
The telescopic lift consists of four telescopic sections made of steel (S235 JRH | DIN EN 10219-1: 2006), which are provided with a structured black powder coating, which has a special scratch resistance.
Together with the fact that all components are made of stainless material, the lift is suitable for outdoor use and guarantees maximum corrosion resistance.
These robust sections are lifted with a non-rotating steel wire rope (diameter 4 mm with galvanized steel core | composition 19 x 7 + 0), which was specially manufactured for lifting heavy loads (DIN 3069).

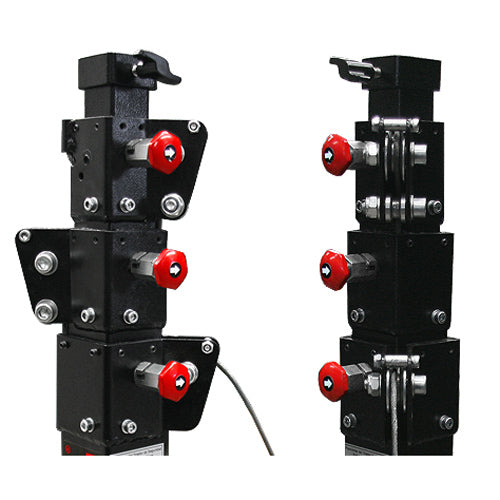

The mast parts are secured with a safety bolt.
These locking bolts are an important element for locking or unlocking the mast sections at the desired height during use.
The lift is supplied with a spirit level to ensure efficient vertical alignment of the mast sections.
All pulleys and the pulley cable guide are fitted with metal protection plates to prevent damage during handling of the elevator and to prevent the wire rope from escaping from the pulleys

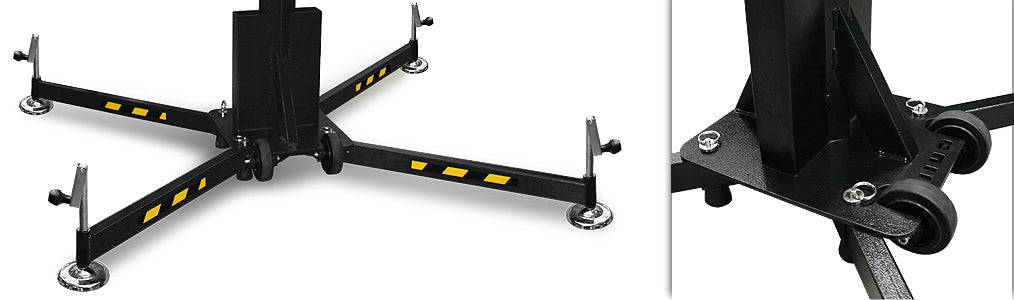

Stand:
The compact base with corridor and single door access is equipped with two heavy-duty castors (Ø 100 mm) for easy handling and positioning.
The base has four removable stabilizing feet equipped with leveling screws and double thread for increased speed.
The non-slip rubber footplates ensure that the lift adapts perfectly to the floor surface.
Transport:

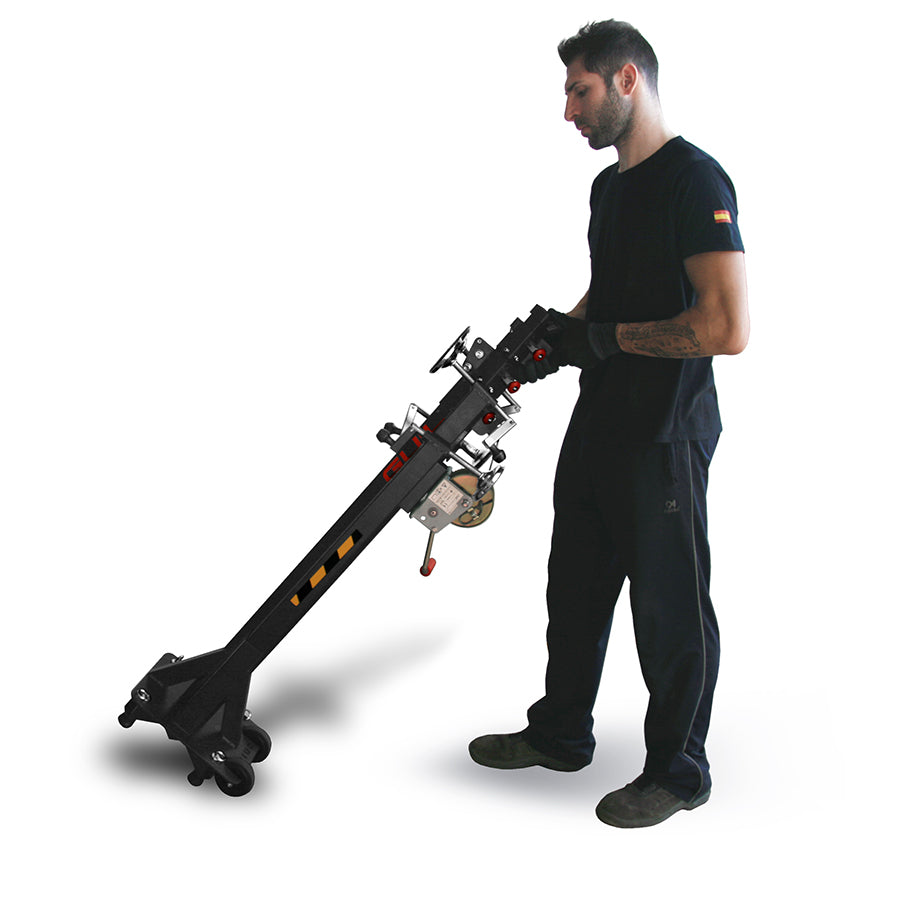

The lift has a compact and lightweight design for easy handling, transport and storage.
This means a technician can easily transport and use the ELC-630, saving time and increasing productivity.
Maximum security:
The ELC-630 lift meets the requirements of lightweight, robustness and maneuverability required for lifting heavy loads and guarantees maximum safety and durability.
It meets the highest quality and safety standards: BGV C1 | DIN 1055 | DIN 18800 | BGV D8 | 2006/42 / CE | DIN 15560-27

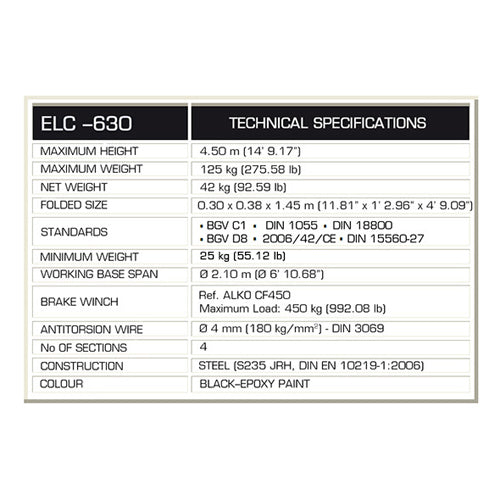

Technical data:
- Working height: max. 4.50 m
- Load capacity: max. 125 kg
- Load weight: min. 25.0 kg

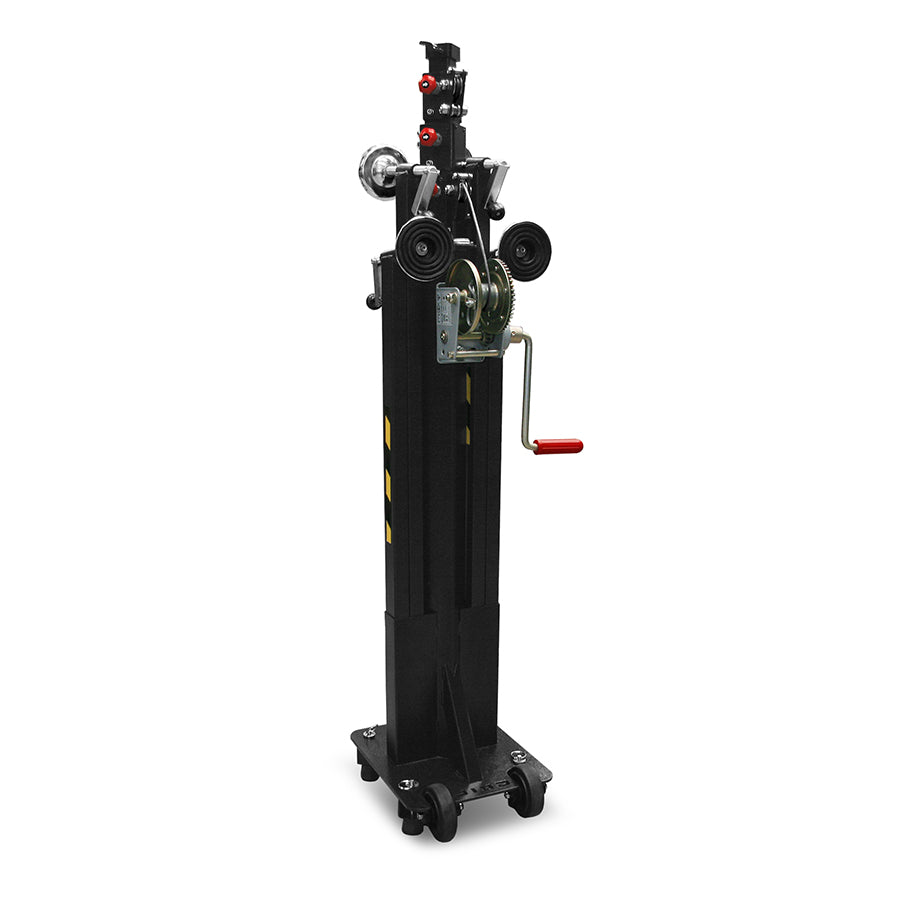

- Height folded: 1.44m
- Dimensions when folded: 30 x 38 x 1,450 cm
- Hand winch: AL-KO CF450
- Base diameter: 210 cm
- Steel cable: Ø 4 mm (180 kg / mm² | DIN 3069)
- Weight: approx. 42.0 kg
- Mast elements: 4
- Material made of steel
- Color: Black
Important: The telescopic lift is not suitable for transporting people!
