Highlights
- Touchscreen display

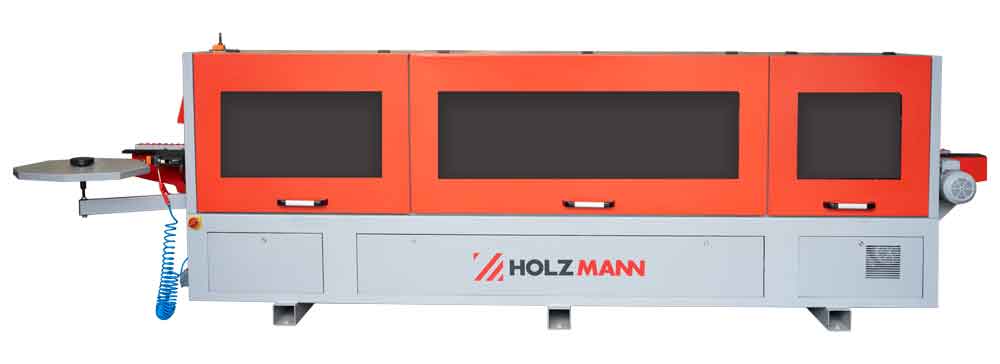

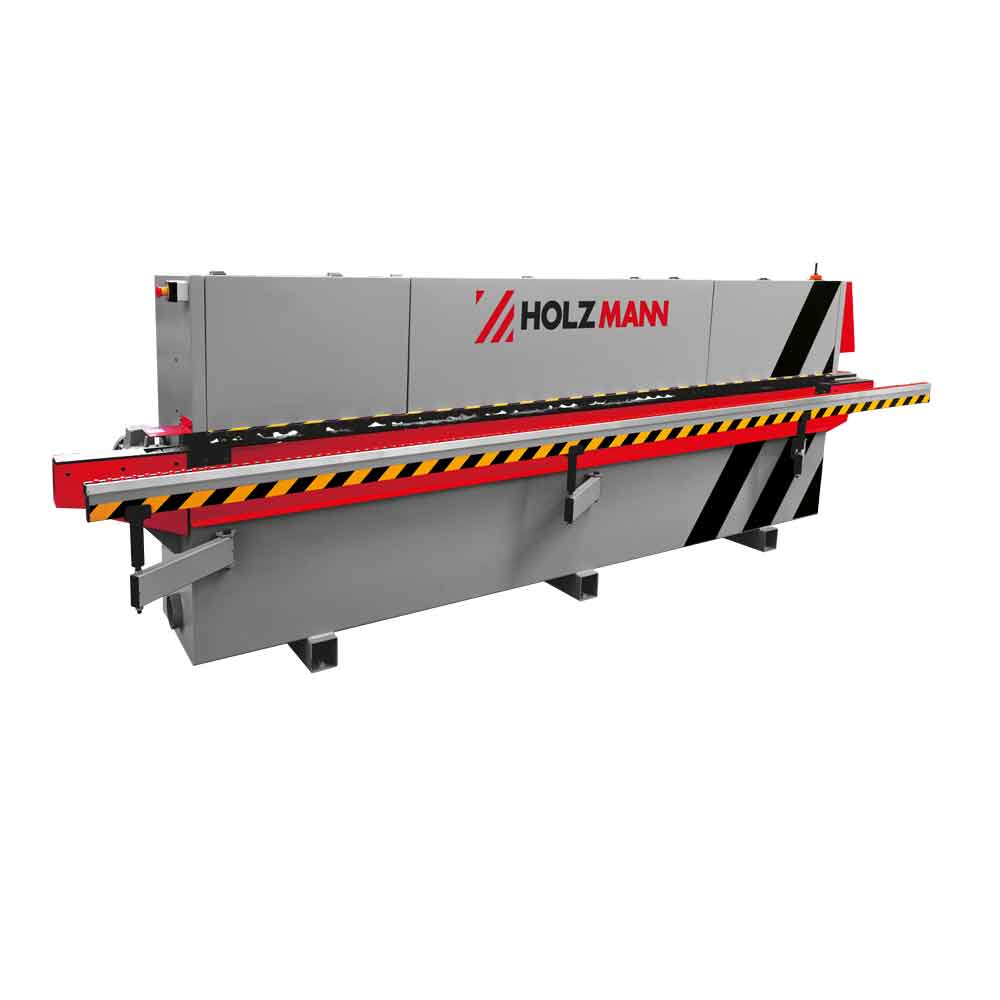

- single-sided automatic edge banding machine
- Direct glue application to straight workpieces
- Aggregate adjustment equipped with counter for setting different edge thicknesses

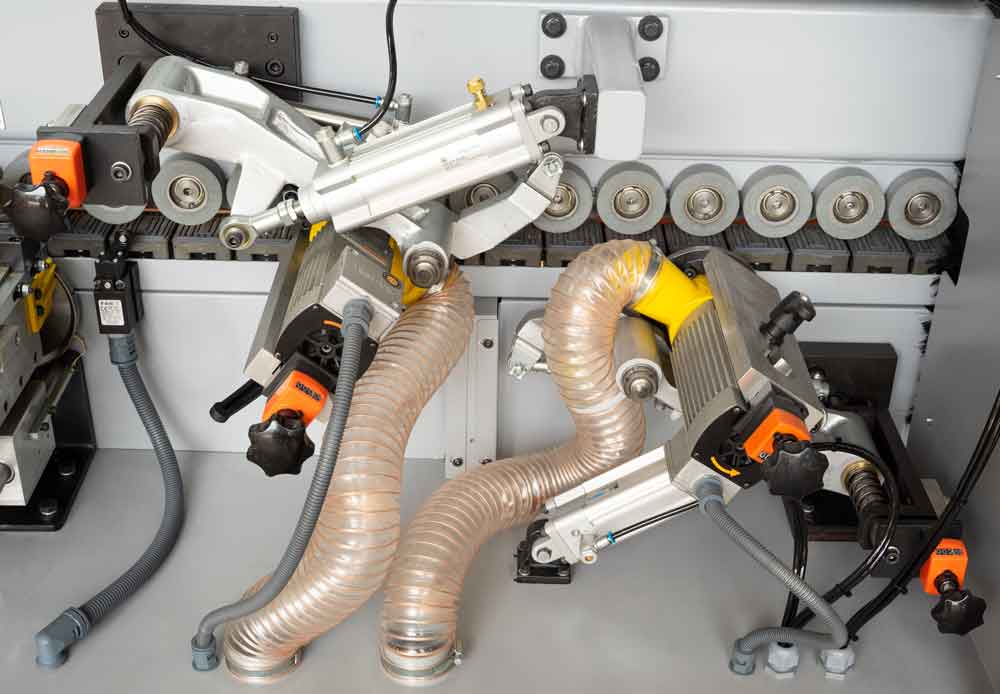

- Milling off the edge overhang on the edge (top/bottom) with form cutter flush or with radius

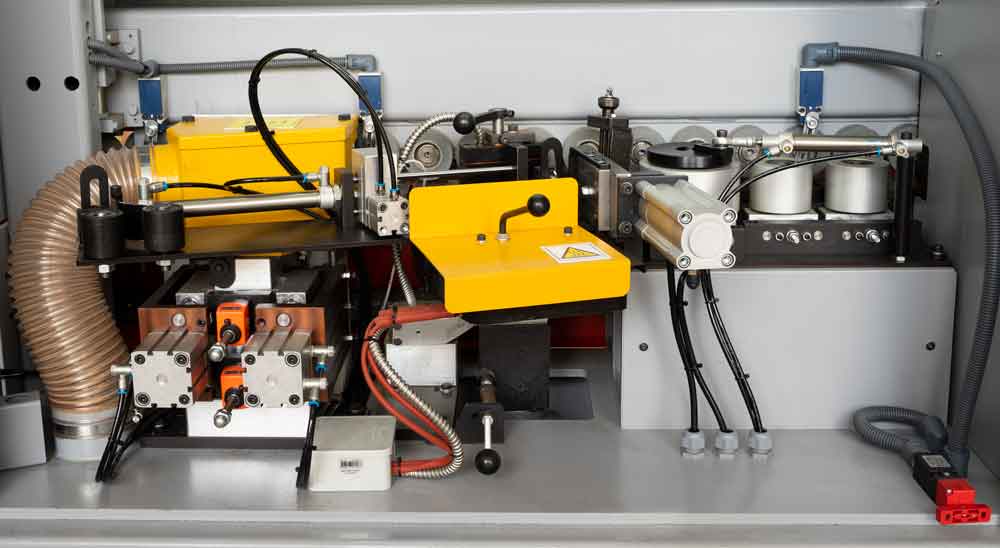

- Precise cutting of the edge band (back/front) using a cross-cut saw unit

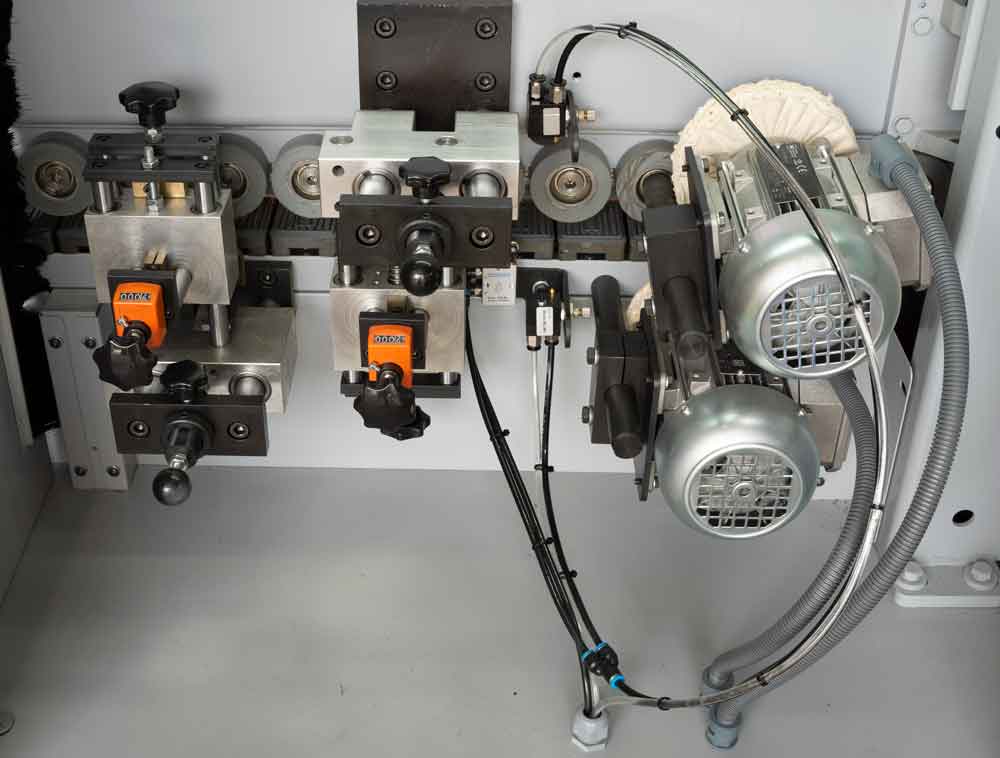

- Scraper unit with radius
- Pressure rollers ensure ideal connection between edge band and workpiece
- automatic and constant plate feed
- Gluing temperature can be adjusted electronically on the touch display
- Glue pot Teflon coated

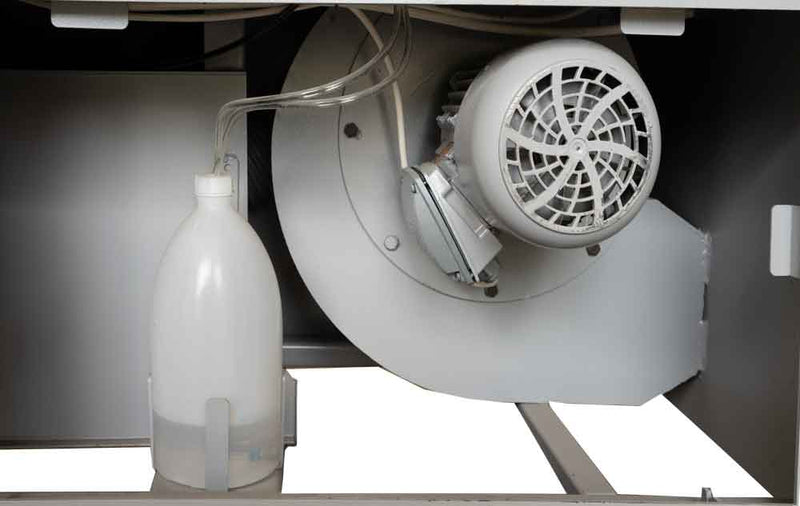

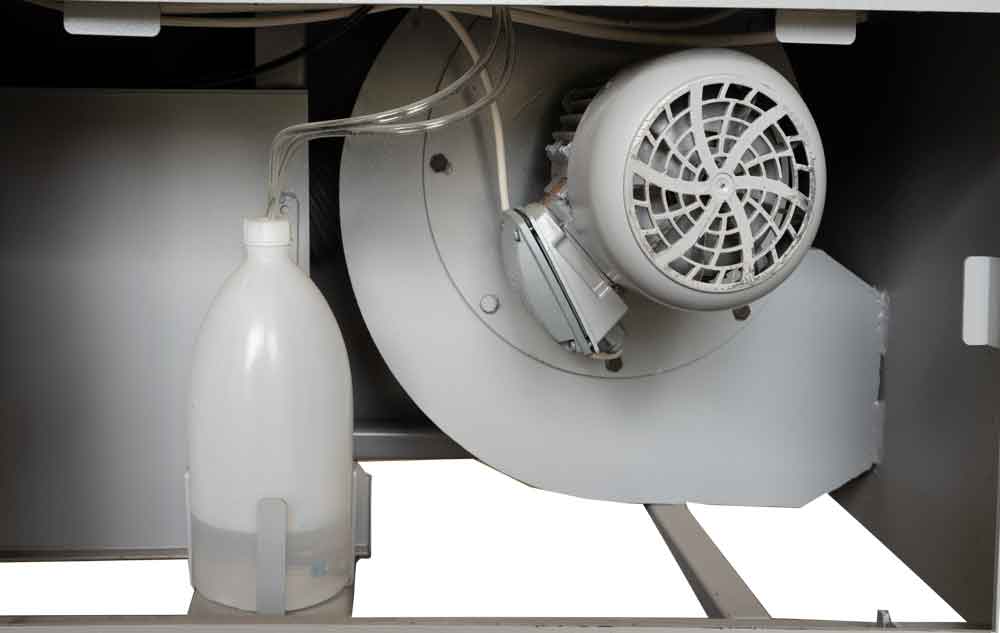

- integrated extraction system

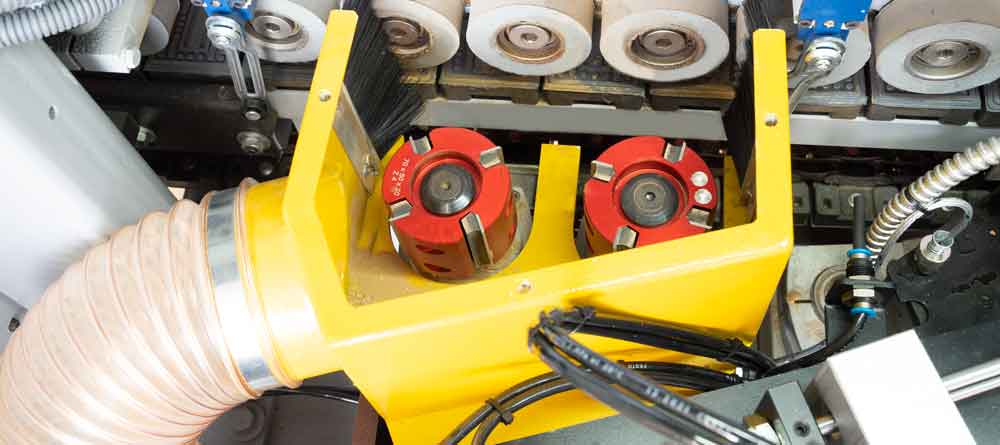

- Pre-milling unit with infeed up to 3mm removal
- Edge trim (2 units) for perfect edge finishing
- Cleaning spray unit facilitates cleaning of the edge before the polishing unit for a
residue-free finishing
Scope of delivery : Machine with 2 x scrapers, saw blades for mitre saw unit (Ø100 x 30 x 3.2 mm T30), radius cutter (Ø49 x 20 mm T4); polishing wheels (Ø 150 mm), 2 x pre-milling cutters, 2 x edge cutters
Technical details
Extraction connection in mm
min. workpiece length in mm
min. workpiece width in mm
min. workpiece thickness in mm
max. workpiece thickness in mm
Working air pressure in bar
Sound power level in dB(A)
