Highlights

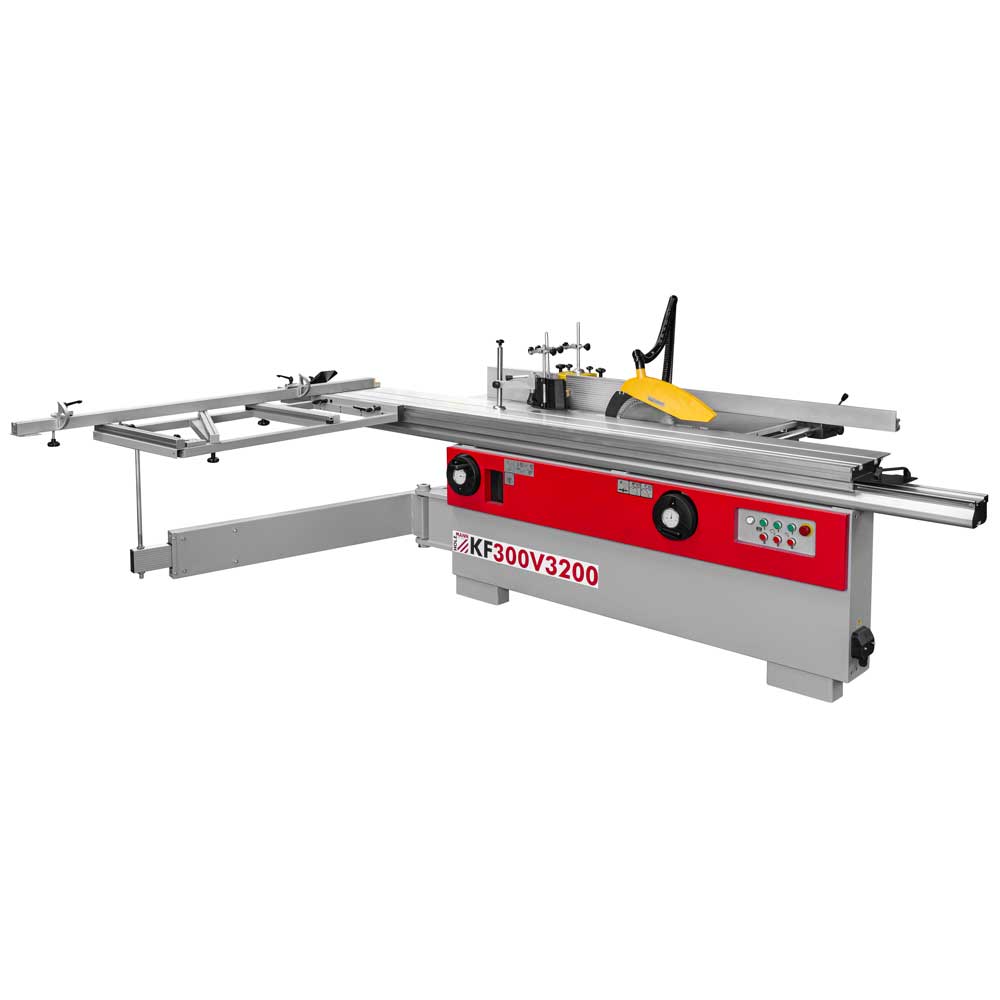

- combines the advantages of our FS300 milling machine and the FK320V3200 panel saw
- Three motors (milling spindle (3kW), main motor saw (4kW), scoring saw (750W))
- height-adjustable and pivoting circular saw blade with ø250-ø315mm
- Height/side adjustable scoring saw
- Milling unit with swivel spindle (-5°)0°-45° and 4 spindle speeds
- large format sliding and outrigger table and outrigger table stop
- Cast iron table with table extension and widening
- stable and finely adjustable parallel stop
Scope of delivery : Operating tools (push stick, push block, eccentric clamp (downholder), trimming scissors...), scoring saw blade (ø120mm); circular saw blade (ø315mm), parallel stop, outrigger table stop (extendable)
Technical details
Format sliding table in mm
Extraction connection in mm
Installation dimensions in mm
5130 (+1760) x 3130 (+1150)
max. cutting height 90° in mm
max. cutting height 45° in mm
Cutting width at the parallel stop in mm
Milling spindle diameter in mm
Milling spindle speed in min-1
max. clamping height in mm
Max. tool diameter retractable in mm
Max. tool diameter above table in mm
Scoring saw blade speed in min-1
