Highlights & Product Description

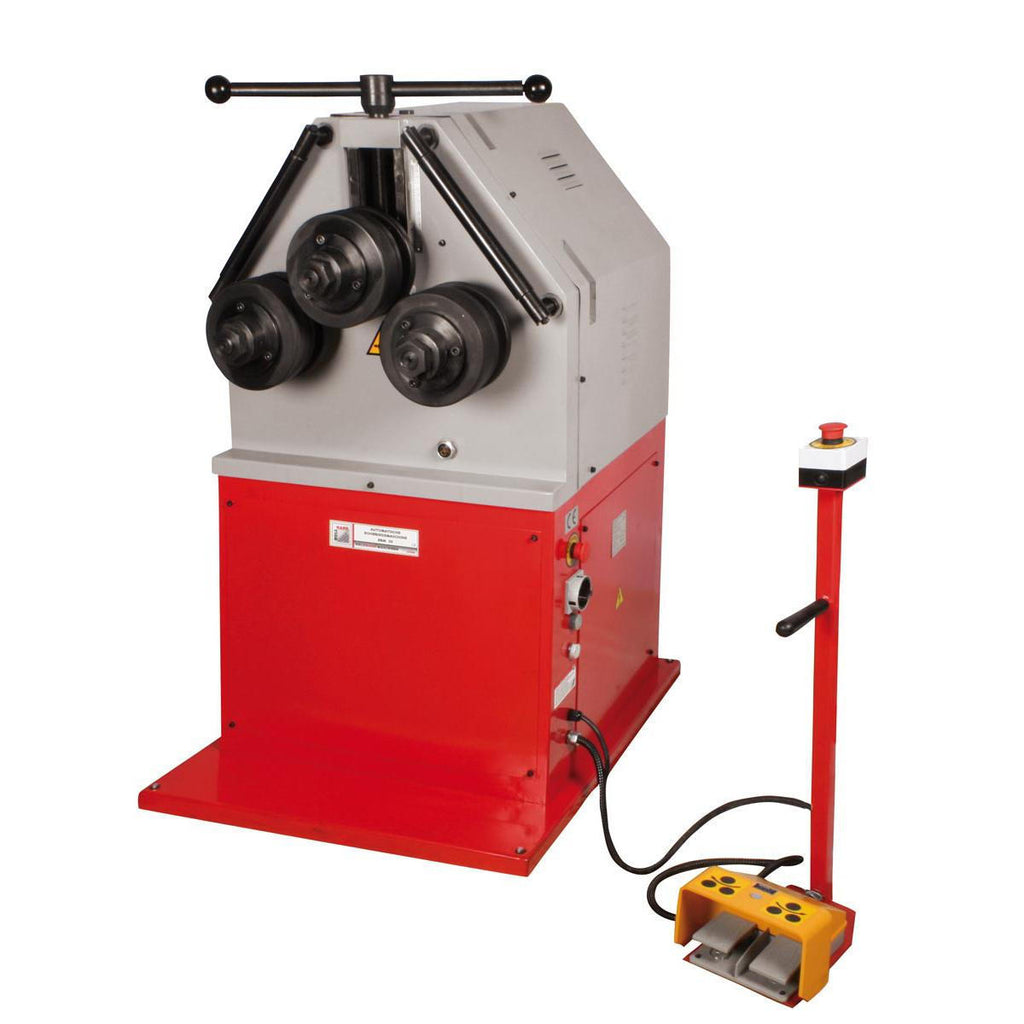

This high-performance profile and tube bending machine is designed for precise bending work in professional applications . The bending radius can be precisely set using the top-mounted feed device with vernier scale , ensuring reproducible results and high dimensional accuracy.
Thanks to universal rollers, numerous different profile geometries can be bent – ideal for pipes, profiles, and flat materials. The laterally ground and hardened straightening rollers and bending rollers made of durable, hardened steel ensure high load capacity and a long service life.
The machine's very high weight ensures maximum stability, even during demanding bending operations. The foot pedal with forward/reverse rotation allows for comfortable, controlled operation, while the constant shaft speed of 9.3 rpm guarantees a smooth bending process.
Technical data
Motor
-
Motor power S6: 2,200 W
-
Motor power S1: 1,500 W
-
Voltage: 400 V
Sheet metal and profile processing
-
Max. square (L × H): 30 × 10 mm
-
Max. round steel: Ø 30 mm
-
Max. wall thickness of profile material: 1 mm
-
Shaft diameter: 40 mm
Weight
-
Net weight: 430 kg
-
Gross weight: 490 kg
Shipping dimensions
-
Height: 1,550 mm
-
Width: 930 mm
-
Length: 1,250 mm
