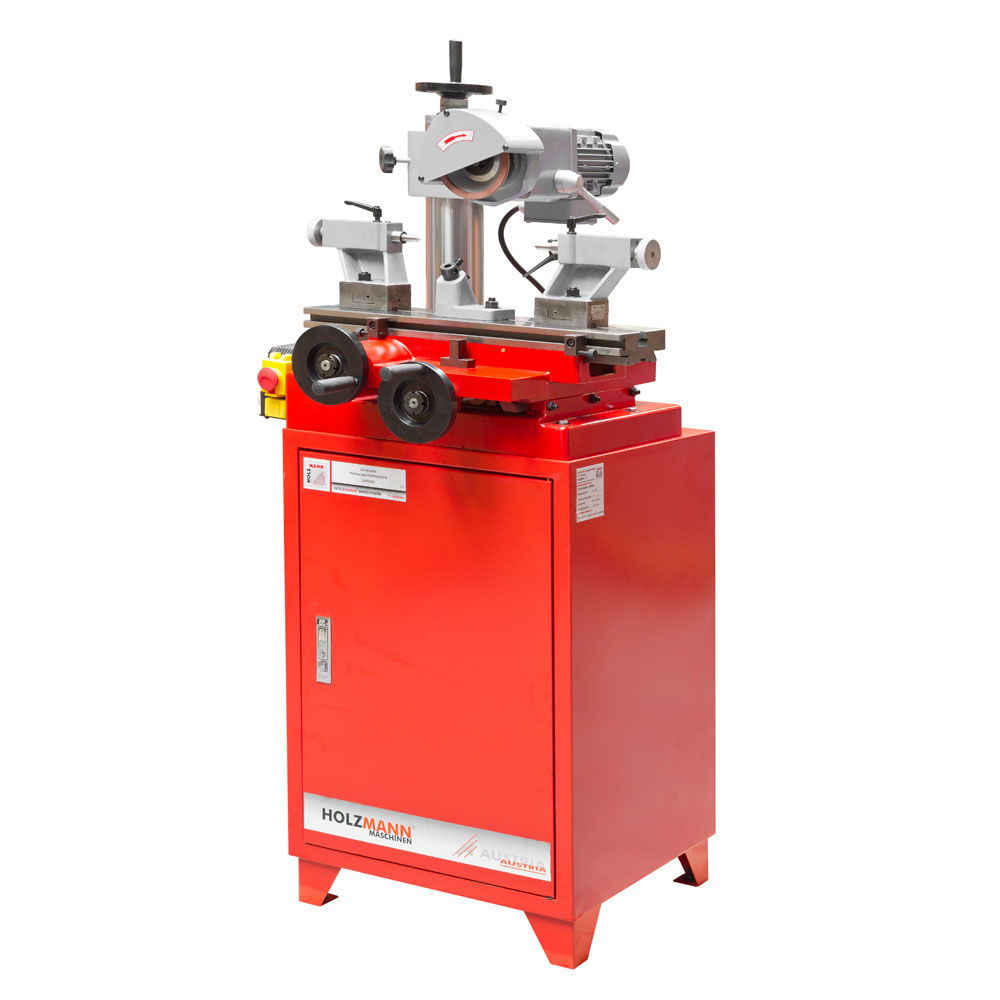

Universal tool grinding machine
This versatile tool grinding machine is designed for the precise grinding and sharpening of drills, milling cutters, turning tools, and other tools . Its robust, vibration-free construction ensures smooth operation and precise grinding results in daily workshop use.
Large handwheels allow for smooth and precise adjustment. The flexibly swiveling grinding head can be adjusted vertically from +40° to -40° and horizontally from +50° to -50°, thus offering a high degree of adaptability for different grinding tasks.
The included drive unit with a 3-jaw chuck (Ø 80 mm) also enables the cylindrical grinding of shafts . With a maximum grinding diameter of 125 mm and a grinding length of up to 320 mm, the machine is also suitable for larger workpieces. Sharpening twist drills from 5–32 mm is also easily possible.
A stable base with integrated tool compartment is included as standard and ensures order and ergonomic working.
Technical data
Motor
-
Motor power S1: 180 W
-
Voltage: 400 V
Grind
-
Max. grinding diameter: 125 mm
-
Max. grinding length: 320 mm
-
Twist drill sharpening range: 5–32 mm
Weight
-
Net weight: 208 kg
-
Gross weight: 266 kg
Shipping dimensions
-
Height: 930 mm
-
Width: 720 mm
-
Length: 1,090 mm
EAN
Scope of delivery
-
base
-
Tailstock right and left
-
Spring stop
-
Adjustable table stops
-

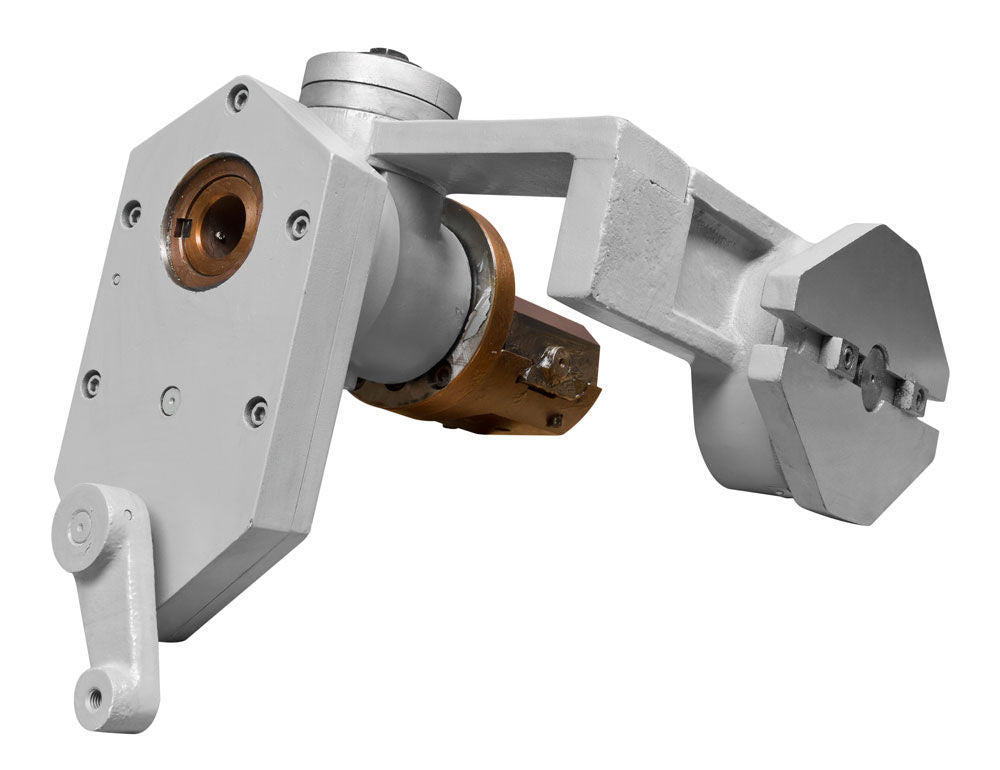

Spiral drill grinding attachment
-

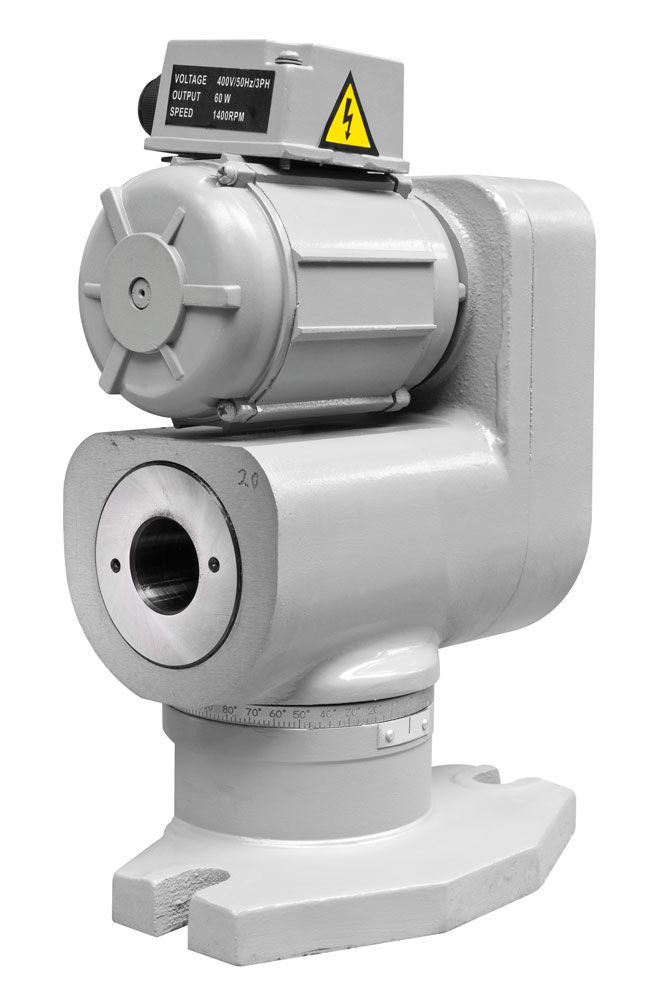

Drive unit with 3-jaw chuck Ø 80 mm
-
Standard tip 60° and half tip 60°
-
1 cup wheel and 1 diamond cup wheel (125 × 35 × 32 mm)
-
1 straight grinding wheel and 1 disc wheel (125 × 15 × 32 mm)
-
lathe tool holder
-
Milling mandrels Ø 16, 22, 32 mm
-
Operating tool
