| Cooling: |
air-cooled
|
| Maximum power: |
7.9 kVA at 400V / 6 KW at 230V
|
| Oil capacity: |
1.65 L
|
| Continuous power output: |
7.5 kVA at 400 V / 5.5 kW at 230 V
|
| Weight [kg]: |
152
|
| Fuel type: |
Diesel
|
| Engine power: |
12 hp
|
| Speed: |
3000 rpm
|
| Fuel consumption at 50% load: |
1.3
|
| Voltage / Volts: |
50Hz / 230 and 400V
|
| Volume: |
72 dB (A) (7M)
|
| Connections: |
1x socket (230 V ; 32 A) , 1x socket (400 V ; 16 A)
|
| ATS function: |
Yes
|
| Voltage regulation: |
AVR (1.5% tolerance)
|
| Tank capacity: |
14 liters
|
| Starter type: |
Electric starter |
The device can be switched on with an electric starter and can then be operated with 230V.
Even devices with sensitive electronics can be operated with the 8000D-T, as the generated voltage is readjusted by the AVR voltage regulation to have a maximum deviation of 1.5%.
The ATS connection allows an ATS box to be connected, which means the generator can be started automatically in the event of a power failure.
Type:
Single-phase / Three-phase
Max. power (230 V / 400 V):
6 kW / 7.9 kVA
Continuous power output (230 V / 400 V):
5.5 kW / 7.5 kVA

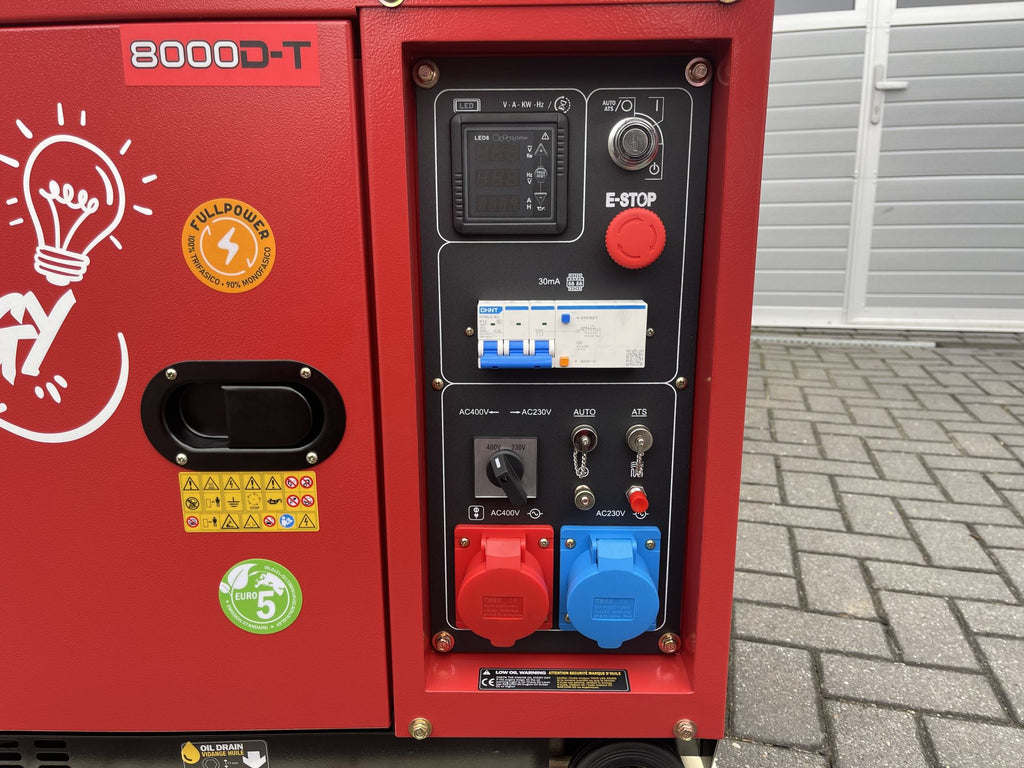

Display:
LED (kW, V, A, Hz, hour meter)
Battery:
Starter battery included
Connections:
1x CEE 16 A / 400 V
1x CEE 32 A / 230 V
1x ATS interface
Noise level at 7 meters:
72 dB(A)
Fuel consumption at 50% load:
1.3 L/hour

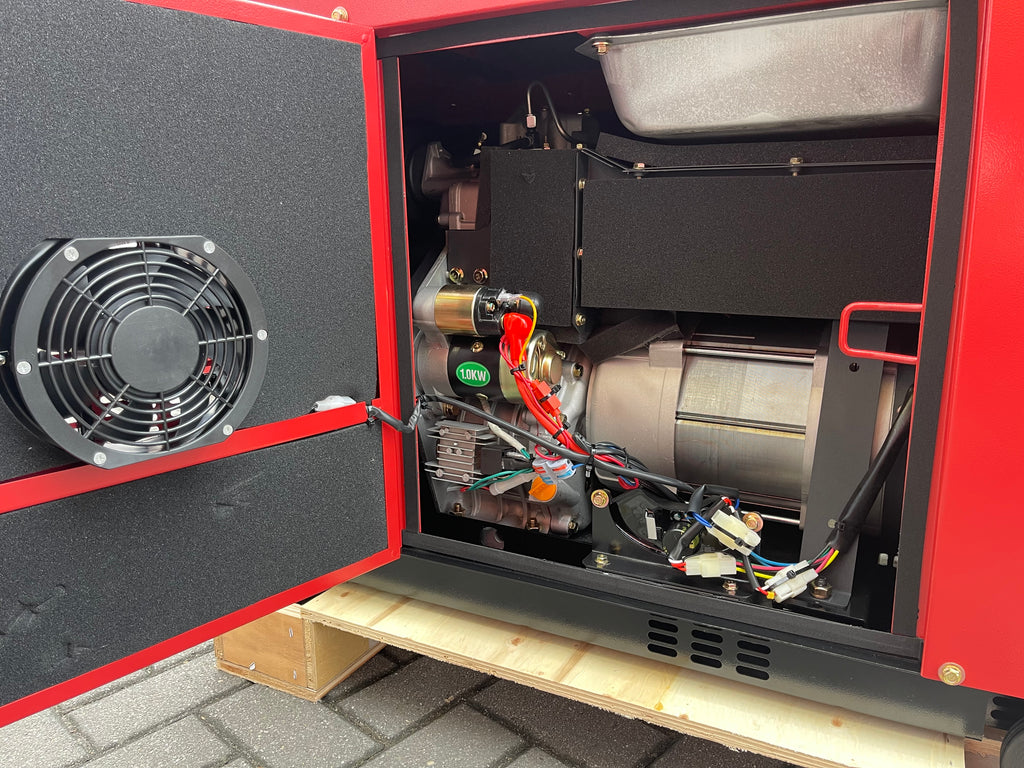

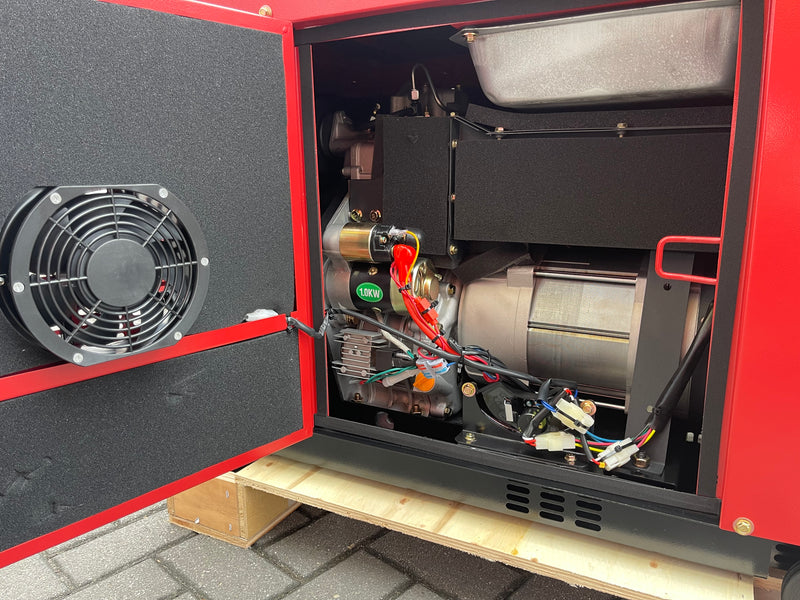

Motor:
4-stroke diesel engine
Engine displacement:
498 cm³
Starter type:
Electrically
Dimensions:
920 x 520 x 760 mm
Dry weight:
152 kg
Scope of delivery:

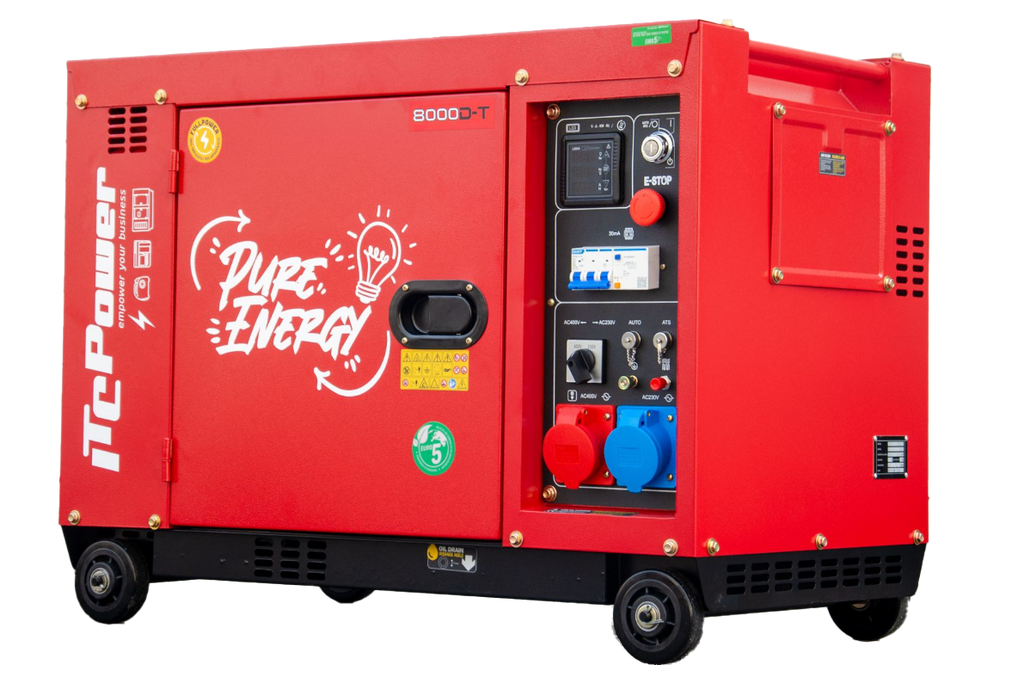

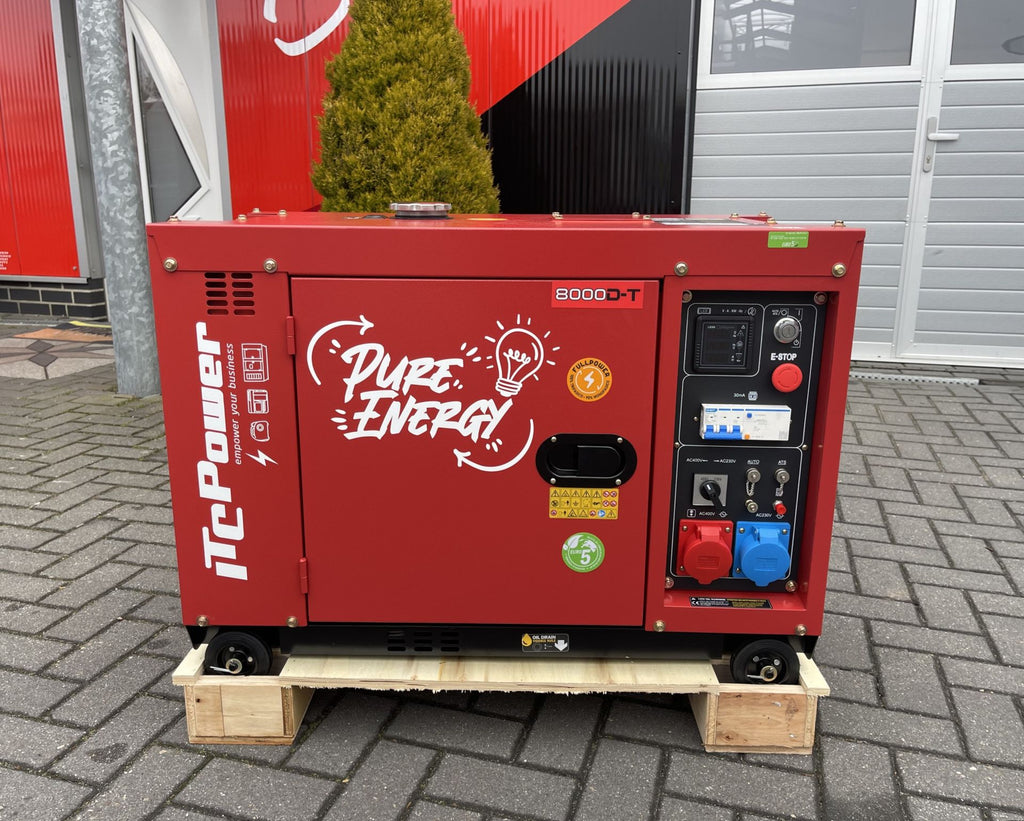

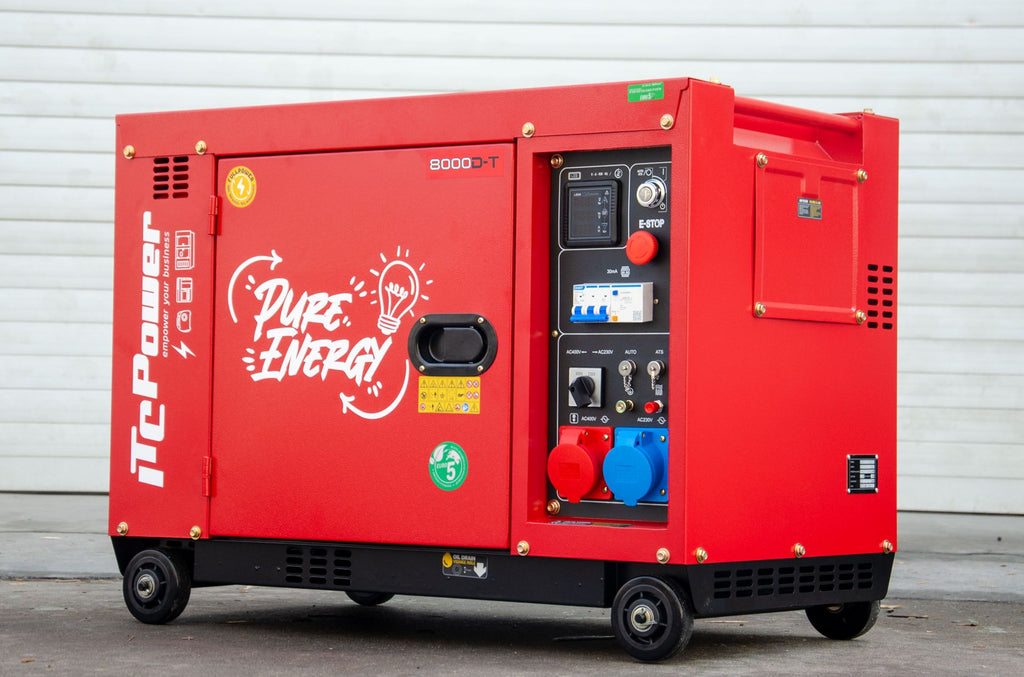

1x 8 kVA diesel generator 8000D-T
1x Instruction manual
1x battery
