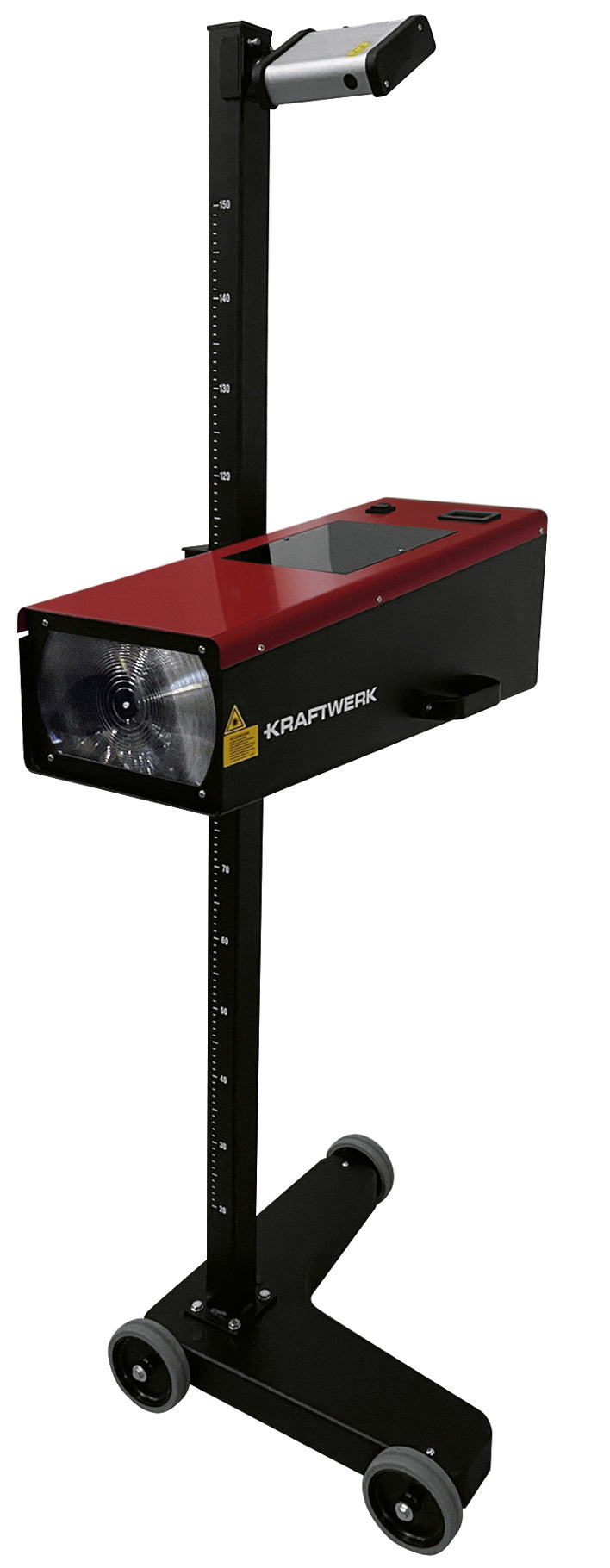

Mechanical headlight aiming device complete with analog
or digital lux meter, mirror sight.
Column: Height 1700 mm, working height 250-1450 mm, attached to the base
Sliding system with spring stop
Base: 3 wheels, steel weight base
Sight: Mirror sight
Optical box: injection-molded plastic, Fresnel lens, digital lux meter, AA battery for lux meter
Measuring range: upwards 2%; downwards 4%, left 6%/right 6%
Light intensity: 0 ~ 150,000 cd
Measurement accuracy: Control of light intensity HB/LB ±5%
Available options:
/L1 = Laser pointer - lens center
/LL = Laser sight
/L2 = combined laser sight + pointer
/R = Monorail kit
/Y = Two-part column
Specifications
- PRO LINE product line
- Length (mm) 710
- Width (mm) 650
- Height (mm) 1700
- Net weight 32
- EAN Code 7612206160865
- Country/Region ITA
- Commodity code (IntrastatCommodity) 90.31.49.90.00
