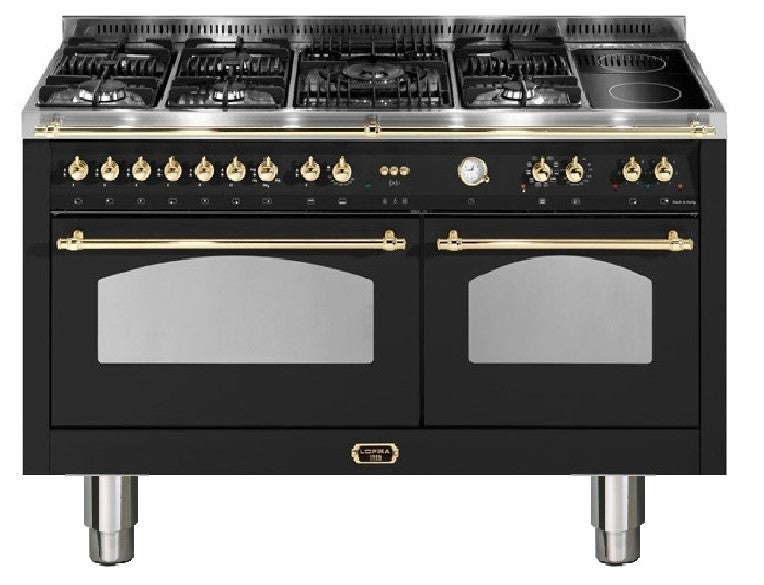

Range Cooker Double Oven
150 cm wide, rotisserie, 2-way telescopic extension,
2 electric ovens with 7 burner gas hob and
2 ceramic cooking zones, black/brass
equipment
• solid metal gags
• robust powder-coated metal housing
• Height-adjustable round feet (85-90 cm)
• Splash guard on the hob (6 cm high)
• Case cooling
• Baking chambers with blue EASY-TO-CLEAN enamel

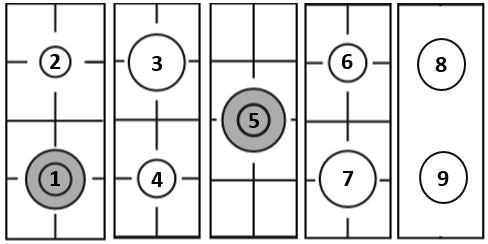

Equipment 7 burner gas hob +
Ceramic hob with 2 heat zones
• Hob with 4 cm stainless steel frame
• 1 x three-ring WOK burner with 4.50 kW
• 1 x wok burner with 3.90 kW
• 2 x powerful burners with 2.80 kW
• 2 x standard burners with 1.75 kW
• 1 x small burner 1.1 kW
• 4 cast iron pot supports
• Electric one-hand ignition for all burners
• Thermoelectric ignition protection
• 2 x ceramic heating zones with 0.80 kW
Equipment large oven
• Analog clock with programmable timer
• Triple-glazed oven door
• Electric grill
• Rotisserie
• Baking chamber (95 Ltr) with easy-clean enamel
• 2-way telescopic extension
• 1 baking tray and 2 racks
Large oven (multifunction)
• Oven lighting, bottom heat, top heat
Top and bottom heat, small grill + rotisserie,
Large grill + rotisserie, defrosting,
Large grill + fan + rotisserie,
Circulating air (top and bottom heat + fan,
Hot air (fan with ring heater)
Standard oven
• Oven lighting, bottom heat, top heat
Top & bottom heat, small grill with rotisserie,
Large area grill with rotisserie, large area grill with
Fan and rotisserie, circulating air, hot air, defrosting
• 2-way telescopic extension
• Triple-glazed oven door
• Baking chamber (70 Ltr) with easy-clean enamel
• 1 baking tray and 2 racks
Connection data
• Gas connection value: 18.6 kW
• Electrical connection value: 7.1 kW
• Recommended connection: 220-240/400V 3N ~ 50-60Hz
in cooker connection box (cable, without plug)
Logistical data
• Weight: 173 kg

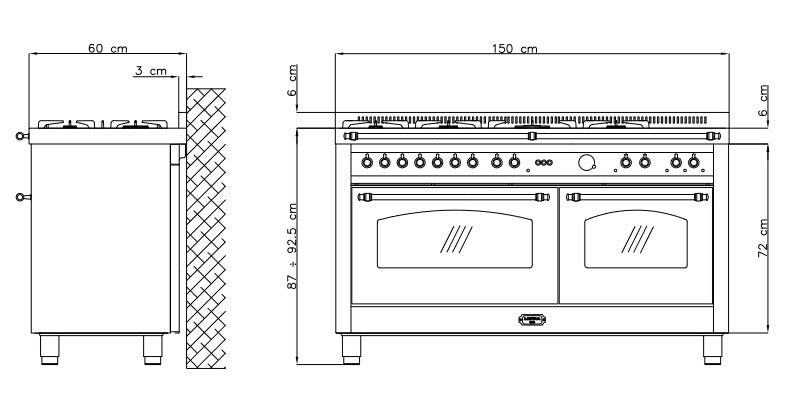

• Device dimensions: 150 x 60 x 85 - 90.5 (WxDxH) cm
Special accessories (optional) not included in delivery
• Stainless steel skirting board 150 cm
10 cm height - Art. No.
13.5 cm height - Art. No.
• Height-adjustable feet (12 - 19 cm)
Item No. 03170438
(if work surface higher than 90.5 cm)
