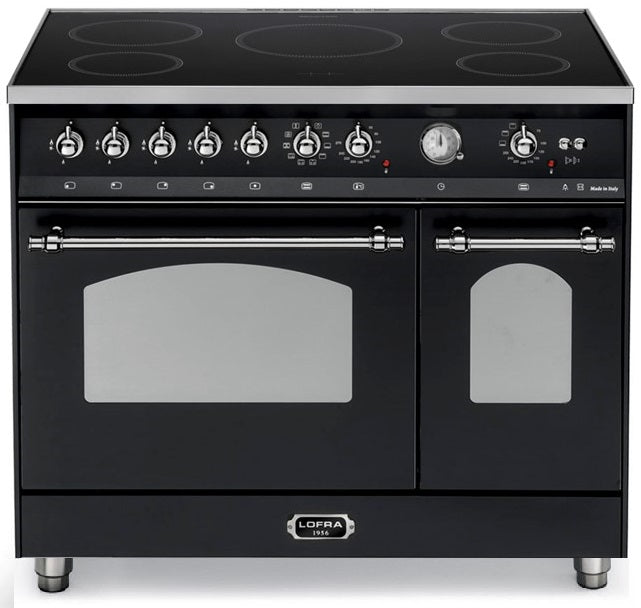

Range Cooker Double Oven
90 cm wide, rotisserie, 2-way telescopic extension,
5 induction cooking zones with booster, black/chrome finish
WITHOUT UPSTAND (rear)
for INSTALLATION in ISLAND SOLUTIONS
also available with brass or bronze finish
equipment
• solid metal gags
• robust powder-coated metal housing
• Height-adjustable round feet (85-90 cm)
• Case cooling
• Baking chambers with blue EASY-TO-CLEAN enamel

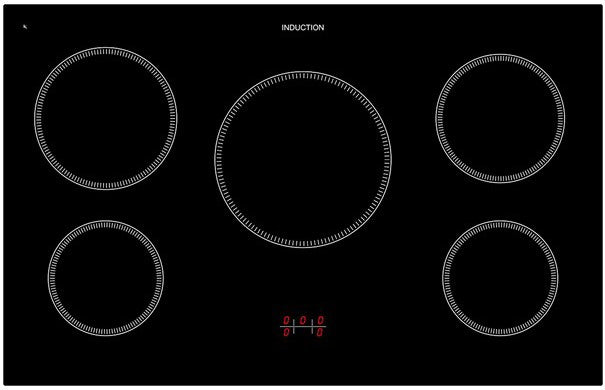

Induction glass ceramic hob
• Hob with 4 cm stainless steel frame

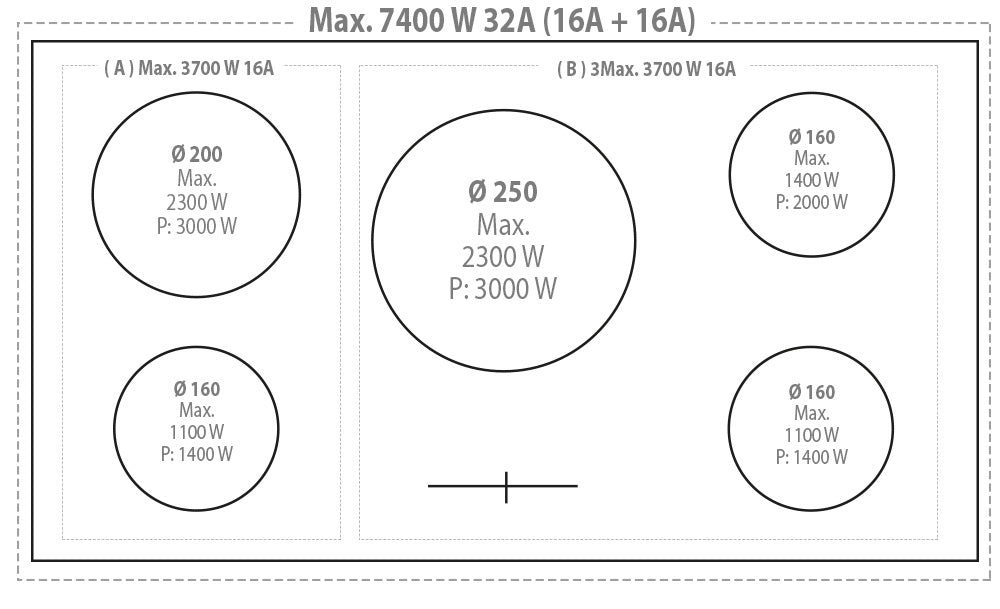

• 5 induction cooking zones with booster
• 2 Ø 170, power: 1100W Boost function: 1400W
• 1 Ø 190, Power: 1400W Boost function: 2000W
• 1 Ø 210, power: 2300W Boost function: 3000W
• 1 Ø 260, power: 2300W Boost function: 3000W
• Parental controls
• Residual heat indicator
Features Large oven
• Multi-function oven (9 functions)
• Dimensions: 47.9 x 40 x 36.9 (width x depth x height in cm)
• Temperature range approx. 50 - 270 degrees
• Analog clock with programmable timer
• Triple-glazed oven door
• Rotisserie
• Baking chamber (72 Ltr) with easy-clean enamel
• 2-way telescopic extension
• 1 baking tray and 2 racks
Large oven (multifunction)
• Oven lighting, bottom heat, top heat
Top and bottom heat, small grill + rotisserie,
Large grill + rotisserie, defrosting,
Large grill + fan + rotisserie,
Circulating air (top and bottom heat + fan,
Hot air (fan with ring heater)
Small oven (conventional heating)
• Conventional heating with 4 functions
Top and bottom heat, bottom heat,
Top heat and grill
• Lighting and rotisserie can be switched on separately
• Dimensions: 23 x 40.8 x 36.9 (width x depth x height in cm)
• Temperature range approx. 70 - 250 degrees
• Baking chamber (35 Ltr) with easy-clean enamel
• Triple-glazed oven door
• Rotisserie
• 1 baking tray and 1 rack
Connection data
• Connected load: 15.2 kW
• Recommended connection: 220-240/400V 3N ~ 50-60Hz
in cooker connection box (without cable, without plug)
Logistical data
• Weight: 92 kg
• Packaging dimensions: 98 x 68 x 88 (WxDxH) cm

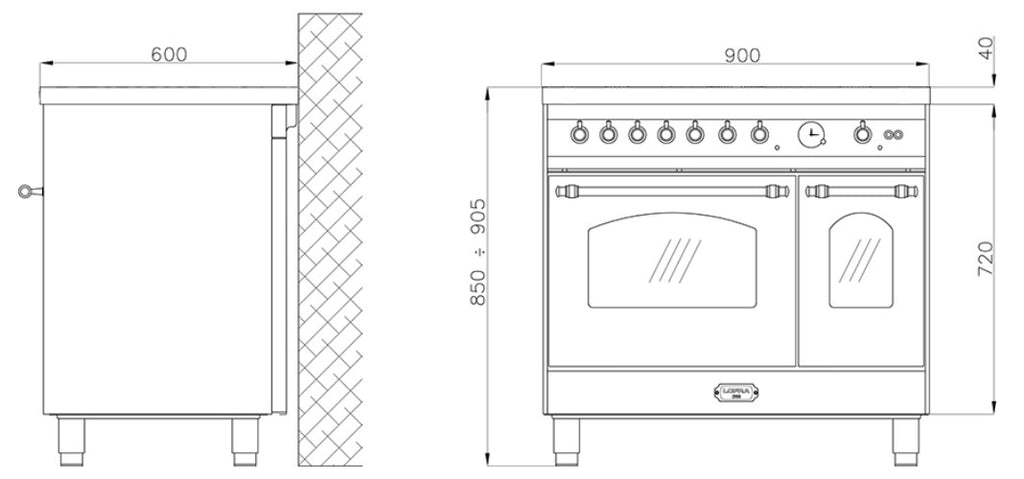

• Device dimensions: 90 x 60 x 85 - 90.5 (WxDxH) cm
