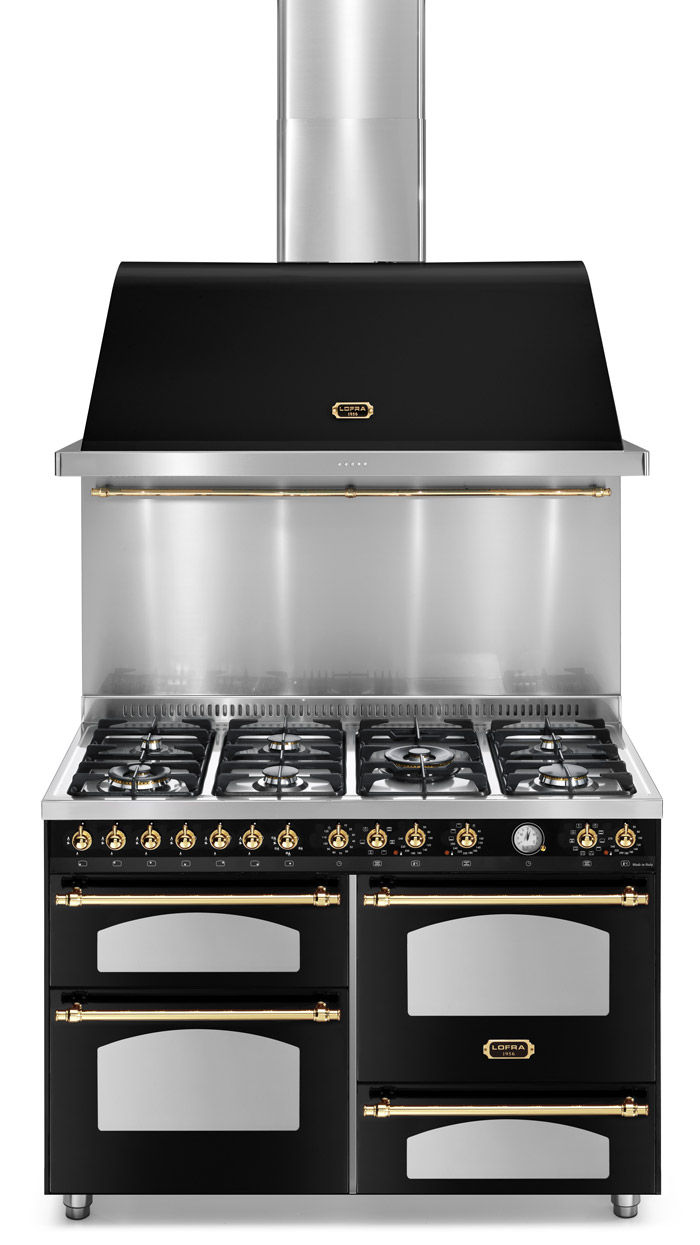

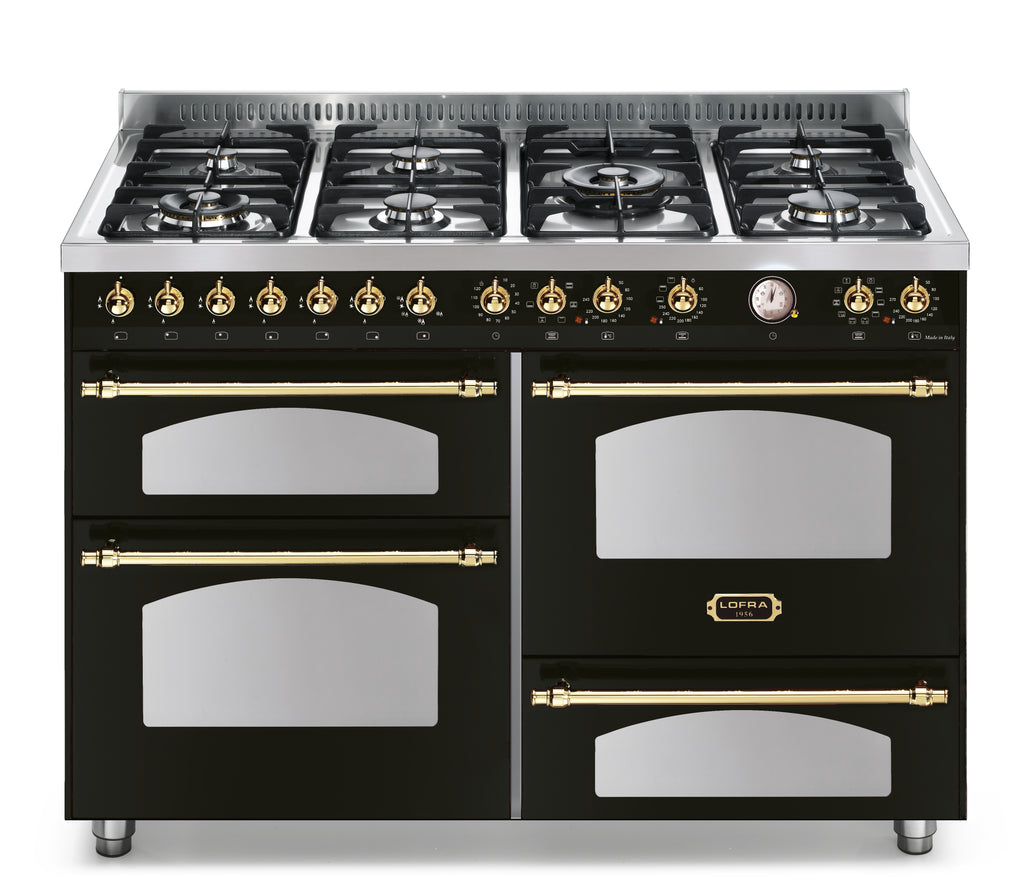

DOLCE VITA Range Cooker QUATTROPORTE
120 cm wide, rotisserie, 2-way telescopic extension,
3 electric ovens + storage compartment,
7-burner gas hob, black/brass finish
equipment
• solid metal gags
• robust powder-coated metal housing
• Height-adjustable round feet (90-92 cm)
• Splash guard on the hob (6 cm high)
• Case cooling
• Baking chambers with blue EASY-TO-CLEAN enamel

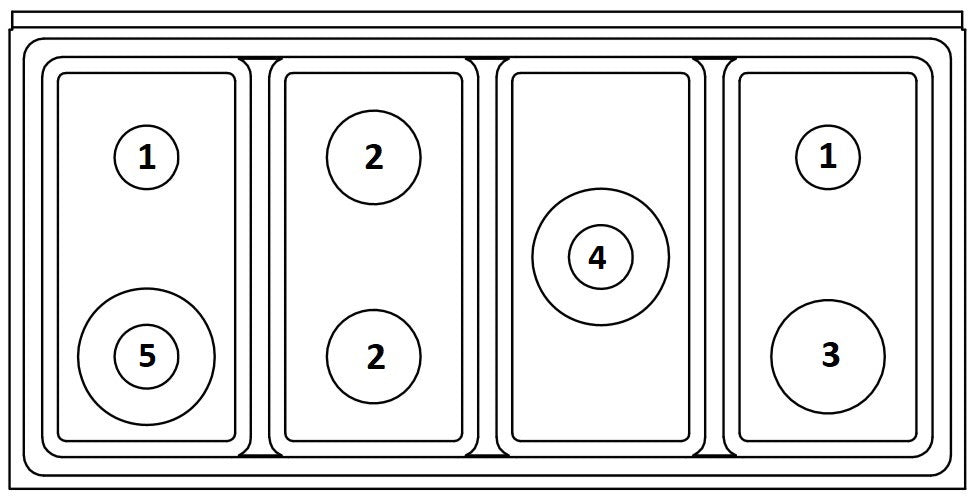

Features 7 burner gas hob
• Hob with 4 cm stainless steel frame
• 2 x triple-ring WOK burners with 4.50 kW (4)
• 1 x powerful burner with 2.80 kW (3)
• 2 x standard burners with 1.75 kW (2)
• 2 x small burners 1.1 kW (1)
• 4 cast iron pot supports
• Electric one-hand ignition for all burners
• Thermoelectric ignition protection
Equipment multifunctional oven 70l (top right)
• 10 functions: lighting, bottom heat, top heat,
Top & bottom heat, small grill with rotisserie,
Large area grill with rotisserie, large area grill with
Fan and rotisserie, circulating air, hot air, defrosting
• Analog clock with programmable timer
• 2-way telescopic extension
• 1 baking tray, 1 combi rack, 1 rack
Storage space 40 l (bottom right)
Equipment: 70 l convection oven (bottom left)
• 6 functions: lighting, bottom heat, top &
Bottom heat, fan-assisted oven, grill, grill with fan
• Electric grill
• 1 baking tray, 1 combi rack
Equipment grill oven 40 l (top left)
• 5 functions: top & bottom heat, bottom heat,
Top heat, grill, lighting
• 1 baking tray, 1 combi rack
• Electric grill
• Triple-glazed oven door
Connection data
• Gas connection value: 15.9 kW
• Electrical connection value: 4.35 kW
• Recommended connection: 220-240/400V 3N ~ 50-60Hz
in cooker connection box (cable, without plug)
Logistical data
• Weight: 106 kg

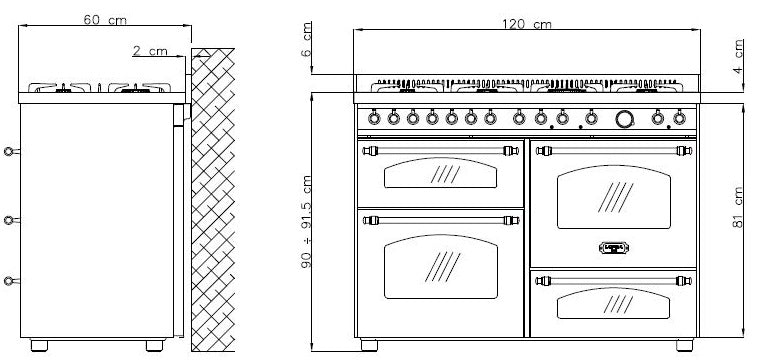

• Device dimensions: 120 x 60 x 85 - 90.5 (WxDxH) cm
