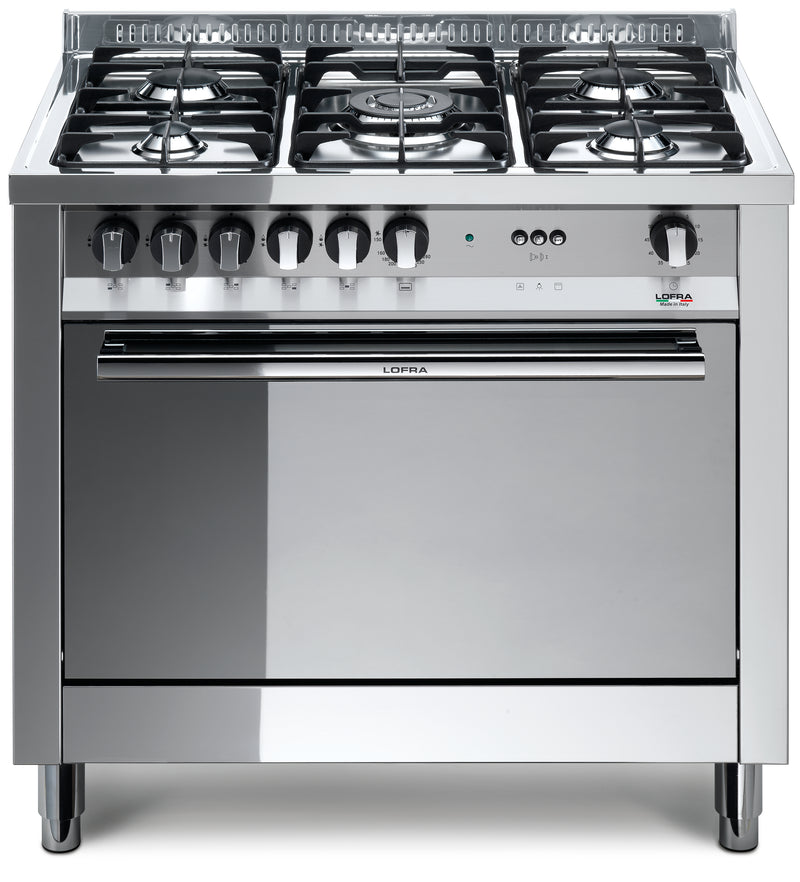

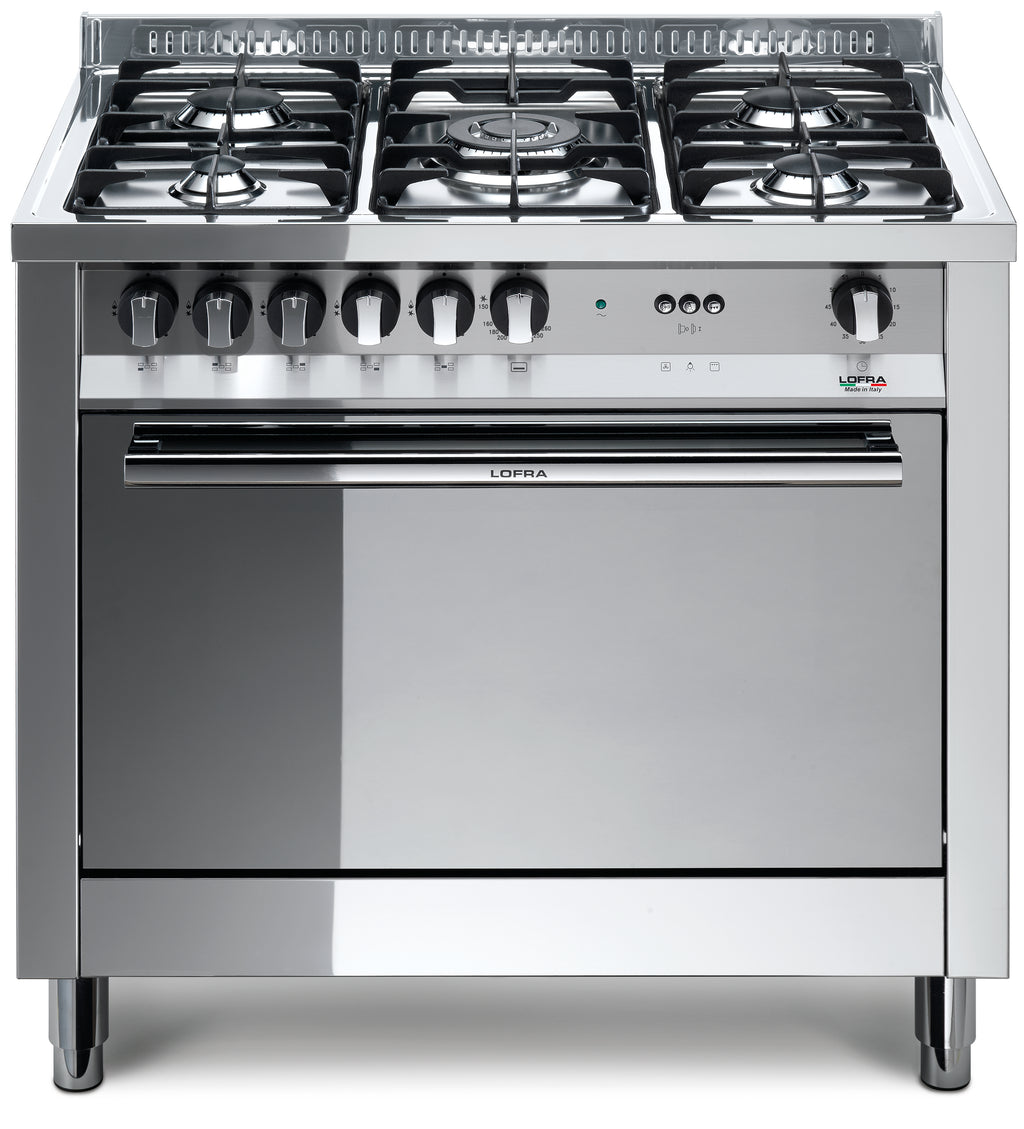

MAXIMA Range Cooker Single Oven
90 cm wide, gas oven with electric grill, timer,
5-burner gas hob with high-quality gas burners
equipment
• height-adjustable round feet
• Splash guard on the hob
• Case cooling
• Polished stainless steel
• Baking chamber with EASY-TO-CLEAN enamel
5-burner gas hob
• 2 powerful burners with 2.80 kW
• 1 small burner with 1.10 kW
• 1 standard burner with 1.75 kW
• 1 triple-ring WOK burner with 3.70 kW
• Stainless steel surface
• cast iron pot supports
• electric one-hand spark ignition
• Safety valves

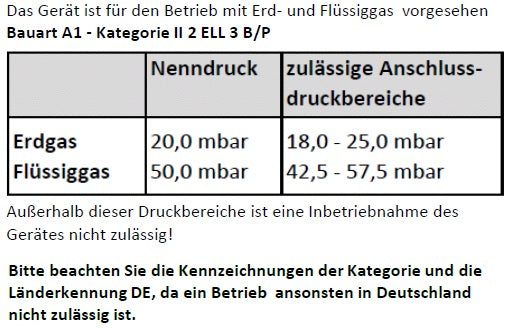

• Set to natural gas (20 mbar)
Liquid gas nozzles 50 mbar included
Oven equipment
• Timer
• Triple-glazed oven door
• electric one-hand spark ignition
• Safety valves
• Electric grill
• Baking chamber (95 Ltr) with easy-clean enamel
Functions
• Gas heating with circulating air
• Grill (electric)
• Oven lighting
Connection data
• Gas connection value: 12.15 kW
• Electrical connection value: 3.07 kW
• Recommended connection: 220-240V ~ 50-60 Hz
• Cable without plug
Logistical data
• Weight: 79.1 kg
• Packaging dimensions: 98 x 68 x 88 (WxDxH) cm

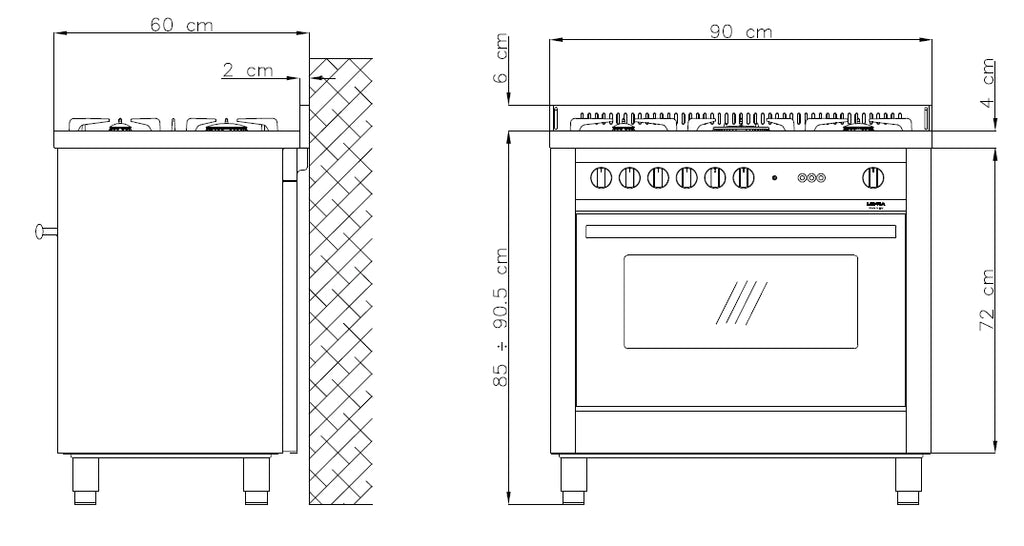

• Device dimensions: 90 x 60 x 85 - 90.5 (WxDxH) cm
Special accessories (optional)
• Cast iron grill plate
Item No. 03190116
• Stainless steel TEPPANYAKI
Item No. 03170296
• WOK ring
Item No. 03190152
• Height-adjustable feet (12 - 19 cm)
Item No. 03170438
Additional accessories such as baking trays, glass lids, racks,
Skirting boards and back panels on request.
