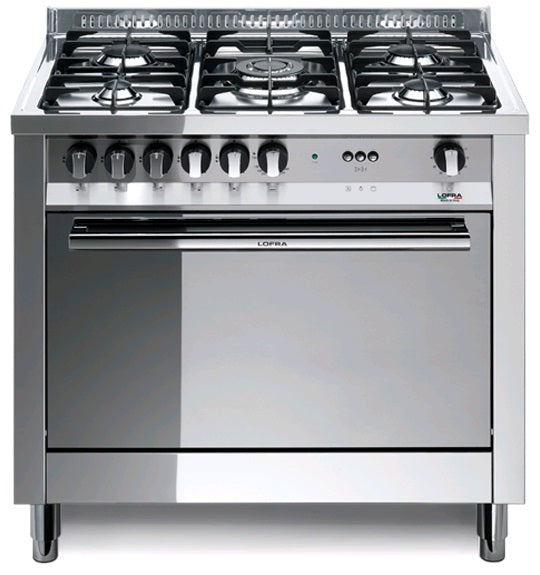

Range Cooker Single Oven
90 cm wide, 9 multifunctions,
5-burner gas hob with high-quality gas burners
equipment
• height-adjustable round feet
• Splash guard on the hob
• Case cooling
• Baking chamber with EASY-TO-CLEAN enamel
5-burner gas hob
• 2 powerful burners with 2.80 kW
• 1 small burner with 1.10 kW
• 1 standard burner with 1.75 kW
• 1 triple-ring WOK burner with 3.70 kW
• Stainless steel surface
• cast iron pot supports
• electric one-hand spark ignition
• Safety valves

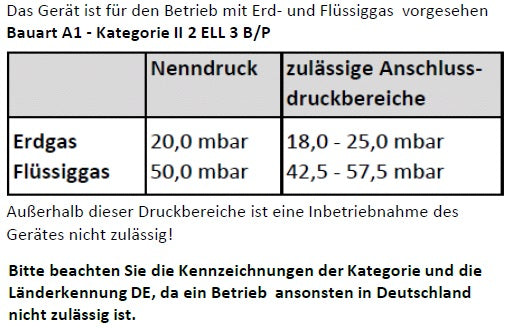

• Set to natural gas (20 mbar)
Liquid gas nozzles 50 mbar included
Oven equipment
• Timer
• Triple-glazed oven door
• Electric grill
• Baking chamber (95 Ltr) with easy-clean enamel
9 multifunctions
• Oven lighting, bottom heat, top heat,
Top and bottom heat, small area grill,
Large area grill, large area grill + fan
Circulating air (top and bottom heat + fan),
Hot air (with ring heater), defrosting
Connection data
• Connected load: 3090 W
• Cable without plug
Logistical data
• Weight: 79.1 kg
• Packaging dimensions: 98 x 68 x 88 (WxDxH) cm

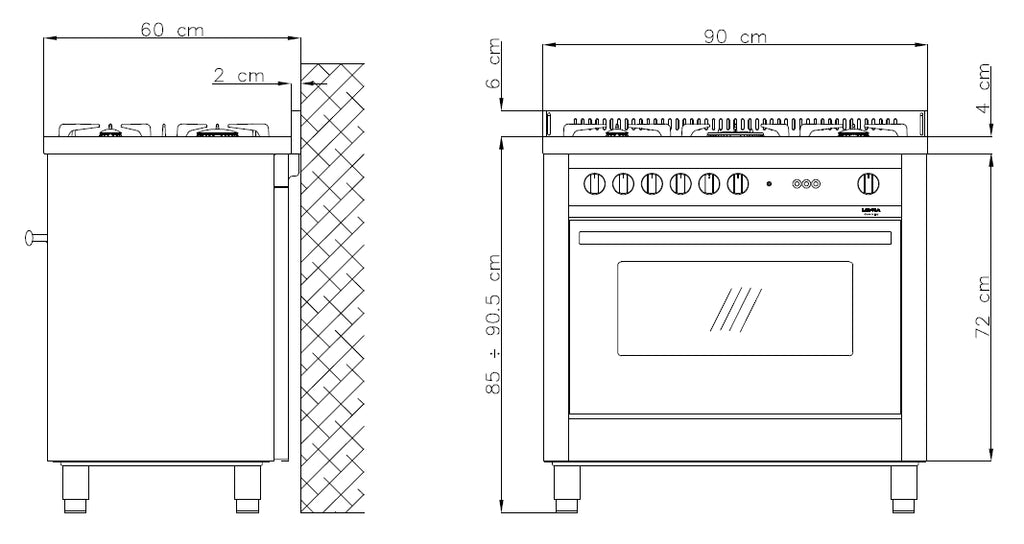

• Device dimensions: 90 x 60 x 85 - 90.5 (WxDxH) cm
Special accessories (optional) not included in delivery
• Cast iron grill plate
Item No. 03190116
• Stainless steel TEPPANYAKI
Item No. 03170296
• WOK ring
Item No. 03190152
• Height-adjustable feet (12 - 19 cm)
Item No. 03170438
Additional accessories such as baking trays, glass lids, racks,
Skirting boards and back panels on request.
