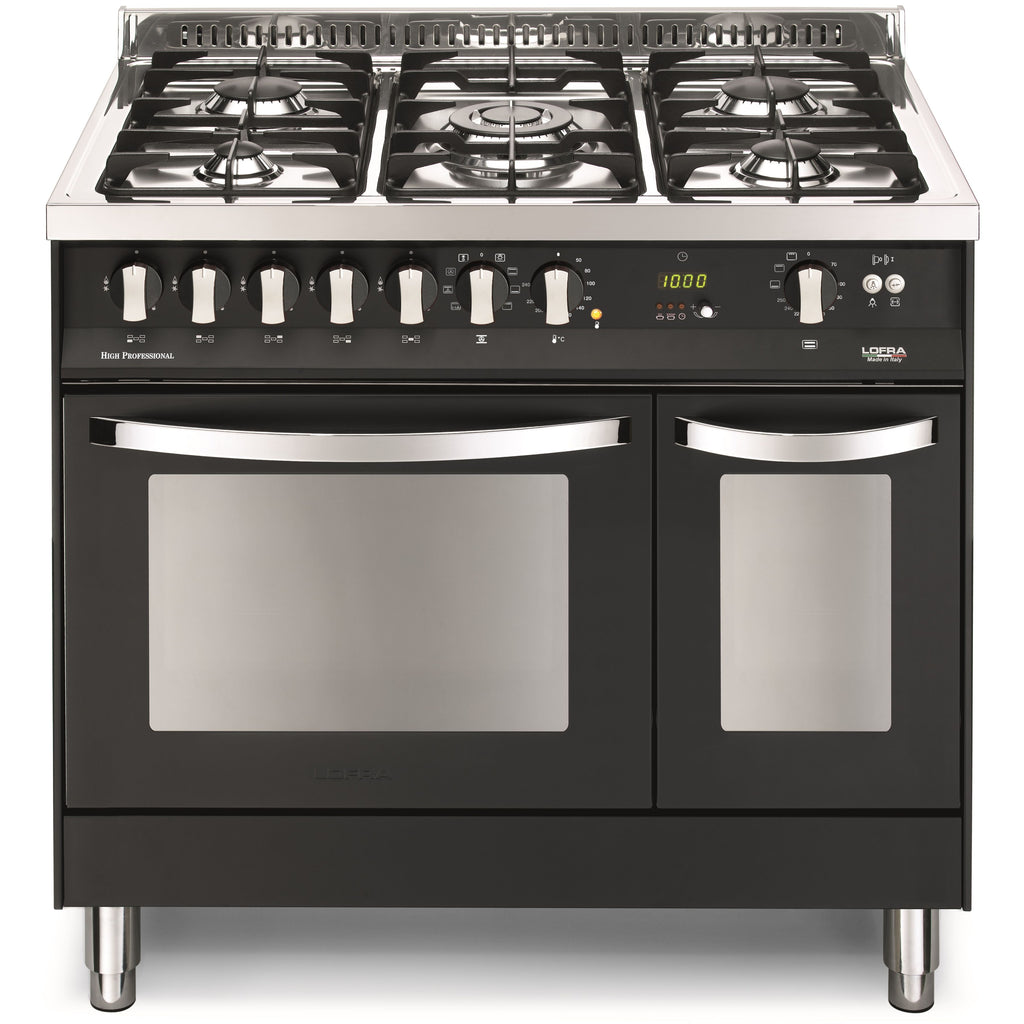

LOFRA - RAINBOW - DOUBLE OVEN 90 cm - PNMD 96 MFTE / C - Black

RAINBOW LINE Range Cooker Double Oven, 90 cm wide,

2-fold telescopic pull-out, 5-burner gas hob with high-quality gas burners

equipment

• height-adjustable round feet (85 - 90.5 cm)

• Splash guard on the hob (6 cm high)

• Case cooling

• Baking rooms with EASY-TO-CLEAN enamel

5-burner gas hob

• Stainless steel top (4 cm) with energy-saving burners

• 2 powerful burners with 2.80 kW

• 1 small burner with 1.10 kW

• 1 standard burner with 1.75 kW

• 1 triple-ring WOK burner with 3.70 kW

• Stainless steel surface

• cast iron pot supports

• electric one-hand spark ignition

• Safety valves

Features large oven

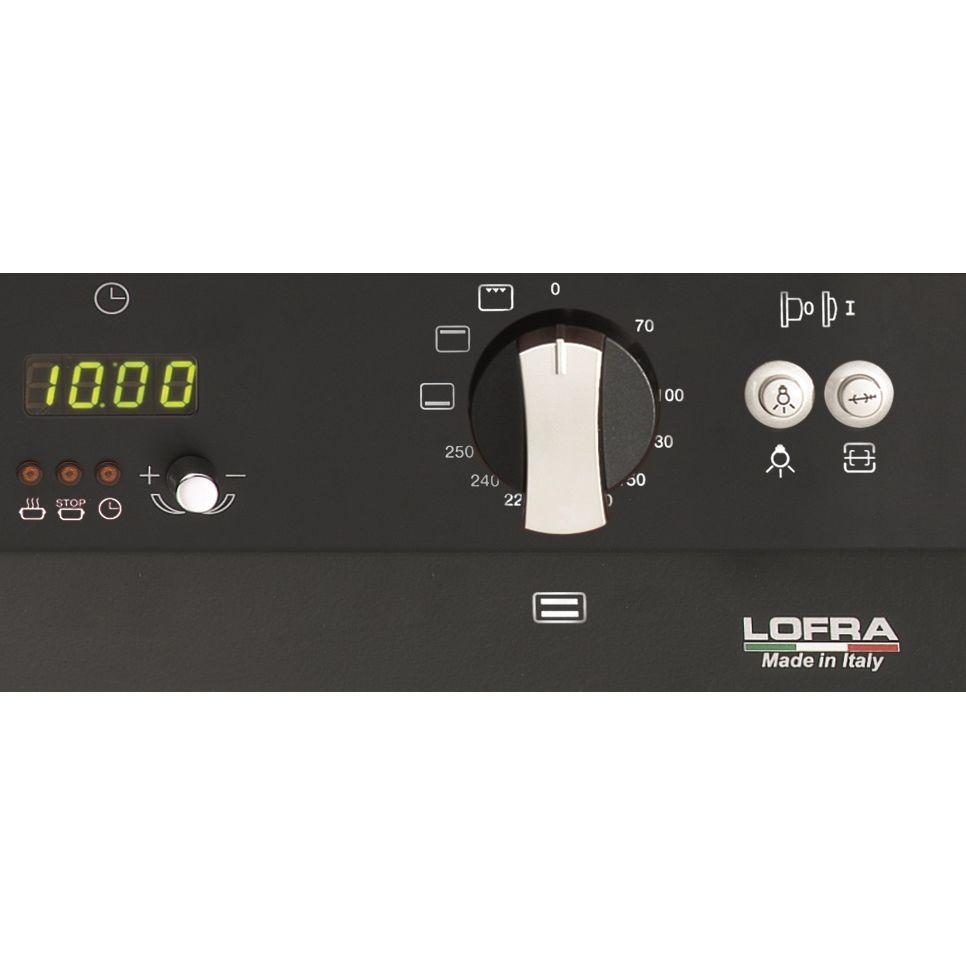

• Digital clock with timer function

• Triple-glazed oven door

• Electric grill

• Baking chamber (70 Ltr) with easy-clean enamel

• 2-way telescopic extension

• 1 baking tray and 2 racks

Large oven (multifunction 9)

• Oven lighting, bottom heat, top heat,

Top and bottom heat, small area grill,

Large area grill, defrosting, large area grill + fan,

Circulating air (top and bottom heat + fan, hot air

(with ring heater)

Small oven (conventional heating)

• 4 functions: bottom heat, top heat, grill, lighting

• Baking chamber (30 Ltr) with easy-clean enamel

• Triple-glazed oven door

• Electric grill

• 1 baking tray and 1 rack

Connection data

• Connected load: 12.15 kW

• Electrical connection value: 4.35 kW

• Recommended connection: 220-240/400V 3 N ~ 50 Hz

• Cable without plug

Logistical data

• Weight: 92 kg

• Packaging dimensions: 98 x 68 x 88 (WxDxH) cm

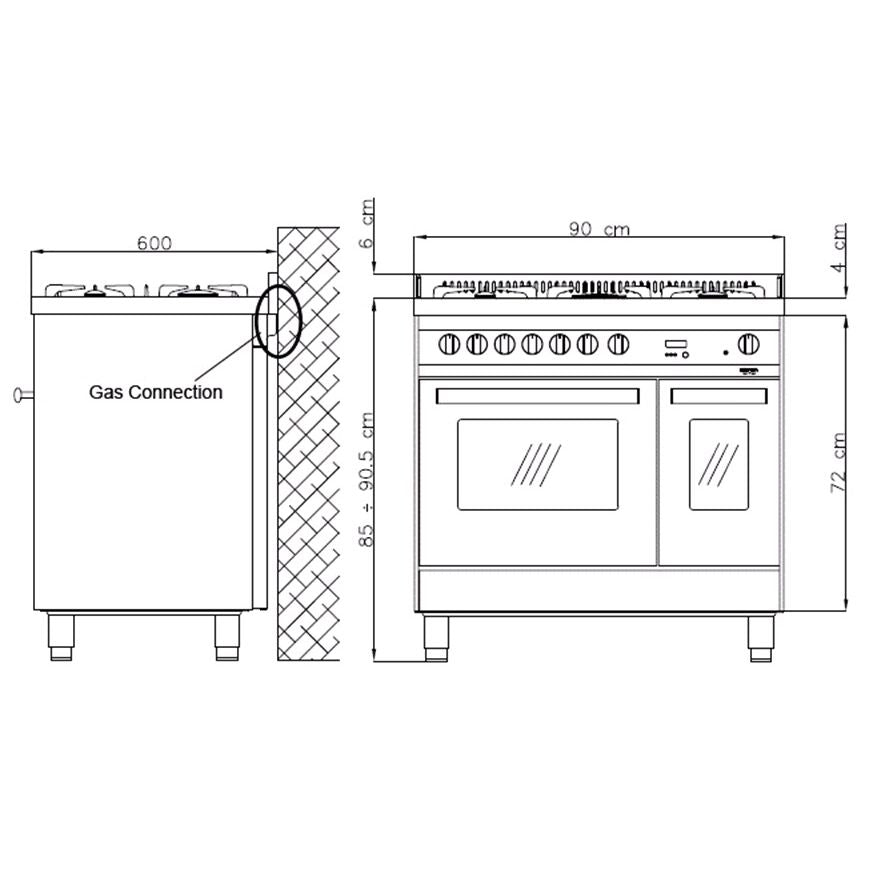

• Device dimensions: 90 x 60 x 85 - 90.5 (WxDxH) cm

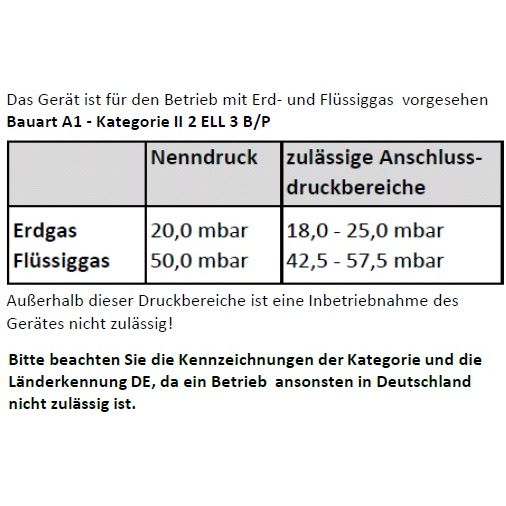

The device is designed for operation with natural and liquefied gas Type A1 - Category II 2 ELL 3 B/P

Natural gas: 20.0 mbar nominal pressure | 18.0 mbar - 25.0 mbar permissible connection pressure range

LPG: 50.0 mbar nominal pressure | 42.5 mbar - 57.5 mbar permissible connection pressure range
