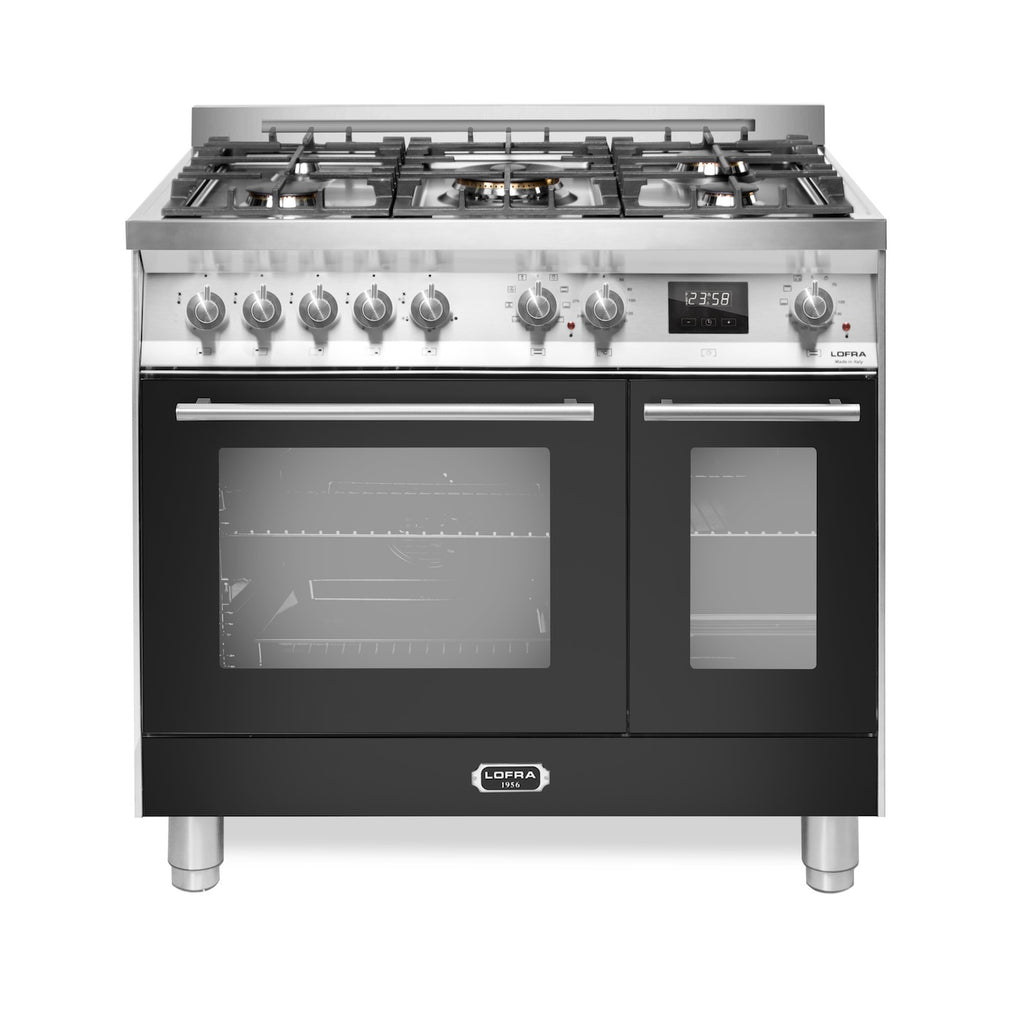

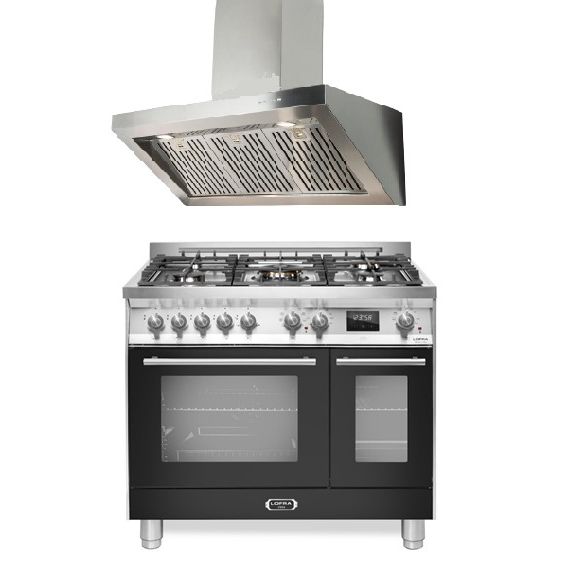

Range cooker 90 cm wide, rotisserie, 2-way telescopic extension,
5-burner gas hob and Elisir extractor hood
Equipment / Range Cooker
• High-quality metal knobs / handles
• Splash guard on the hob
• height-adjustable round feet
• Case cooling
• Blue enameled baking chamber
5-burner gas hob
• 1 triple-ring WOK burner with 4.2 kW
• 2 powerful burners with 3.0 kW
• 1 standard burner with 1.75 kW
• 1 small burner with 1.0 kW
• Stainless steel surface
• cast iron pot supports
• electric one-hand spark ignition
• Safety valves
Connection data
• Connected load: 4270 W
• Cable without plug
Logistical data
• Weight: 92 kg
• Packaging dimensions: 98 x 68 x 88 (WxDxH) cm

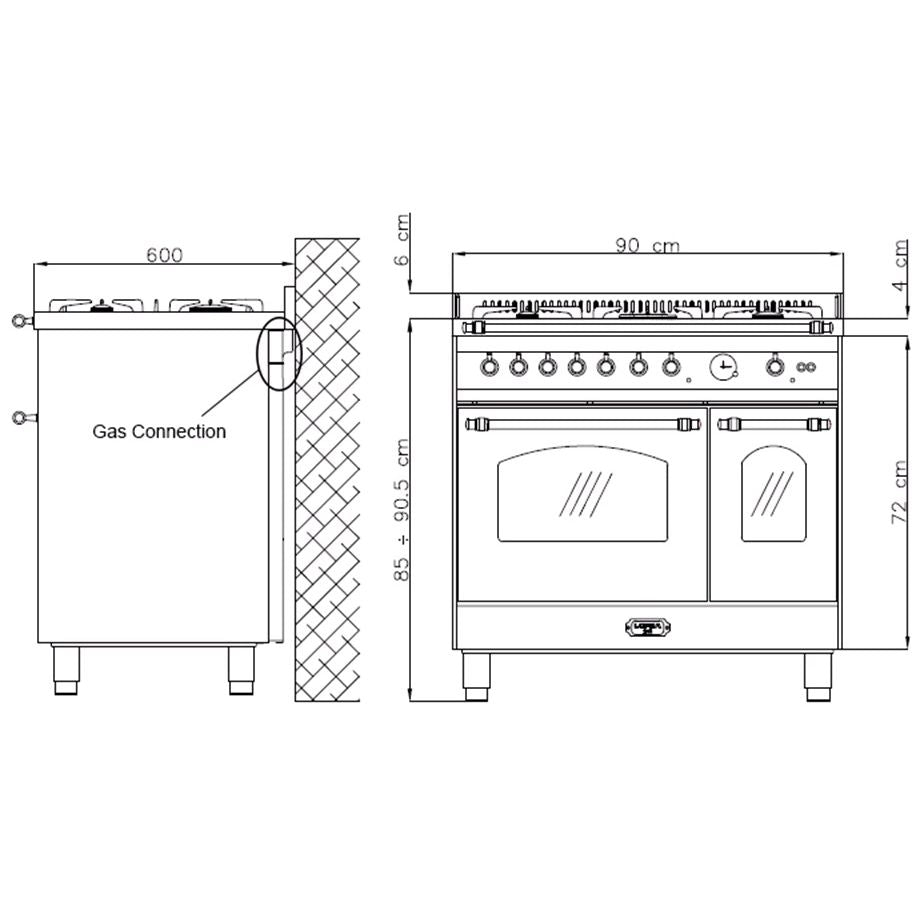

• Device dimensions: 90 x 60 x 85 - 90.5 (WxDxH) cm
Features Large oven
• Touch Control Timer (for main oven)
• Triple-glazed oven door
• Rotisserie
• Electric grill
• Baking chamber (70 Ltr) with easy-clean enamel
• 2-way telescopic extension
• 1 baking tray with combi rack and 1 large rack
Large oven (multifunction 10)
• Oven lighting, bottom heat, top heat
Top and bottom heat, small grill + rotisserie,
Large grill + rotisserie, defrosting,
Large grill + fan + rotisserie,
Circulating air (top and bottom heat + fan,
Hot air (with ring heater)
Small oven (conventional heating)
• 5 functions: bottom heat, top heat, grill,
Lighting, rotisserie
• Baking chamber (30 Ltr) with easy-clean enamel
• Triple-glazed oven door
• Electric grill
• Rotisserie
• 1 baking tray and 1 rack

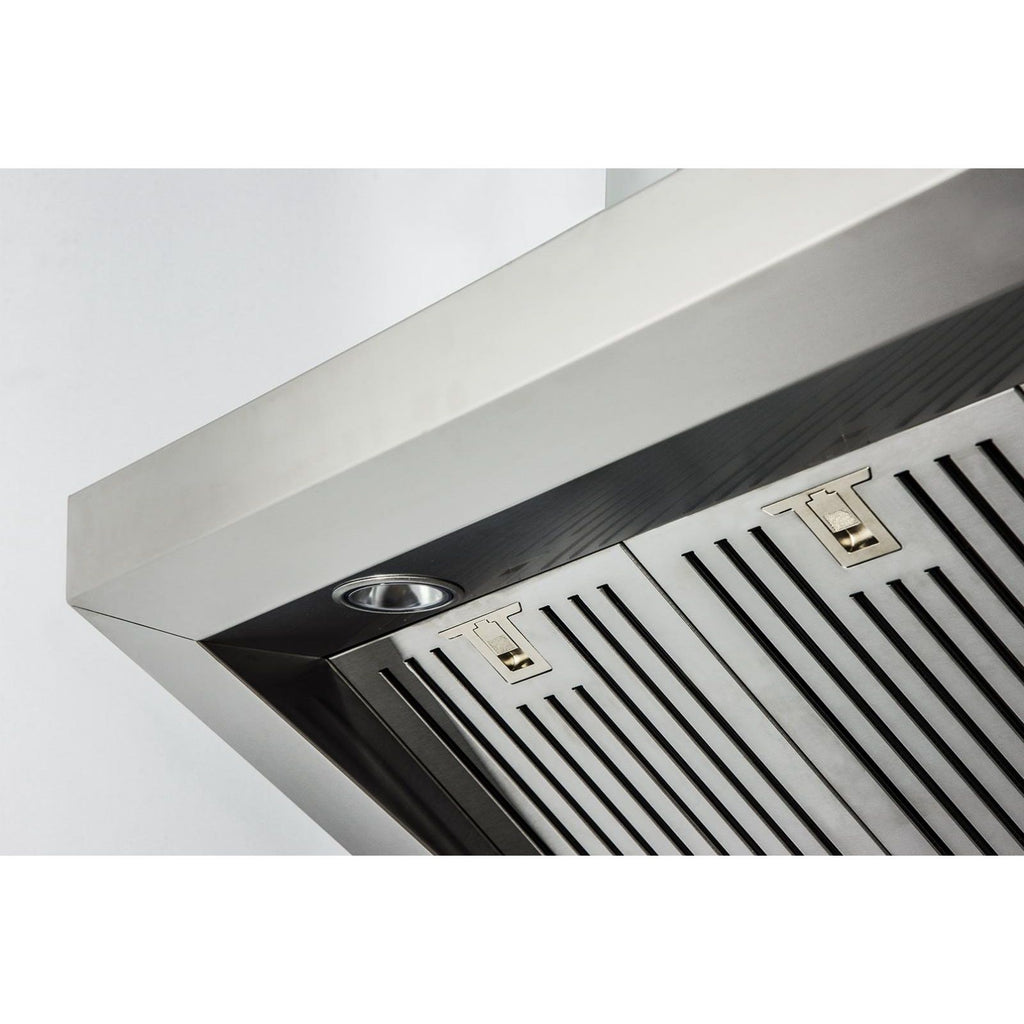

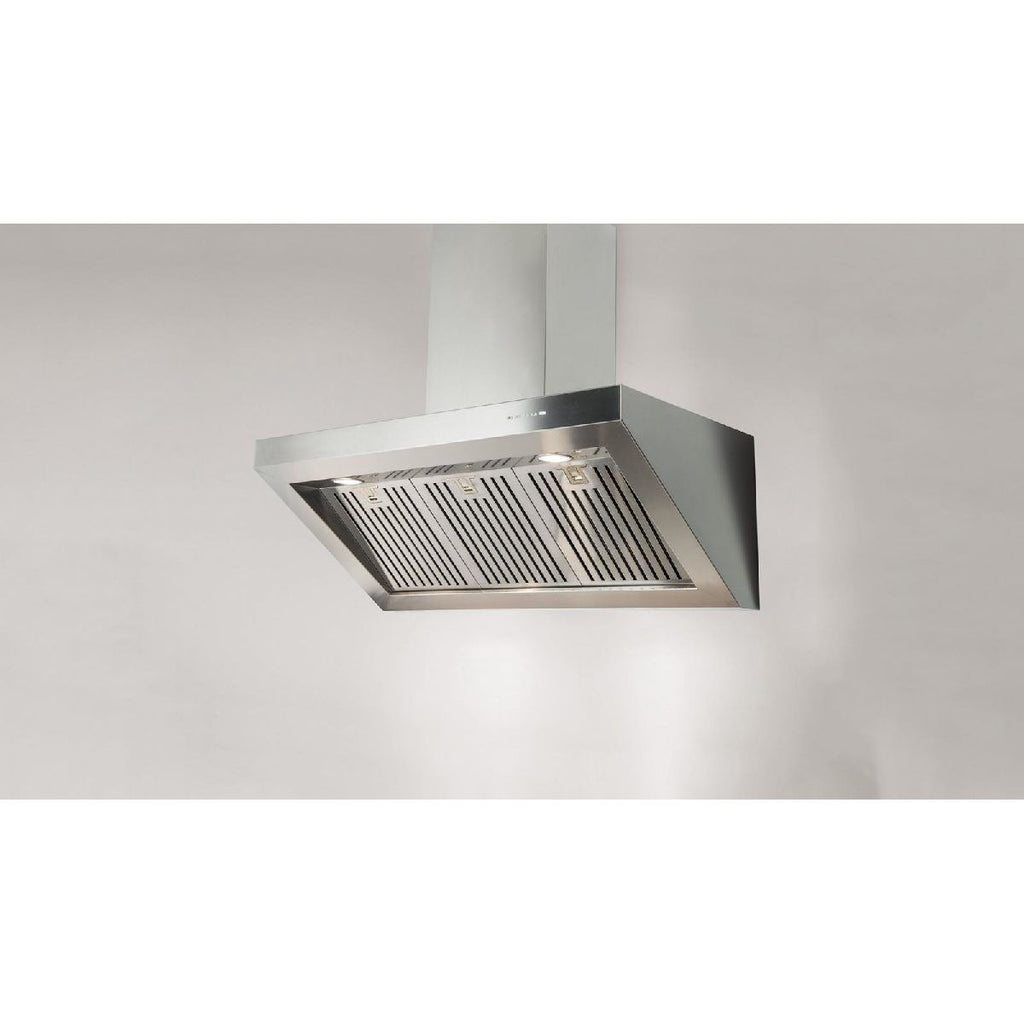

Features of the Professional A1 extractor hood - 90 cm wide
• Robust stainless steel housing
• Stainless steel chimney
• Push-button operation with backlight
• 3 power levels including turbo level
• front LED lighting (2 x 2.1 watts)
• Noise reduction system

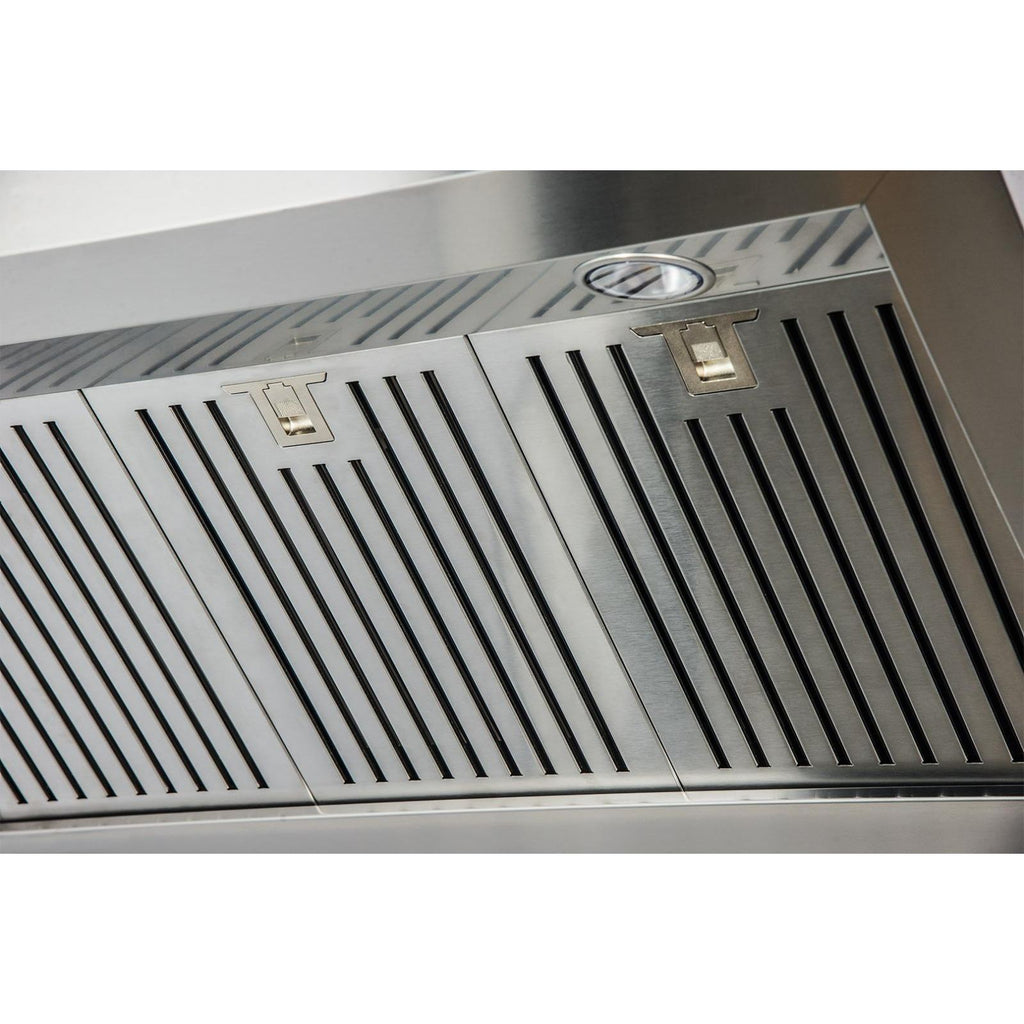

• Baffle metal grease filter (dishwasher safe)
• Filter alarm
• Motor Brushless - Tangential (T7):
Fan power (according to EN 61951)
Min. - max. Fan performance: 256 m³ / h - 433 m³ / h
Turbo stage: 799 m³ / h
Free air flow: 1,150 m³
Noise levels (according to EN 60704)
min. 41 dB - max. 53 dB
Turbo level: 67 dB
Maximum pressure: 489 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class A+
Annual consumption: 38.6 kWh / year
Fluid Dynamic Efficiency A /36.7
Lighting efficiency A / 42
Grease filter efficiency C / 75.3
Noise levels 53 dB
Power consumption in off state: 0 W
Power consumption in standby mode 0.49 W
Additional technical data
• Time extension factor: 145
• Air flow at point of maximum efficiency: 379 m³/h
• Air pressure at the point of maximum efficiency: 484 Pa
• Electrical input power at max. efficiency: 139 W
• Rated power lighting system: 4.2 W
• Average illuminance
on the cooking surface: 177 lux
Connection data
• Connected load: 274.2 W
Voltage: 220 - 240 V/ 50 Hz

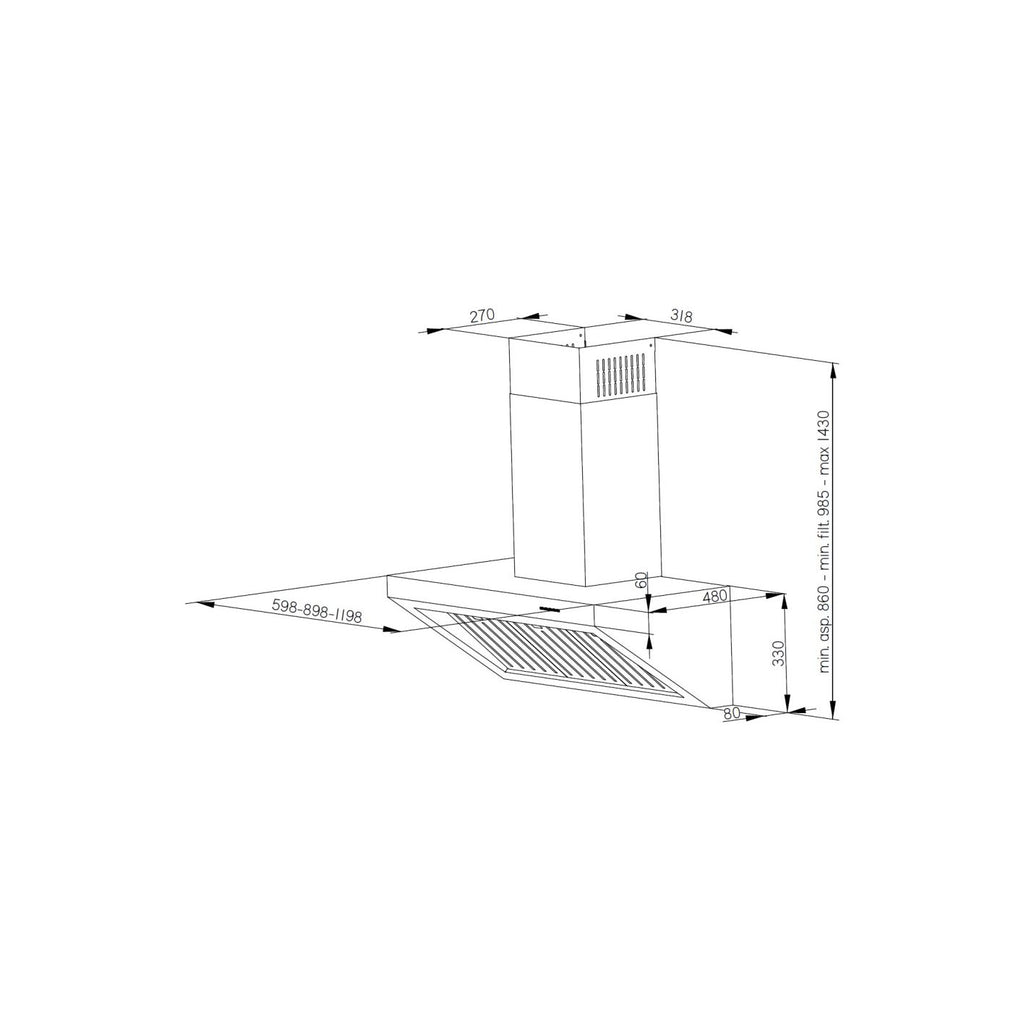

• Exhaust air nozzle: Ø 150 mm / Ø 125 mm
• Cable / connector
Logistical data
Weight gross/net: 25.5 / 20 kg
