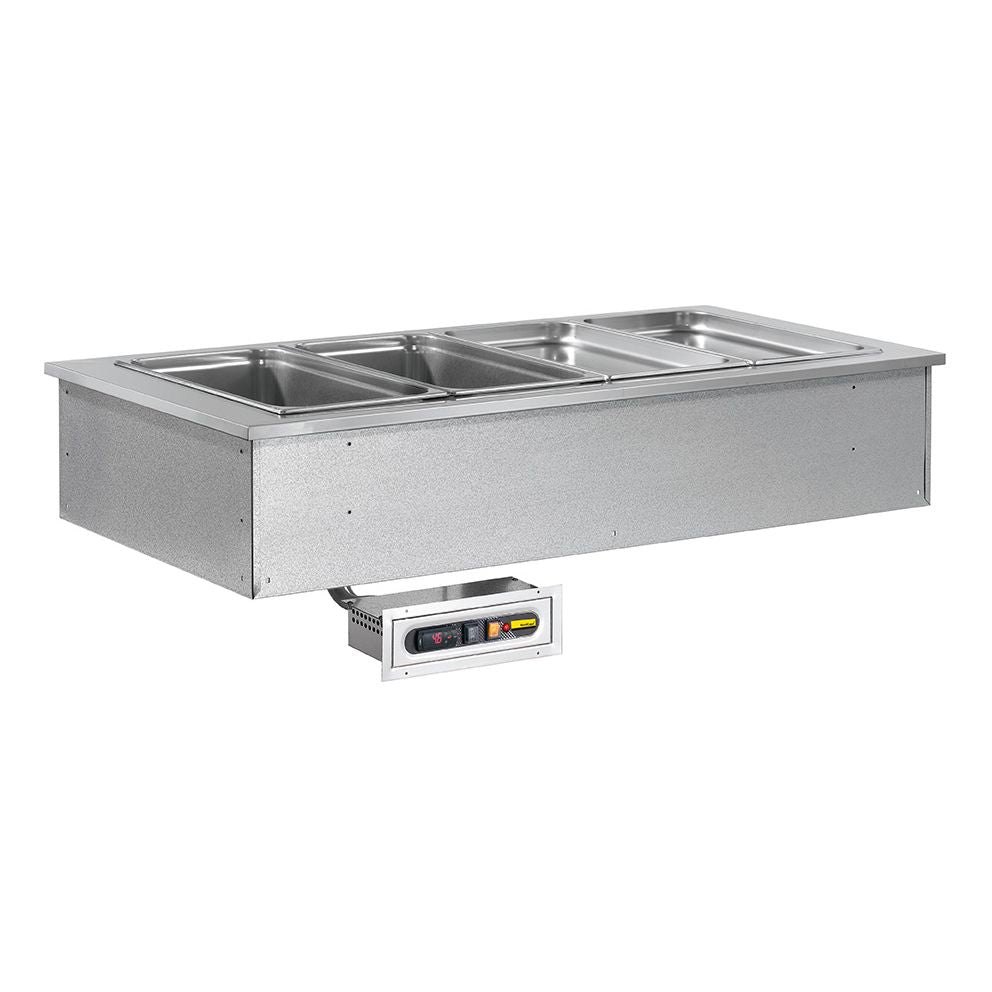

- for GN 1/1-200
- Compact unit, installation in existing worktop
- Radiator (under tub floor), tub indirectly heated
- electronic control
- Digital display, loosely attached with installation housing (installation dimensions W x H in mm: 366 x 90), cable length approx. 1.2 meters
- automatic water filling, low water level alarm, water drainage through overflow hose
Article number: 434800001
GTIN: 4063377155601
Connection type: plug-in
Exterior paneling: CNS 1.4301, tub edge bevelled 70 mm
Interior paneling: CNS 1.4301
Insulation: double-walled insulated
Display area: 0.33 m²
Holder (optional): 2 x GN 1/1-200
Gross weight: 37 kg
Net weight: 31 kg
Temperature range: 60 to 99 °C
Outside width: 844
External depth: 650
Outside height: 290
Width inside: 660
Depth inside: 510
Height inside: 210
Width neckline: 814
Depth of cut: 620
Packaging width: 930
Packaging depth: 730
Packaging height: 700
Electrical connection value: 1.00 kW | 230 V | 1 | 50 Hz
Control: electronic control
