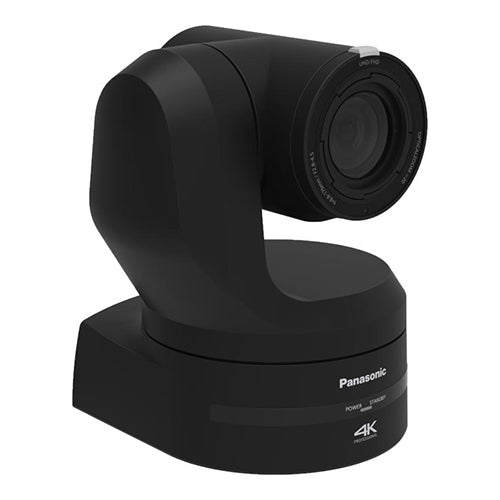

PANASONIC AW-UE150 - 4K UHD PTZ camera with pan & tilt function (20x optical zoom | 2160/50p | optical image stabilizer | 12G-SDI/3G-SDI/HD-SDI/HDMI | PoE++) - in black - [B-STOCK]

PANASONIC AW-UE150KEJ8 - 4K UHD 50p PTZ camera with integrated pan and tilt function (20x optical zoom | 2160/50p | optical image stabilizer | 12G-SDI/3G-SDI/HD-SDI/HDMI | PoE++) - in black [B-STOCK]

The PANASONIC AW-UE150 4K PTZ camera complements Panasonic's existing range of PTZ cameras with another professional broadcast camera with a 1.0-type large MOS sensor.

This next-generation PTZ (Pan Tilt Zoom) camera supports high video quality (4K | 50p), a 75.1° field of view, 20x optical zoom, and a wide range of output options from 12G-SDI and HDMI to fiber optic and IP. With simultaneous 4K/HD operation, this powerful Panasonic pan-tilt camera is an ideal solution for future-oriented users.

The AW-UE150 4K UHD PTZ camera guarantees high-quality video production in stadiums, auditoriums, and many other applications. With first-class, interference-free 4K 50p video quality, high-magnification zoom, and a wider field of view, the AW-UE150 expands the application spectrum of PTZ cameras. It supports various interfaces and simultaneous 4K/HD operation, enabling flexible, future-proof production systems.

Software version 2.16 makes the AW-UE150 series compatible with FreeD, augmented reality (AR) and virtual reality (VR) systems.

HIGHLIGHTS:

• Professional 4K UHD 50p PTZ Camera (3840 x 2160) - Supports all HD formats
• Wide-angle lens with a viewing angle of 75.1 degrees (F2.8-4.5)
• 20x optical zoom | 24x UHD i.Zoom | 32x Full HD i.Zoom | 10x digital zoom
• Optical Image Stabilization (OIS)
• 1.0-type 4K MOS image sensor enables low-noise recording with high sensitivity
• Various 4K interfaces (12G-SDI | 3G-SDI | HD-SDI | HDMI | Fiber Optic | IP | Optical Out)
• Support for RTSP and RTMP/RTMPS for live streaming productions
• Simultaneous 4K and HD output
• Supports FreeD for setting up AR/VR systems
• High-speed pan and tilt mode

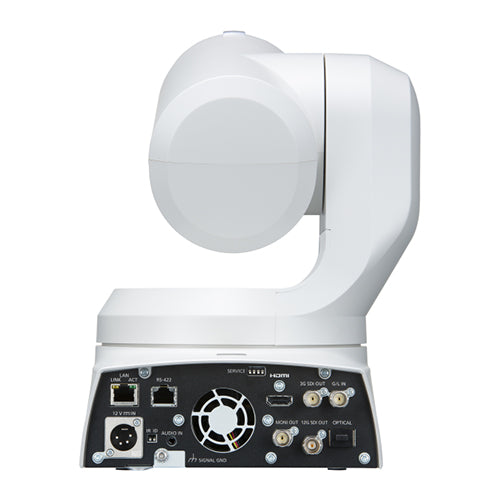

• Video output: 12G-SDI | 3G-SDI | HD-SDI | HDMI
• Power supply via PoE++ or XLR
• Power consumption: PoE++ 1.2A | XLR 4.0A
• POE++ support
• Not compatible with AW-PS550 and AW-PS551
• Requires additional 12V 4A power supply (e.g. IDX-IA70AXLR)
• Dimensions: 213 x 267 x 219 mm
• Weight: approx. 4.20 kg
• Color: Black
• 4K PTZ camera including ceiling mount

High video quality with 4K 50p
Recording at 3840 x 2160, 4K output and 59.94p/50p achieves smooth video images even in areas such as live sports where fast movements are captured.

1.0-type MOS sensor
The large 1.0-type MOS sensor enables low-noise, high-sensitivity images. Its light-sensitive area is approximately four times larger than that of a 1/2.3-type sensor, ensuring a wide dynamic range.

Various interfaces
The professional broadcast camera offers a wide range of output options, from 12G-SDI, 3G-SDI, HD-SDI, HDMI, and IP to fiber optic. Simultaneous 4K/HD operation also guarantees the right output for every application. 4K video can be converted to HD directly in the camera.

20x optical zoom / 75.1° horizontal angle of view
The 20x optical zoom is enhanced by the iZoom, allowing even distant subjects to be captured with high resolution and perfect image quality. Thanks to a horizontal angle of view of 75.1°, large areas can be completely captured even in spatially restricted installations.

Output formats

• 4K: 2160/59.94p | 2,160/50p | 2,160/29.97p | 2,160/25p | 2,160/24p | 2,160/23.98p
• HD: 1080/59.94p | 1080/50p | 1080/29.97p | 1080/29.97PsF | 1080/25p | 1080/25PsF | 1080/23.98p to 59.94i | 1080/24p | 1080/23.98p | 1080/23.98PsF | 1080/59.94i | 1080/50i | 720/59.94p | 50p

Important NOTE: The PTZ camera requires an additional 12V 4A power supply (e.g. IDX-IA70AXLR)!

The model offered is an already unpacked demo device [B-WARE]

• Demo unit with approximately 300 operating hours (camera has been reset to factory settings)
• 100% functional, no scratches (like new)
• Accessories complete and functional, no scratches (as new)
