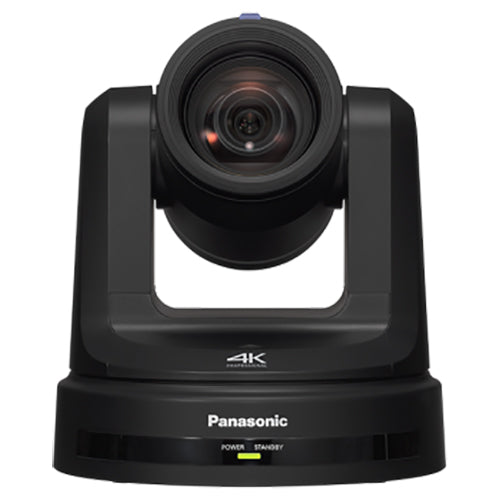

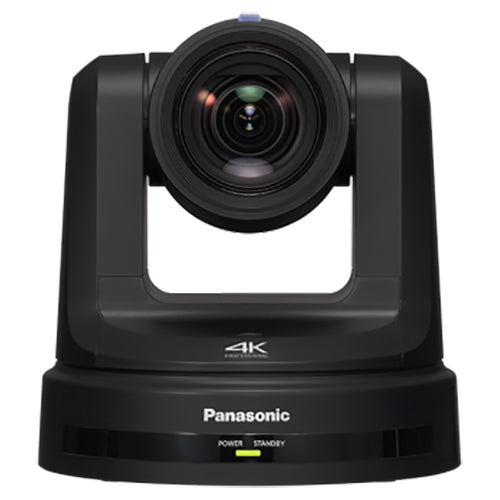

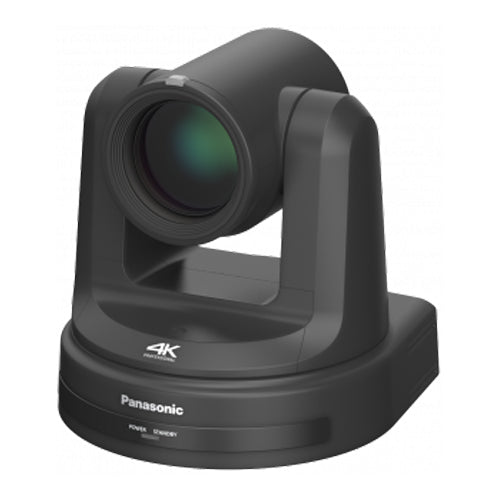

PANASONIC AW-UE20WE - 4K UHD PTZ camera with integrated pan and tilt function (12x optical zoom | wide-angle lens | 3G-SDI & HDMI version | PoE+) - in black
The PANASONIC AW-UE20 4K UHD PTZ camera with simultaneous 3G-SDI, HDMI and USB output has a newly developed and compact housing that not only facilitates handling but also facilitates installation in various areas, especially when mounted on trusses, ceilings or walls in classrooms and meeting rooms.
HIGHLIGHTS:
- 4K UHD PTZ camera with 1/2.8-type 4K MOS sensor for stunning UHD videos
- Supports 4K video up to 30p/25p with 3840 x 2160 output for professional and high-quality recording
- Wide-angle lens with a viewing angle of 71 degrees and 12x optical zoom
- Simultaneous 3G-SDI, HDMI and USB output
- Excellent system flexibility for intelligent cabling and smooth operation
- High-quality video streaming for more pleasant online communication
- RTMP/RTMPS enables direct streaming
- 3G-SDI, HDMI and IP support
- Can be operated via the web GUI
- Image streaming mode: JPEG (MJPEG) | H.264 | H.265
- Image resolution: 3840 x 2160 | 1920 x 1080 | 1280 x 720 | 640 x 360
- Video output: HDMI and 3G-SDI

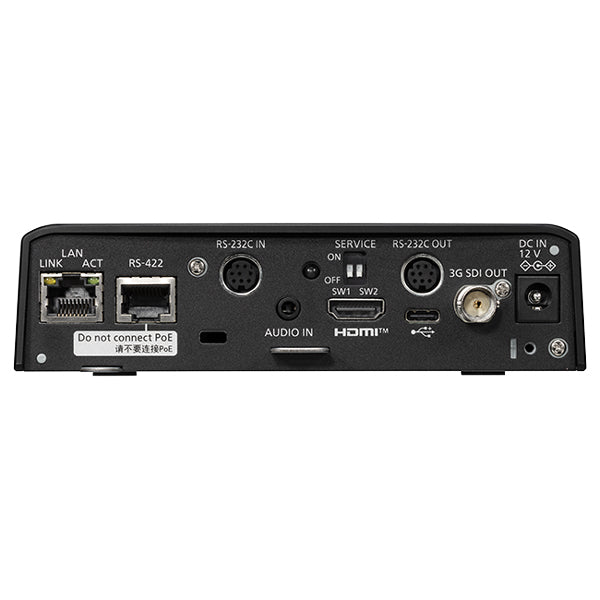

- Inputs & Outputs: LAN | RS-422 | AUDIO IN | USB | RS-232C IN & OUT
- Power requirements: 12 V DC (10.8 V - 13.2 V)
- PoE+ support (IEEE802.3)
- Color: White
Output formats:
-
HDMI 4K: 2160/30p | 2,160/29.97p | 2,160/25p
-
HDMI HD: 1080/60p | 1,080/59.94p | 1080/50p | 1,080/60i | 1.080/59.94i | 1,080/50i | 1080/30p | 1,080/29.97p | 1,080/25p | 720/60p | 720/59.94p | 720/50p
-
SDI: 1080/60p | 1,080/59.94p | 1080/50p | 1,080/60i | 1.080/59.94i | 1,080/50i | 1080/30p | 1,080/29.97p | 1,080/25p | 720/60p | 720/59.94p | 720/50p
The PANASONIC AW-UE20 PTZ camera is compatible with:
- AW-RP150GJ & AW-RP60GJ Remote Control Units
- AW-SF100 & AW-SF200 auto tracking software
- AW-SF300 Visual Control Software for Presets
- AW-RM50AG remote control
- PTZ Control Center
- Virtual USB driver
- EasyIP Setup Tool Plus
Single cable solution
The AW-UE20 supports PoE+, allowing power supply for the camera, control, and video transmission via a single cable.
Support for online video content
Using the "Virtual USB Driver for PTZ" software in combination with a LAN connection, video and audio data from the AW-UE20 pan and tilt camera can be captured just like from a USB camera. At the same time, connectivity to video platforms like Panopto is also ensured.
Improved sensor for HD productions
The AW-UE20 features a 1/2.8-type 4K MOS sensor for stunning UHD video. With 3G-SDI, HDMI, and IP support, as well as the ability to output multiple video formats simultaneously, the camera is ideal for existing HD or 4K workflows.
Wide-angle lens
The AW-UE20's new wide-angle lens with a 71-degree viewing angle and 12x optical zoom captures expansive areas even in limited installation space. This enables recording in meeting rooms and huddle spaces.
Analog 4K and HD output
The AW-UE20 pan-tilt camera supports 4K video up to 30p/25p with 3840 x 2160 output for professional, high-quality motion capture, as well as a variety of output options such as 3G-SDI, HDMI, and IP streaming. These can be used simultaneously for HD and 4K productions.
IP protocol support
RTMP/RTMPS enables direct streaming from the camera to live streaming services such as YouTube Live and Facebook Live.
The PTZ camera provides valuable support for the following areas:
- Live streaming events
- Universities and colleges
- Corporate installations
