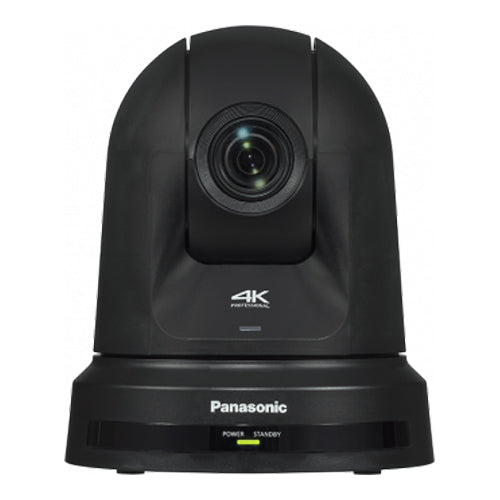

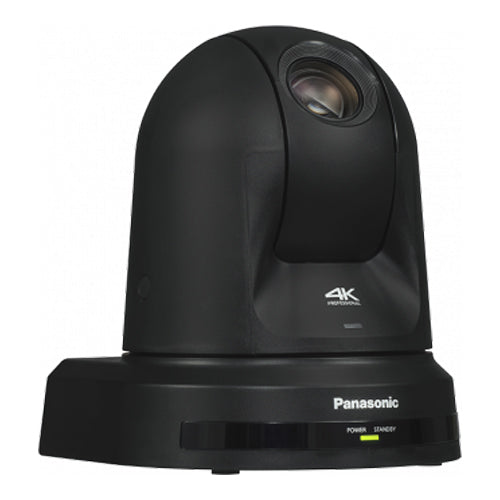

PANASONIC AW-UE80 - 4K UHD PTZ camera with pan & tilt function (24x optical zoom | wide-angle lens | OIS + EIS image stabilizer | 3G-SDI & HDMI version | auto-tracking software | PoE++) - in black

PANASONIC AW-UE80KEJ - 4K UHD PTZ camera with integrated pan and tilt function (24x optical zoom | wide-angle lens | OIS + EIS image stabilizer | 3G-SDI & HDMI version | auto-tracking software | PoE++) - in black

The PANASONIC AW-UE80 PTZ IP camera has a newly developed and compact housing, weighs only 2.00 kg and thus facilitates not only handling but also installation in different areas, especially when mounted on trusses or ceilings.

PANASONIC has also released new free AI-based built-in auto-tracking software for the AW-UE40 | AW-UE50 and AW-UE80 PTZ cameras.

HIGHLIGHTS:

• 4K UHD PTZ IP camera with a variety of ready-to-use IP transmission protocols, such as NDI, NDI|HX Version 2 and SRT
• 1/2.5-type 4K MOS sensor for stunning UHD videos in true 4K resolution of 1,500 TV lines (UHD)
• New direct drive system "Direct Drive" for improved responsiveness and smoothness
• 24x optical zoom | 28x UHD i.Zoom | 36x Full HD i.Zoom | 2x digital zoom
• Supports 4K video up to 50p/60p at 3840 x 2160 output
• HDMI and IP support | RJ-45 LAN port for IP control
• Image streaming mode: JPEG (MJPEG) | H.264 | H.265 | NDI|HX Version 2 (H.264) | High bandwidth NDI
• Image resolution: 1,920 x 1,080 | 1,280 x 720 | 640 x 360 | 320 x 180
• Optical (OIS) and electrical (EIS) image stabilization
• Wide-angle lens with a viewing angle of 74.1 degrees
• Supports FreeD for setting up AR/VR systems
• Up to 200 camera units can be operated via a single control
• The low-noise operation allows for versatile use
• Using the web GUI to control the camera
• RTMP/RTMPS for direct streaming
• Video output: HDMI 2.0 (4:2:2 | 10Bit) and 3G-SDI (1x BNC | SMPTE 292M / 424M | 75 Ohm)
• Power requirements: 12 V DC (10.8 V - 13.2 V)
• PoE++ support (IEEE802.3bt | DC 42V-57V)
• Power consumption: 3.0A power adapter | 1.0A PoE++ power adapter
• Dimensions: 170 x 211 x 171 mm
• Weight: approx. 2.00 kg
• Color: Black
• incl. free AI-based auto-tracking software (AW-UE40 | AW-UE50 | AW-UE80)

Output formats:

• SDI HD: 1,080 / 59.94p | 1,080 / 50p | 1,080 / 59.94i | 1,080/50i | 1,080 / 29.97p (native) | 1,080 / 25p (native) | 1,080 / 23.98p (over 59.94i) | 1,080 / 29.97psF | 1,080 / 25psF | 1,080 / 23.98psF | 1,080 / 24p (just) | 1,080 / 23.98p (native) | 720 / 59.94p | 720/50p
• HDMI 4K: 2,160 / 59.94p | 2,160 / 50p | 2,160 / 29.97p (native) | 2,160 / 25p (native) | 2,160 / 24p (just) | 2,160 / 23.98p (native)
• HDMI HD: 1,080 / 59.94p | 1,080 / 50p | 1,080 / 59.94i | 1,080/50i | 1,080 / 29.97p (native) | 1,080 / 25p (native) | 1,080 / 23.98p (over 59.94p) | 1,080 / 24p (just) | | 1,080 / 23.98p (native) | 720 / 59.94p | 720/50p

The PANASONIC AW-UE80 PTZ camera is compatible with:

• AW-RP150GJ & AW-RP60GJ Remote Control Units
• AW-SF100 & AW-SF200 auto tracking software
• AK-HRP1000 | AK-HRP1005 | AK-HRP1010 | AK-HRP1015 Remote Control Panel
• AW-SF300 Visual Control Software for Presets
• AW-RM50AG remote control
• PTZ Control Center
• Virtual USB driver
• EasyIP Setup Tool Plus

Single cable solution
The AW-UE80 pan and tilt camera supports PoE++, allowing power supply for the camera, control, and video transmission via a single cable.

Direct Drive system
For quiet and smooth camera movements in both vertical and horizontal directions, the AW-UE80 pan-tilt camera features a direct drive system based on Panasonic technology, reducing operating noise to NC25 or less. The direct drive also offers other benefits such as faster, more precise movements and greater accuracy of preset positions, making the AW-UE840 Panasonic's fastest, quietest, and most accurate PTZ camera to date.

Improved 4K sensor
The AW-UE80 IP camera features a new 1/2.5-type 4K MOS sensor for stunning UHD video in true 4K resolution of 1,500 TV lines (UHD). With 3G-SDI, HDMI, and IP support, as well as the ability to output multiple video formats simultaneously, the camera is ideal for existing HD or 4K workflows.

Wide-angle lens
The new wide-angle lens of the AW-UE80 pan & tilt camera, with a 74.1-degree viewing angle, captures expansive areas even in limited installation space, and the 24x optical zoom ensures high image quality even at extended zoom ranges. This enables recording in large indoor spaces. Furthermore, the intelligent zoom achieves 28x and 36x magnification in UHD and Full HD, respectively.

Optical zoom and image stabilization
In addition to optical image stabilization (OIS), the PTZ IP camera also features electronic image stabilization (EIS), ensuring smooth pan-tilt movement in busy environments or when moving or placed on a robotic system.

New processor
The AW-UE80 PTZ camera features the Venus Engine, a powerful processor that allows the PTZ camera to respond ultra-fast to increased video processing demands for higher image quality and lower latency.

Analog 4K and HD output
The AW-UE80 supports 4K video up to 50p/60p at 3840 x 2160 resolution for professional, high-quality motion capture, as well as a variety of output options such as 3G-SDI, HDMI, and IP streaming. These can be used simultaneously for HD and 4K productions.

New IP transmission formats NDI and SRT
The PTZ camera features a variety of ready-to-use IP transmission protocols, including NDI, NDI|HX Version 2, and SRT. NDI for high bandwidth transmits Full HD video at speeds of up to 100 Mbps.

The AW-UE80 PTZ IP camera offers high efficiency even at lower bandwidths with NDI|HX version 2, enabling video transmission at low bit rates. In both cases, only a single LAN cable is required.

In addition, Secure Reliable Transport (SRT) is supported to ensure stable, high-quality video transmission even in unstable network environments and to enable secure and reliable video transmission over the public Internet - thanks to encryption, as well as the automatic detection and retransmission of lost packets.

RTMP/RTMPS enables direct streaming from the camera to live streaming services such as YouTube Live and Facebook Live.

FreeD support for VR and AR applications
Like the PANASONIC AW-UE100 and AW-UE150, the AW-UE80 also features FreeD support for connecting to AR/VR systems. This allows camera tracking information (pan/tilt/zoom/focus/iris) to be output along with a synchronization signal, enabling easy system setup without the need for an encoder.

New web interface & simplified workflows
A brand-new web interface facilitates professional operation of the advanced user interface (GUI) - even in darker environments.

Panasonic offers an entire ecosystem of solutions that allow the new PTZ models to integrate seamlessly with existing camera systems. This includes use with remote camera controllers, the central control software PTZ Control Center, and the automatic tracking software for presentations and lectures, which is enabled by facial and human body recognition.

The right model for every video production, such as the recording of reality shows and events

The PANASONIC PTZ camera AW-UE80 is ideal for capturing the natural facial expressions of actors/performers or the ambience of events during recording.

The dome-shaped design ensures unobtrusive recording, while the new direct-drive system minimizes operating noise for a distraction-free production and atmosphere. The camera offers high-quality images with 4K/60p resolution, a wide 74.1-degree viewing angle, and an optical zoom of up to 24x magnification for outstanding video quality. The AW-UE80 pan-tilt camera also ensures excellent stability and security during video streaming, making it suitable for a wide variety of video productions. From producing a reality show to recording an internal business or educational event, the premium standard AW-UE80 model can be used in numerous applications.

Compact and quiet design for harmonious integration into the environment

• Thanks to its discreet and small-format dome design, the camera blends seamlessly into the environment for discreet recordings
• The low-noise operation allows for versatile use
• The original image stabilizers ensure clear and stable video recording
• For shooting in hard-to-reach areas, the camera can be mounted on the ceiling or on a tripod

Flexible adaptation to different conditions such as close-ups

• With 4K resolution, a wide viewing angle, and a high-magnification zoom, you can also capture the atmosphere of the venue while streaming
• Up to 200 camera units can be operated via a single control
• For cost-effective AR/VR recordings, the camera supports FreeD

High-quality, interruption-resistant, low-latency videos

• The videos can be played smoothly in high quality
• The use of a secure and stable streaming protocol minimizes the risk of communication problems

Compact and quiet design for harmonious integration into the environment

With its compact design and quiet operation, the AW-UE80 PTZ IP camera is ideal for use in any recording situation and location. The camera unit is so unobtrusive that the actors' facial expressions and movements appear much more natural during recording.

The compact dome design with its recessed lens blends seamlessly into any environment, ensuring extremely discreet recordings. Since camera movements are barely noticeable, the actors' natural facial expressions and body language can be captured without losing authenticity. Weighing approximately 2.2 kg, the camera unit is easy to transport.

Low-noise operation for versatile use
The camera is so quiet that you don't have to worry about any background noise while producing a reality show or recording an event. The new direct-drive motor is barely audible when panning (horizontally) and tilting (vertically), ensuring distraction-free footage.

In addition, it stops the camera movement precisely at a desired position, returns to a preset position when activated for accurate camera tracking, tracks objects of varying speeds with a fluid motion, and allows for adjustable speed adjustment. In addition to smooth operation, these features and functions play an essential role in a variety of video productions.

Original image stabilizers for stable video recordings
Even when installed in unstable locations such as a crane or rail, the camera's two image stabilizers ensure sharp and clear images. Electronic Image Stabilization (EIS) ensures smooth camera movement in the direction of travel, while Optical Image Stabilization (OIS) fine-tunes the lens. The combined result is stable, high-quality image capture.

Can be mounted on ceilings or placed on a tripod for recording in hard-to-reach areas. The AW-UE80 offers flexible installation in hard-to-reach areas, making it suitable for use in a wide variety of recording situations.

Flexible adaptation to different conditions, such as large-scale recordings (with multiple cameras)

The wide range of functions covers a wide variety of recording requirements, such as reducing the number of personnel required on location without any loss of quality.

4K resolution, wide angle and powerful zoom capture "the event atmosphere"
Thanks to the combination of high 4K resolution, a wide viewing angle, and a high-magnification zoom, the atmosphere of an event or concert, as well as the facial expressions of actors/performers, can be captured to convey the on-site atmosphere via online video streams. The zoom function allows you to enlarge a desired area, making the streaming video even more engaging. The wide viewing angle of 74.1 degrees and the up to 24x optical zoom prevent important event scenes from being missed, even with a minimum number of cameras. This makes the AW-UE80 suitable for a wide variety of applications – regardless of the size of the venue.

Operation of up to 200 camera units via one control system
A single controller allows you to operate multiple camera units simultaneously. With a network connection via PoE++-compatible equipment, a single LAN cable is sufficient for power supply and transmission of video, audio, and control signals. Fewer cables also mean fewer cable connection issues (for example, a cable disconnection can interrupt recording). Furthermore, the power supply no longer requires cabling. For outdoor recordings, a temporary platform also reduces the time and effort required for setup and dismantling.

Ideal for cost-effective AR/VR video recording
When connected to an AR/VR system, the AW-UE80 outputs FreeD-compliant commands. The AR/VR function allows for the creation of completely new types of videos.

High-quality, interruption-resistant, low-latency videos

The AW-UE80 PTZ camera streams high-quality video with low latency, even during unstable communications. It also provides excellent stability and security, making it suitable for a wide range of applications.

Smooth playback of high-quality videos
The AW-UE80 comes standard with NDI for high-bandwidth video and NDI|HX version for IP transmission of high-quality video. NDI for high-bandwidth video enables IP transmission of high-quality video with low latency, while NDI|HX version 2 ensures efficient video transmission in low-bandwidth situations. Since the video source is accessible from any device on the same network, even unknown IP addresses are automatically detected. This enables a flexible video production workflow on location.

The use of a secure and stable streaming protocol minimizes the risk of communication problems
The AW-UE80 supports SRT, a next-generation video transmission protocol that operates smoothly even in unstable network environments and offers robust security. Ensuring stable and reliable video streaming eliminates issues such as transmission interruptions during production or event recording. The protocol also prevents various risks, such as data leaks, making it suitable for secure use with all video content.

The PTZ IP camera provides valuable support for the following areas:

• Documentaries and reality TV
• Rental and event
• eSports
• Broadcast and mixed reality studio environments
• Parliaments and theaters
• Universities and colleges
• Corporate installations

Free auto-tracking software for PANASONIC AW-UE40 | AW-UE50 | AW-UE80 PTZ cameras

PANASONIC has released a new free AI-based built-in auto-tracking software for the AW-UE40 | AW-UE50 and AW-UE80 PTZ cameras.

Main features:

• Maintaining the image section throughout
• Stable recording even when shooting within a frame
• Easy installation in lecture halls and rooms without connection to external devices

Auto-tracking applications:

There are numerous applications for automatic tracking, such as:

• lecture halls
• News studios and interviews
• press conferences
• Company presentations
• And many more…

Tracking made easy

Built-in firmware
Automatically track a person with a PTZ camera without having to connect to external devices.

Stable recording
The camera's internal tracking enables a quick response to the person's movement and ensures recordings that can be used at any time.

Are you interested in even more professional car tracking?

In addition to the free auto-tracking option for the AW-UE40 | AW-UE50 | AW-UE80 PTZ cameras, PANASONIC offers two paid auto-tracking versions: AW-SF100 and AW-SF200!

PANASONIC AW-SF100 & AW-SF200 Highlights:

• "Motion detection" and "Face detection" for high-precision auto-tracking with minimal tracking errors
• Available in two versions: the stand-alone version for a single PC and the web application version, which allows control from a tablet, smartphone or desktop PC
• IP connection so that PC & software can be installed in another room or even remotely
• Easy setup and no additional equipment required - no need for batteries or sensors
• Single and multiple camera setups possible
