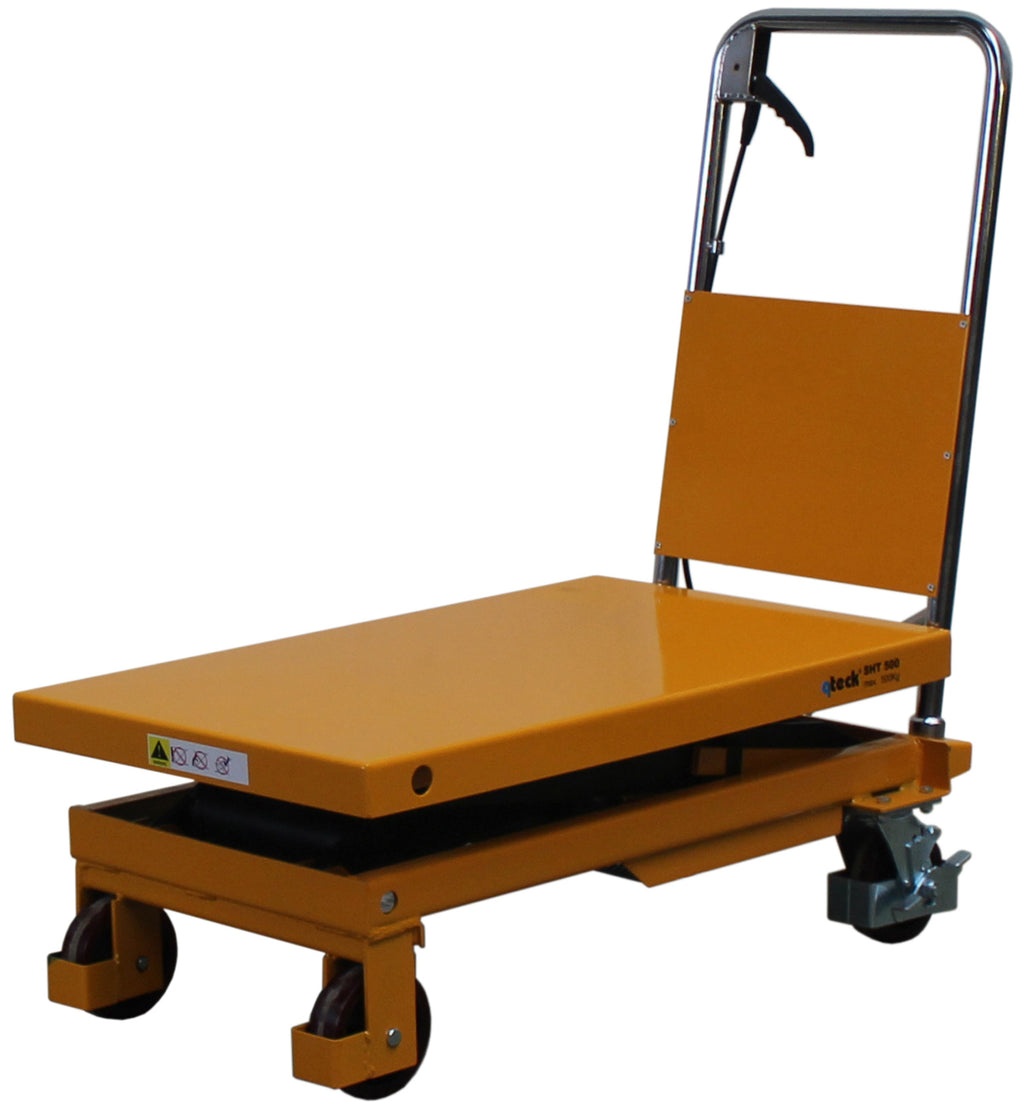

Our lifting tables provide effective support for loading and unloading machines and racks in production facilities, manufacturing plants, and warehouses. Lifting raises goods to an optimal working height, which not only promotes employee back health but also improves work performance and ergonomics in the workplace. Quality assurance and the use of state-of-the-art manufacturing technology also ensure low maintenance costs and high functional reliability.
- Foot-operated parking brake
- Low-maintenance foot hydraulic pump
- Finely adjustable lowering valve
- Protection against unintentional lowering
- Ergonomically arranged controls
- Solid, robust construction
-
Technical details
- Maximum load capacity 500 kg
- Table dimensions 855 x 500 x 50 mm
- Handle height 970 mm
- Lifting range 340 - 900 mm
- Color RAL 1028
- Hydraulic lifting function via foot pedal
- Hydraulic unit with overload valve
- Valve control for controlled lowering of even heavy loads
- Ball-bearing swivel and load castors - smooth running even under load
- Polyurethane tires swivel castors 127 x 35 mm - load castors 127 x 35 mm
