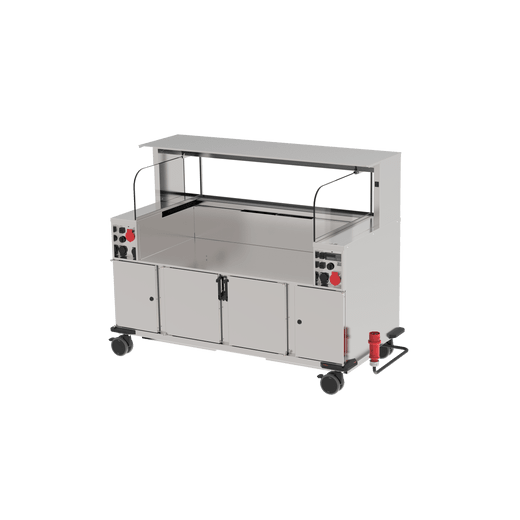

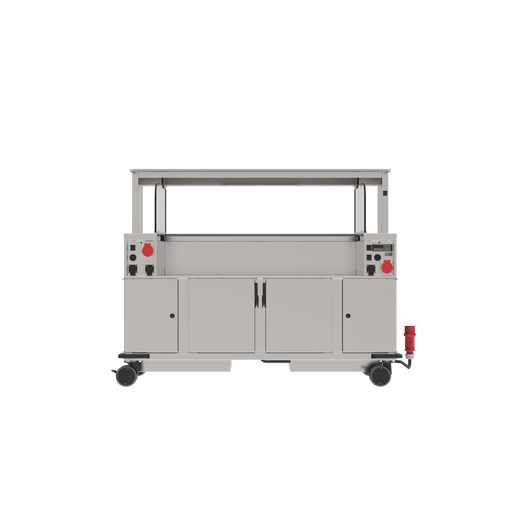

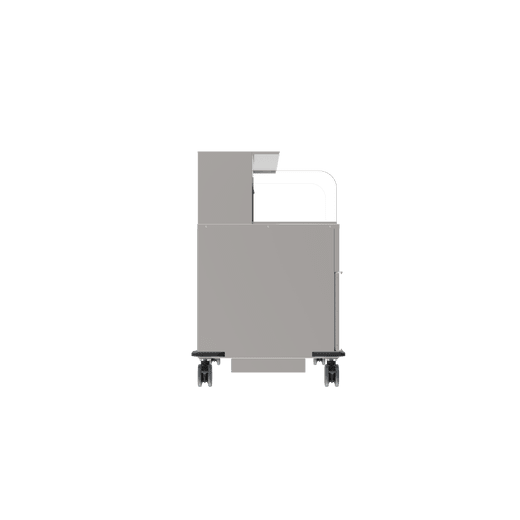

The mobile station with integrated three-sided edge extraction technology "Air-Cleaning System" including plasma technology, made entirely of high-quality stainless steel, offers unlimited flexibility and mobility when cooking and makes front cooking an experience - completely free of unwanted odors.
The base unit features two cabinet compartments, each with a cold compartment, for extra storage and functionality. Each compartment features 8 seamless, deep-drawn support ledges for GN containers and thermoplates®, as well as grids up to GN 1/1.
With digital control and a reliable multi-stage filter system consisting of grease, activated carbon, and pollutant filters in the base unit, as well as patented O3 plasma technology. The plasma generator not only neutralizes odors but also kills bacteria and microorganisms.
Thanks to a perfectly designed air duct with 3-sided edge extraction (d3), the fumes from the grease, water and odorous air that arise during preparation are removed where they arise using a flame-proof high-performance eddy current filter.
The digital control offers various helpful functions, such as a display of the filter element wear (activated carbon filter), a 4-stage extraction power level, and an error display with scrolling text. Multi-colored LED lights indicate the operating status; there's also an integrated operating hours counter and a reliable alarm function with a buzzer.

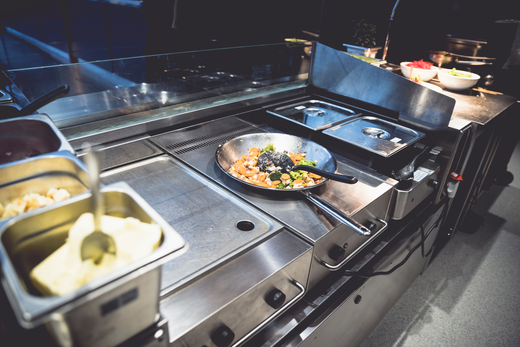

In combination with the varithek® module system, the acs offers maximum flexibility for every type of preparation with the GN cooking pot thermoplates® made of unique SWISS-PLY multi-layer material for the best food quality.

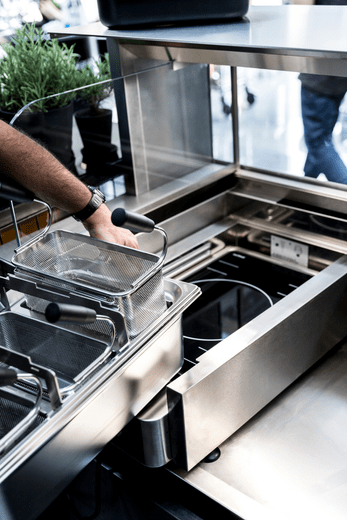

The simple installation of the diverse varithek® modules (400 modules directly, 1/1 modules in combination with AST system carrier) in the lowered, tightly welded installation niche for up to 3 modules allows you to combine any function and quickly exchange it - from grill, pasta & deep fryer to ceramic or induction modules.
All varithek® modules are standardized and can therefore be flexibly combined and exchanged, for precise insertion into the AST/EST system carrier / GN port (1/1) or direct installation without a system carrier (400s), depending on the type of application.
Station covered on 3 sides, made entirely of stainless steel, rust-proof, hygienic, high-quality matt ground, in a stable welded construction.
Centrally lowered stainless steel cover, with robust, tightly welded adjustment niche.
In the base unit there are 2 functional GN cupboard compartments in hygienic design H3, with double-walled and self-closing doors.
Optimal hygiene thanks to the three-sided cough attachment, fixed glass made of laminated safety glass with two easily removable side splash guards for easy cleaning. A stainless steel shelf with LED light strip at the top.
Left & right side panels with high-performance grease cutter, each with 2 removable grease trays.
In the substructure, low-noise radial fan, patented plasma technology & activated carbon filter, for reliable odor neutralization & killing of bacteria/microorganisms.
Optimal and safe mobility with 2 fixed and 2 swivel castors.
On the left 2x 400V CEE and on the right 1x 400V CEE & 1x 230 V Schuko sockets, moisture-protected with hinged cover for connecting the varithek® cooking modules.
Tightly closing inspection hatch on the operator side in the substructure, with easily replaceable seal.
Suitable for outdoor use, splash-proof (IPX4).
High-performance eddy current filter dishwasher safe.
Side splash guards, which also support more efficient suction performance, are easily removable for cleaning
Attachment easily accessible from above thanks to removable storage plate, for direct access during assembly and electrical work.
All acs components (filter, blower and collection components, seal, splash guards) can be removed by hand without tools.
| GTIN/EAN |
4007537164546 |
| material |
Stainless steel 1.4301 (CNS) |
| Weight |
236.7 kg |
| Dimensions |
1664 x 850 x 1300 mm |
| Ambient temperature |
+5°C to +40°C |
| Number of subjects |
2 |
| Support distance |
37 mm |
| Cooling area |
+2°C to +10°C |
| refrigerant |
Ice Finch D2 |
| Nominal voltage |
3N AC 400 V 50/60 Hz |
| Connection value |
22,000 W |
| Plug type |
CEE plug 400V/32A |
| Country-specific plug |
upon request |
| Cable type |
smooth cable |
| Cable length |
3000 mm |
| Protection class |
IPX4 |
| sockets |
1 x 230 V Schuko, 3 x 400 V CEE |
| Functions |
chilled |
| Shock protection |
4 corner bumpers |
| Wheel diameter |
125 mm |
| Roll |
2 fixed castors; 2 swivel castors with brakes |
| filter system |
Plasma technology |
| Extraction |
3-sided edge extraction |
| Light attachment |
with attachment |
| Number of functional modules |
3 |
| Niche dimensions |
1210 mm x 650 mm x 250 mm |
| Usable height |
900 mm |
| Hygienic design |
H3 |
| Order number |
91140433 |
