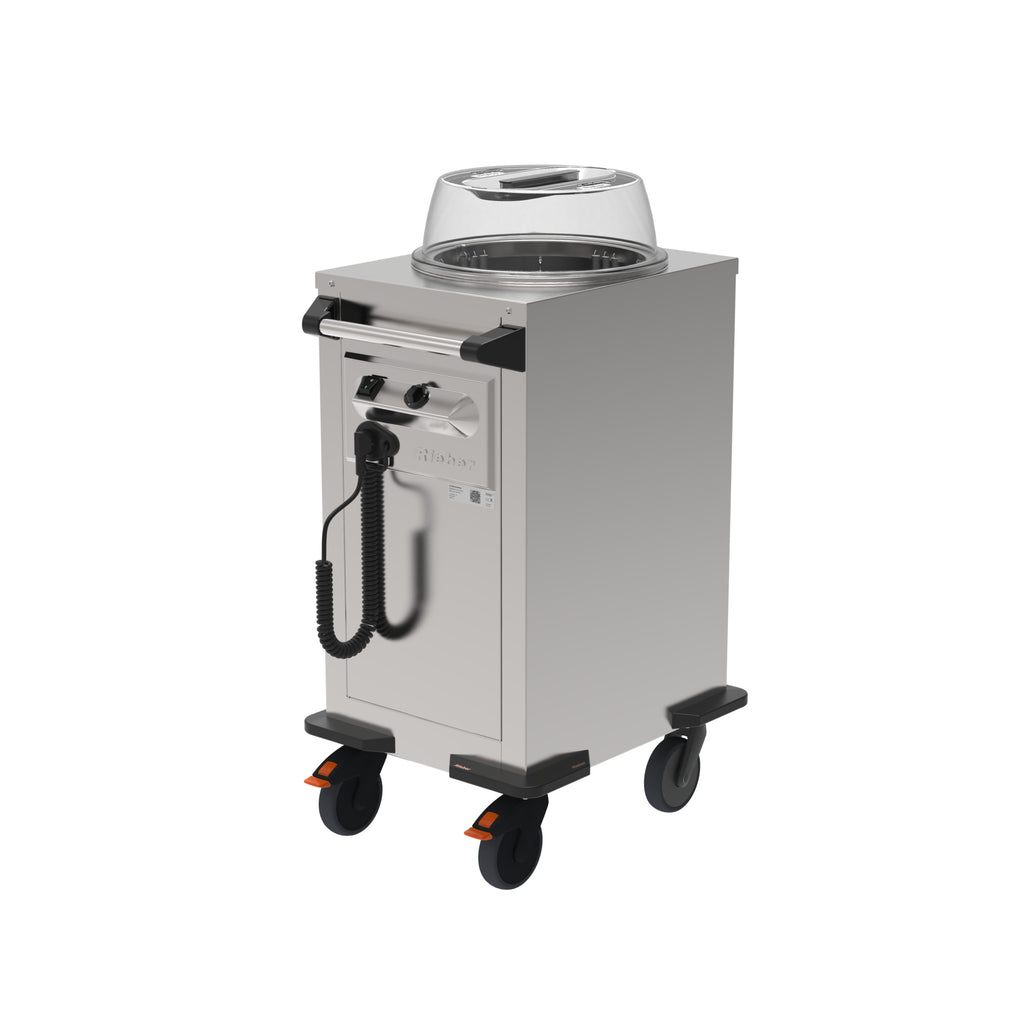

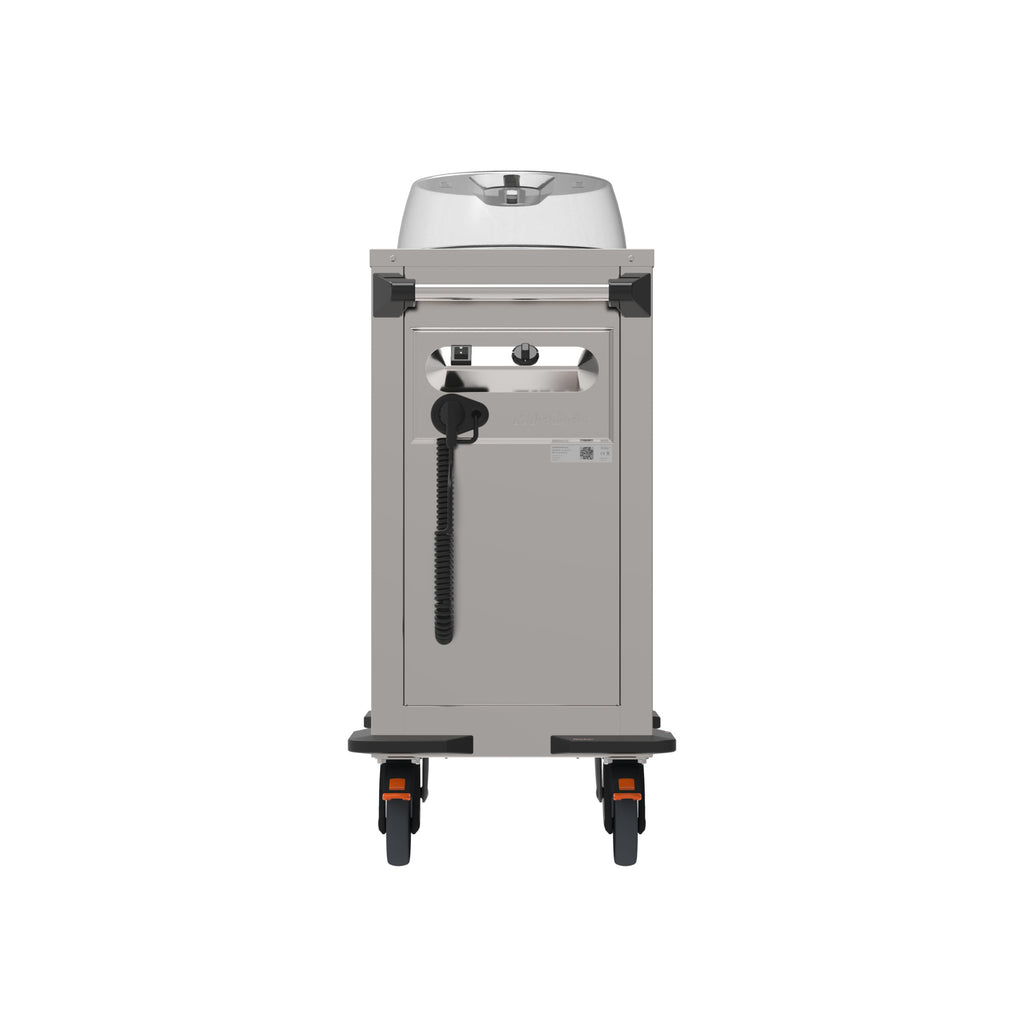

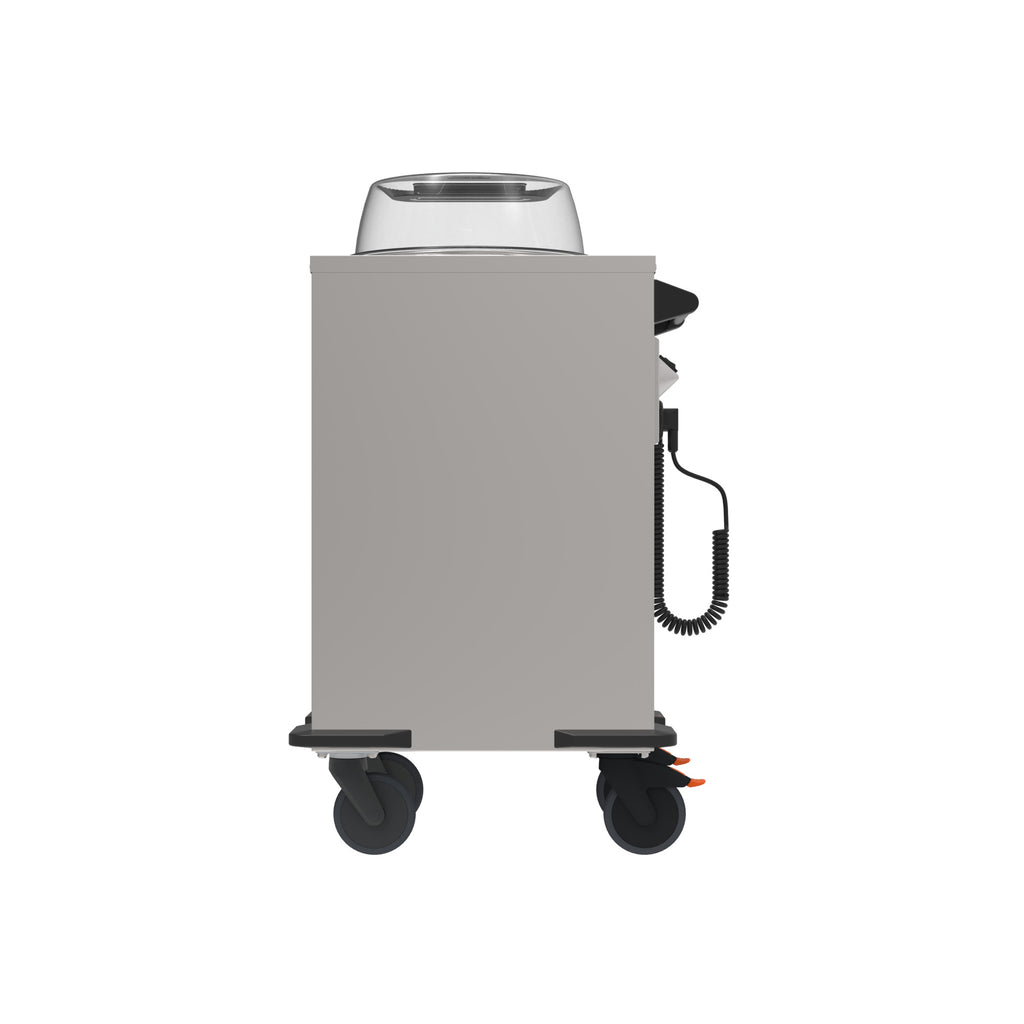

The tube stacker features powerful, adjustable circulating air heating for warming, temporarily storing, and transporting round dishes in an adjustable tube (diameter from 190-320 mm). Easily adjustable by hand using the three adjustment rods for the desired plate size, as well as the spring force according to the dish weight. It also features integrated overheating protection for perfect safety and a polycarbonate lid for hygienic protection of the dishes*.
Additional accessories for the polycarbonate lid include the matching lid holder. The double-walled, lockable stainless steel lid hood and the all-round impact protection provide extra robustness, and can be expanded with a dirt drawer. Also available with stainless steel casters upon request.
Rust-proof, high-quality, hygienic stainless steel, matt polished.
Stable, smooth-running platform.
Tilt- and tilt-proof, with robust stacking mechanism.
Double-walled insulated body, low heat loss.
Flexible and precise adjustment by hand.
Output height can be adjusted consistently, with heat-resistant tension springs.
Mobile with rust-proof, lockable casters and safety push handle.
Bumper corners for impact protection and shock-protected switching element.
Removable tube insert, easy to clean.
Outside with closed lid suitable for high pressure cleaners, jet water protected (IPX5).
| GTIN/EAN |
4007537112608 |
| material |
Stainless steel 1.4301 (CNS) |
| Weight |
33.8 kg |
| Dimensions |
620 x 480 x 1030 mm |
| Heating area |
+30°C to +110°C |
| Tube diameter |
397 mm |
| Number of tubes |
1 |
| Lid hood |
Included (1x Poly) |
| Nominal voltage |
1N AC 230 V 50/60 Hz |
| Connection value |
900 W |
| Plug type |
Schuko plug (Type F) |
| Country-specific plug |
upon request |
| Cable type |
spiral cable |
| Cable length |
2500 mm |
| Protection class |
IPX5 |
| sockets |
Dummy socket |
| Functions |
heated |
| Heating/cooling type |
circulating air heating |
| Shock protection |
4 corner bumpers |
| Wheel diameter |
125 mm |
| Roll |
2 swivel castors; 2 swivel castors with brakes |
| Max. payload |
75 kg |
| Order number |
89010168 |
