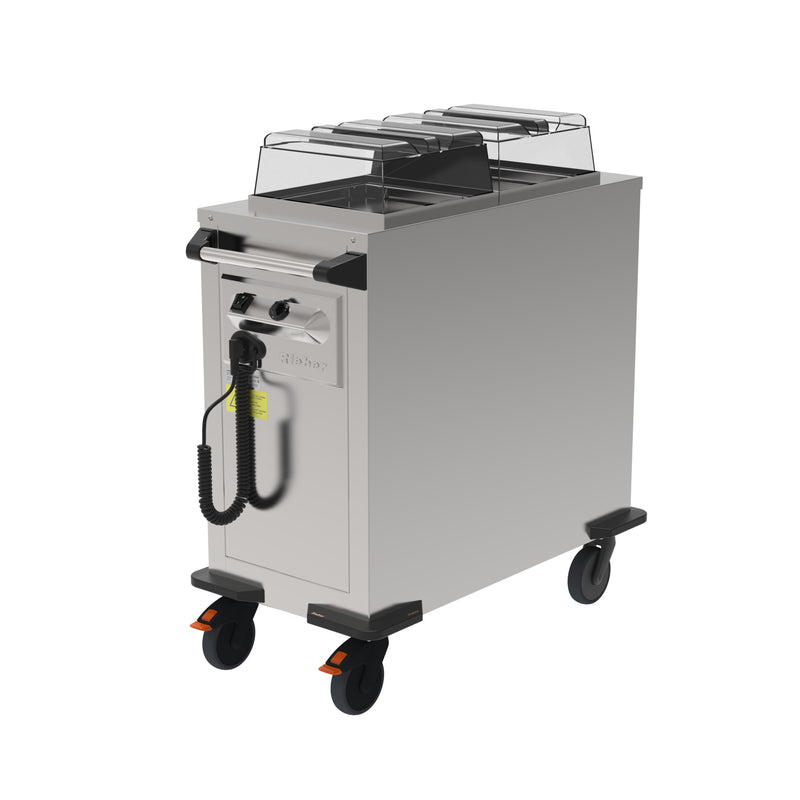

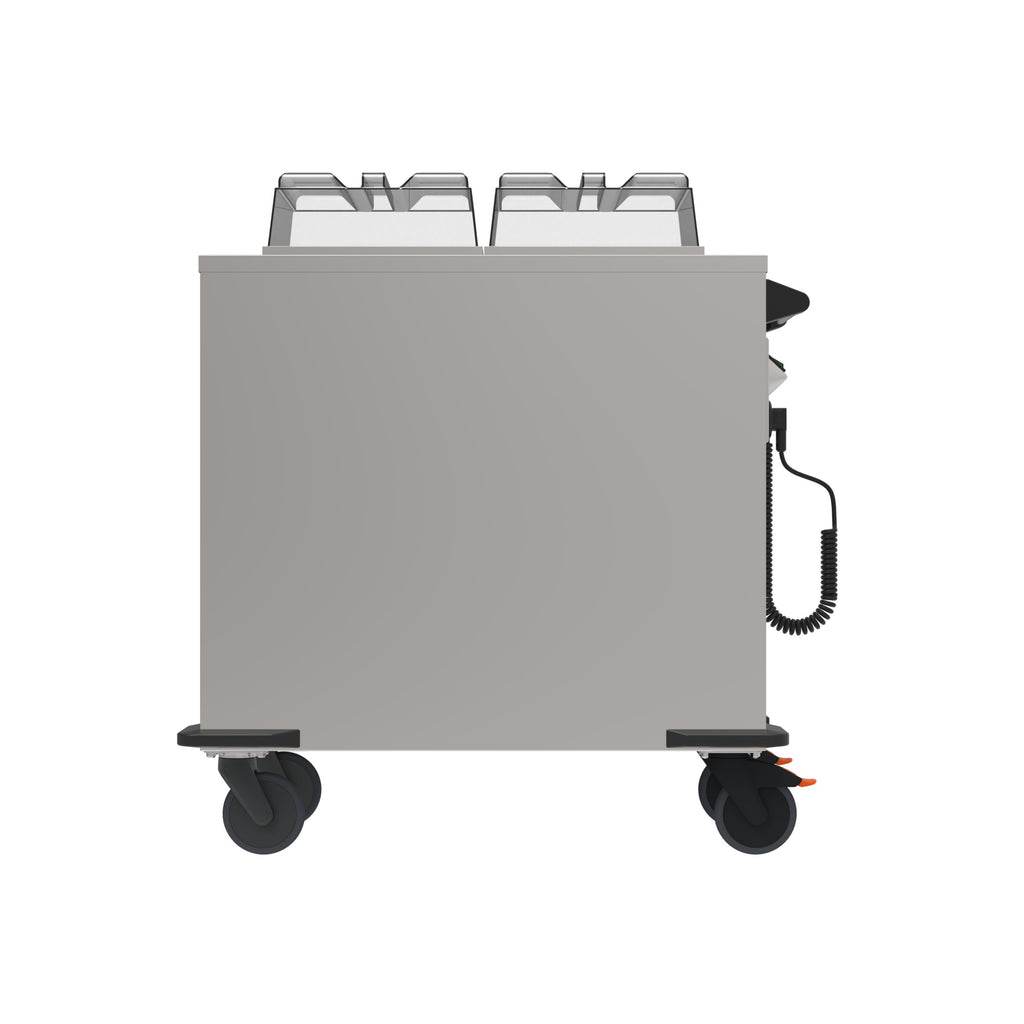

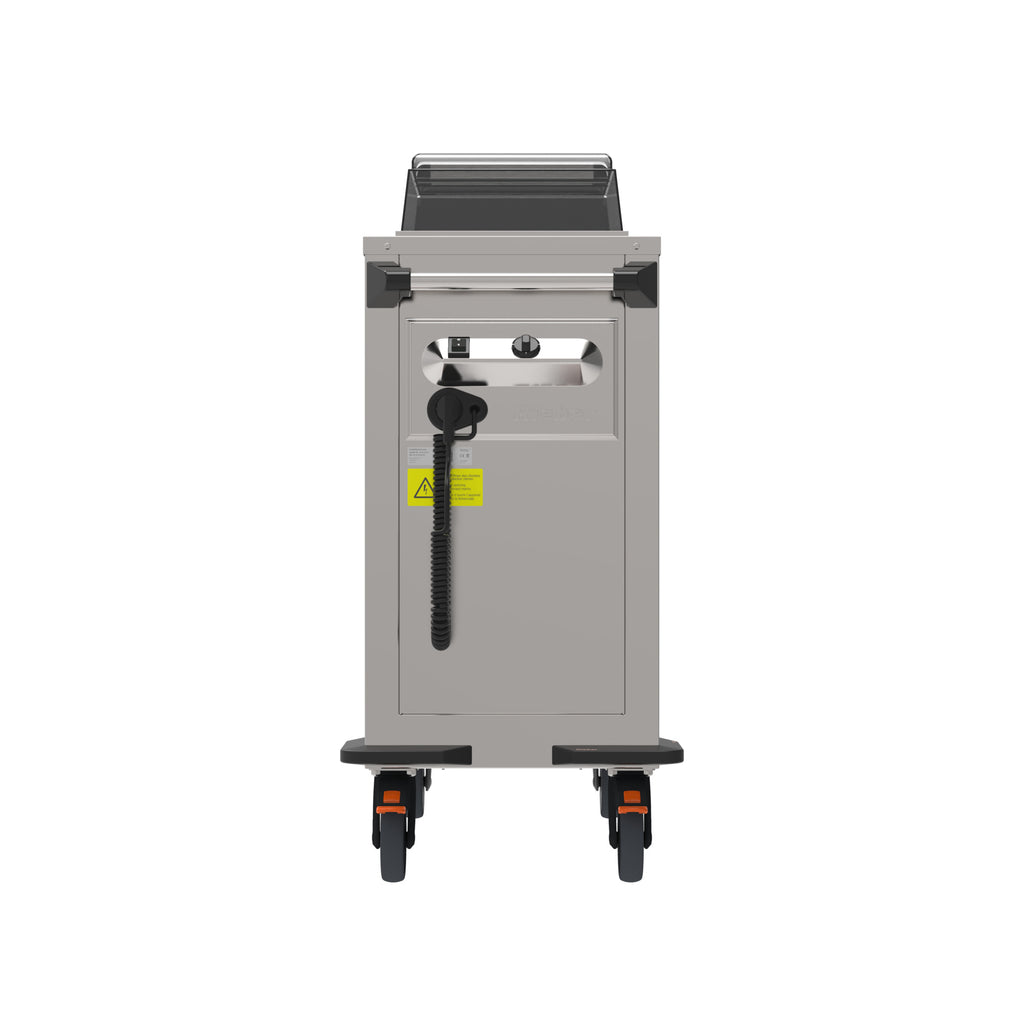

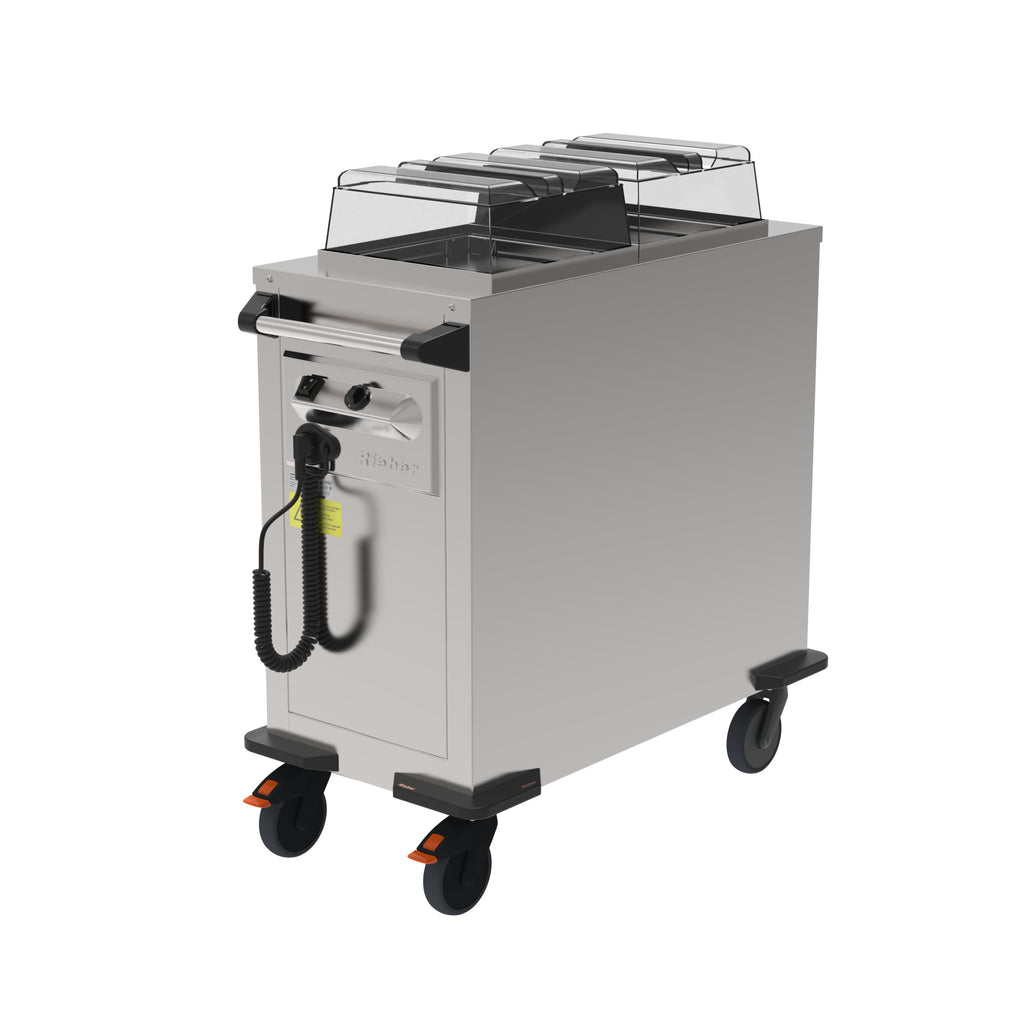

The tube stacker features powerful, adjustable circulating air heaters for warming, temporarily storing, and transporting dishes in two adjustable tubes. The spring force can be easily adjusted manually according to the weight of the dishes. It also features integrated overheating protection for perfect safety and includes polycarbonate lids for hygienic protection of the dishes*.
Additional accessories for each tube include a single-walled stainless steel lid or a fully circumferential impact protection for extra robustness, as well as a plastic-coated interior lining. Also available with stainless steel casters upon request.
Rust-proof, high-quality, hygienic stainless steel, matt polished.
Stable, smooth-running platforms.
Tilt- and tilt-proof, with robust stacking mechanism.
Double-walled insulated body, low heat loss.
Flexible and precise adjustment by hand.
Output height can be adjusted consistently, with heat-resistant tension springs.
Mobile with rust-proof, lockable casters and safety push handle.
Bumper corners for impact protection and shock-protected switching element.
Removable tube inserts, easy to clean.
Outside with closed lid suitable for high pressure cleaners, jet water protected (IPX5).
| GTIN/EAN |
4007537056100 |
| material |
Stainless steel 1.4301 (CNS) |
| Weight |
58.3 kg |
| Dimensions |
955 x 480 x 1030 mm |
| Heating area |
+30°C to +110°C |
| Shaft dimensions i. L. |
290 x 290 mm |
| Number of tubes |
2 |
| Lid hood |
Included (2x Poly) |
| Nominal voltage |
1N AC 230 V 50/60 Hz |
| Connection value |
1,800 W |
| Plug type |
Schuko plug (Type F) |
| Country-specific plug |
upon request |
| Cable type |
spiral cable |
| Cable length |
2500 mm |
| Protection class |
IPX5 |
| sockets |
Dummy socket |
| Functions |
heated |
| Heating/cooling type |
circulating air heating |
| Shock protection |
4 corner bumpers |
| Wheel diameter |
125 mm |
| Roll |
2 swivel castors; 2 swivel castors with brakes |
| Role type |
Stainless steel |
| Max. payload |
150 kg |
| Order number |
89010158 |
