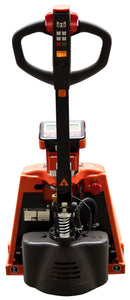

Outstanding maneuverability with maximum performance - the EHW 20 Eco Plus with scale is the perfect solution in confined spaces thanks to its compact design and powerful electric motors.
The small overall width of only 570 mm makes it much easier to drive the Eco Plus with scale in confined spaces - such as narrow storage aisles or on truck loading areas - in everyday operational use.
The high level of steering ease benefits from the upright mode, which allows the pallet truck to be moved comfortably thanks to the vertical positioning of the drawbar.
The integrated scale helps with picking goods, shipping goods and in production.
When it comes to precise weighing and powerful transport of loads up to 2.0t, the EHW Eco Plus with scale lives up to its name.
With the external 48V/6A charger, the charging time is approximately 3 hours.
The drive and lifting motors, with an output of 850 and 600 watts respectively, are virtually maintenance-free and make the EHW Eco Plus a true powerhouse wherever high logistical performance is required.
UPRIGHT MODE
The EHW Eco Plus can also drive in "upright mode", i.e. it can be moved with the drawbar in a vertical position.
This is done by holding down the button with the turtle symbol and then moving the drive switch.
Particularly useful in confined spaces, e.g. in elevators, trucks, etc.
Turtle mode:
Press the turtle button - the turtle symbol appears on the display.
Then move the drawbar into the driving position and operate the drive switch.
If the turtle button is pressed again, the EHW Eco Plus will travel at its normal speed.
Load capacity, kg: 2000
Load center, mm B: 600
Steering angle drawbar: 90
Wheelbase front/rear, mm L: 1220
Weight (with battery), kg: 170
Fork width, mm J: 180
Fork length, mm H: 1150
Drive wheel X, mm: 190x70 P
Fork rollers Y, mm: 80x70 P
Number of wheels: 1X 4Y
Stroke, mm E: 95
Maximum drawbar height, mm A: 1220
Fork height min., mm F: 85
Total length, mm G: 1630
Total width, mm N: 570
Total fork load carrying width, mm Q: 570
Ground clearance, mm C: 25
Aisle width with Euro pallet, mm: 1700
Turning radius, mm: 1350
Speed loaded, km/h: 4.5
Lifting speed loaded, mm/s: 19
Lowering speed loaded, mm/s: 32
Gradeability loaded, %: 6
Brake: electromagnetic
Drive motor, kW: 0.85
Lifting motor, kW: 0.6
Battery, V/Ah: 48/15 lithium ion
Battery weight +/-5%, kg: 6
Fork thickness, mm D: 60
Charger: 48/6 external
