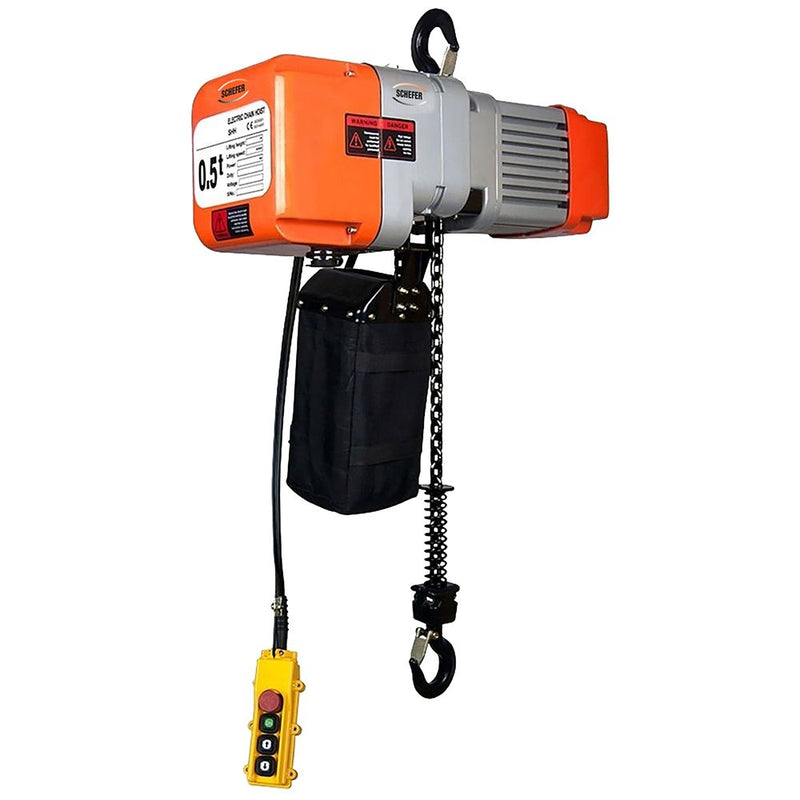

From uncomplicated use in the workshop to moving heavy loads, the EKZ Eco Professional electric chain hoist performs all tasks with flying colors and adapts to its challenges with a load capacity range of 250 kg to 2000 kg.
The control is via a 5.5 m long cable with an emergency stop button.
A standard lift of 3 m completes this successful product.
ISO classification M5 and classification in engine group FEM 2m (corresponding to a service life of 1,600 full load hours)
- Motor 400V - 3ph - 50Hz in IP54 design
- Connection cable approx. 50 cm, but without plug
- 2 lifting speeds
- Suspension of the chain hoist using a support hook
- Load hook rotatable 360
- integrated operating limit switch
- Chain storage
- Load chains type G80
Load capacity, t: 2
Chain strands: 2
Minimum size, mm: 650
FEM Group: 2M
Duty cycle, %: 40
Lifting speed, mtr./min: 2.5+0.85
Weight, kg: 73
Engine, KW: 1.1/0.37
