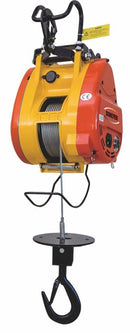

The lightweight and compact design allows the ESZ Premium electric wire rope hoist to be easily installed where it can fully develop its power.
Once positioned and connected to the 230V standard power supply, the ESZ Premium lifts loads of up to 300 kg.
The processing is as simple as it is secure.
The electric wire rope hoist is operated via a water-protected IP 65 control unit with emergency stop switch.
The power supply is via a power cable with a Schuko plug.
If the cable pulley touches the limit arm during ascent, the built-in limit switch automatically stops the lifting process.
During the lifting process, the sensory automatic shutdown protects the motor in case of faulty rope development.
The standard load pressure brake holds the load securely in any position.
The cable pull is already equipped with a steel wire rope and a 360° rotating hook with a safety lock.
Load capacity, kg: 300
Stroke, m: 30
Lifting speed 1st position, m/min: 21
Lifting speed top layer, m/min: 17
Motor power IP44, kW / A: 1.6
Operating voltage: 230V / 1 phase / 50Hz
Duty cycle: 25% ED
Rope diameter, mm: 5
Total weight, kg: 22
