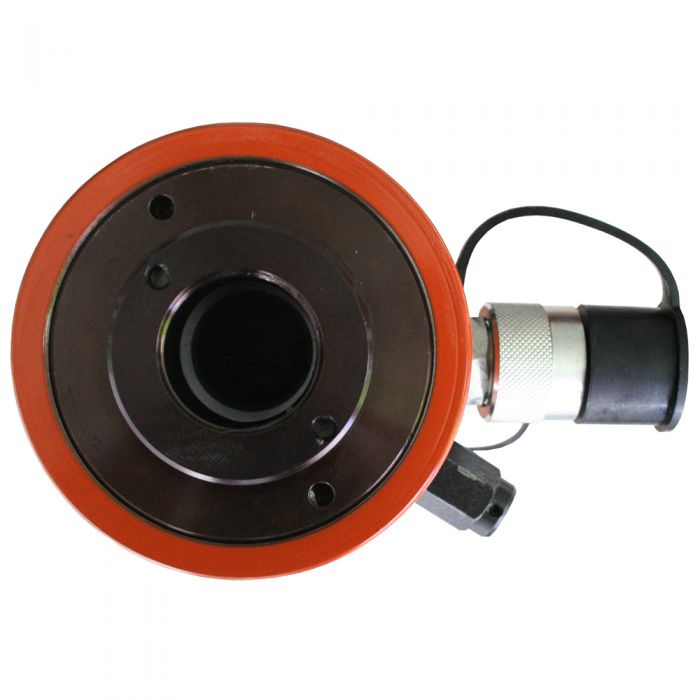

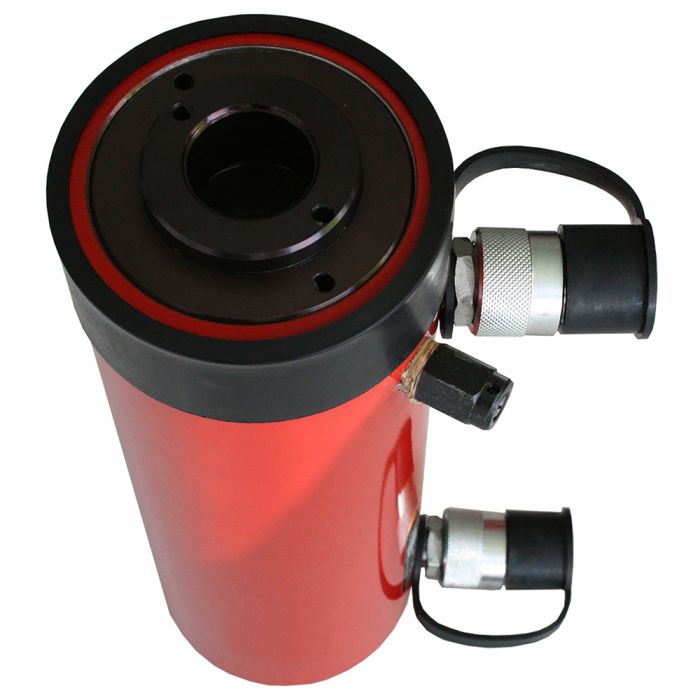

Hollow piston cylinders, in particular, unleash their impressive power in conjunction with threaded spindles. The HHZD Primus is used wherever heavy structures need to be pulled or moved, bolts or sleeves need to be pressed in or out, or heavy loads need to be clamped.
Its hydraulic piston retraction ensures safe and extremely precise load positioning. Furthermore, thanks to its 3/8 NPT oil connection thread, the HHZD Primus can be connected to most common cylinder systems. High-quality chrome plating and special treatment of the cylinder and piston ensure a long service life and corrosion protection.
Nominal load pressure, t: 60
Rated train load, t: 41.8
Stroke, mm: 89
Oil volume pressure, ccm: 733
Oil volume train, cc: 481
Total height min., mm: 248
Total height max., mm: 337
Case diameter, mm: 159
Weight, kg: 28
