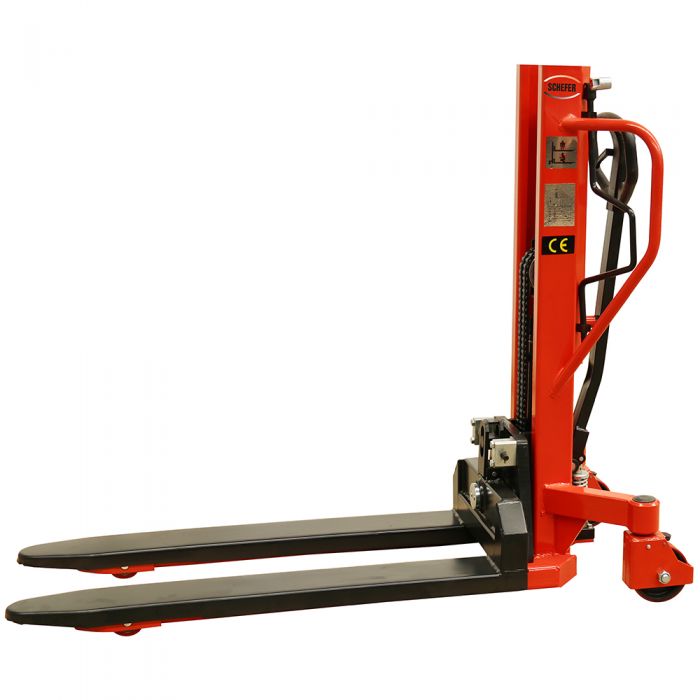

With its fork length of 1150 mm, the HHWS is ideally suited for the longitudinal entry of palletized goods and containers.
By means of a pumping movement on the drawbar, loads of up to 800 kg can be brought to an ergonomic working height in a way that saves effort.

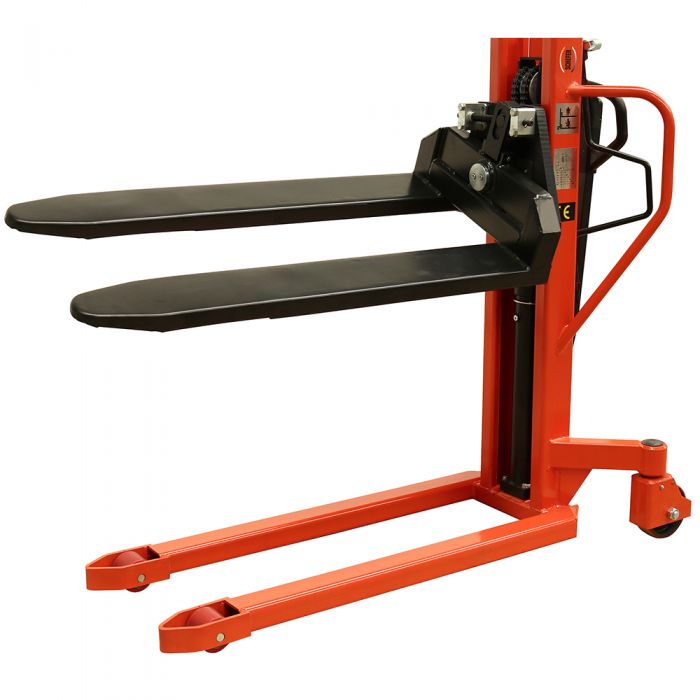

Once there, it is possible to tilt the forks 20 degrees to each side. This process is carried out precisely by adjusting the spindle.
The forks then remain in the desired position. Thanks to the sturdy frame construction, the load capacity at full tilt is still a respectable 400 kg.
The crank required for spindle adjustment is permanently attached to the device and is therefore always at hand.
The backward movement of the tilt function is also achieved by adjusting the spindle.
The lowering of the load is triggered by the lowering lever located on the drawbar.
Foot guards and wheel locks fitted to the steering wheels as standard provide additional protection.
The HHWS Premium is easy to move thanks to the two handrails attached to the sides.
Drive: manual
Total height max. ,mm U: 1325
Load capacity, kg: 800
Wheel type: PU/PU
Drive/steering wheels, mm X: 150x50
Load rollers, mm Y: 80x70
Fork carrying width, mm Q: 540
Fork height min., mm F: 90
Total stroke, mm E: 810
Fork height max., mm S: 900
Fork length, mm H: 1150
Fork width mm J: 150
Total height min., mm T: 1325
Total length, mm G: 1640
Total width mm N: 750
Total weight, kg: 192
Tilt: 20 left/right
