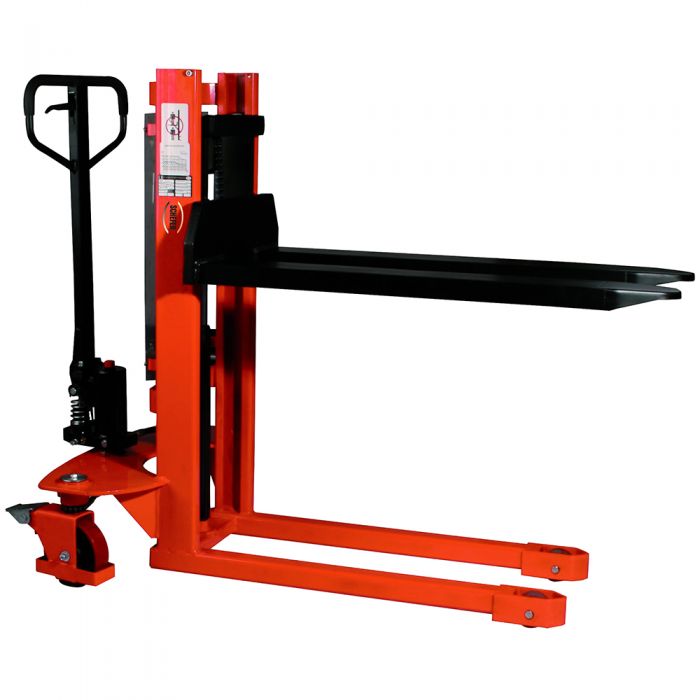

The Premium 1009 high lift truck debuts with a wide range of applications and impresses with its exceptional stability.
The low mast height makes loading and unloading station wagons and light vans particularly easy.
A highlight is the automatic quick lift up to 100 kg.
The low weight and the chain-guided forced steering ensure easy maneuvering and moving.
Loads of up to 1000 kg remain stable in position throughout the entire lifting process thanks to the well-thought-out basic design.
The one-handed operation attached to the ergonomically shaped handle component allows for finely adjustable lowering and thus ensures even greater safety and comfort.
Drive: manual
Total height max. ,mm U: 1300
Load capacity, kg: 1000
Load center, mm B: 600
Wheel type: PU/PU
Drive/steering wheels, mm X: 180x50
Load rollers, mm Y: 80x55
Number of wheels: 2xX 2xY
Fork carrying width, mm Q: 520
Fork height min., mm F: 90
Total stroke, mm E: 810
Fork height max., mm S: 900
Fork length, mm H: 1150
Fork width mm J: 150
Total height min., mm T: 1300
Total length, mm G: 1670
Total width mm N: 765
Turning radius, mm: 1425
Fork thickness, mm D: 50
Total weight, kg: 185
up to 100 kg, mm: 50
from 100 kg, mm: 17
