Some applications require not only the right equipment but also a particularly economical price-performance ratio.
This brings the HTF-U Eco into play.

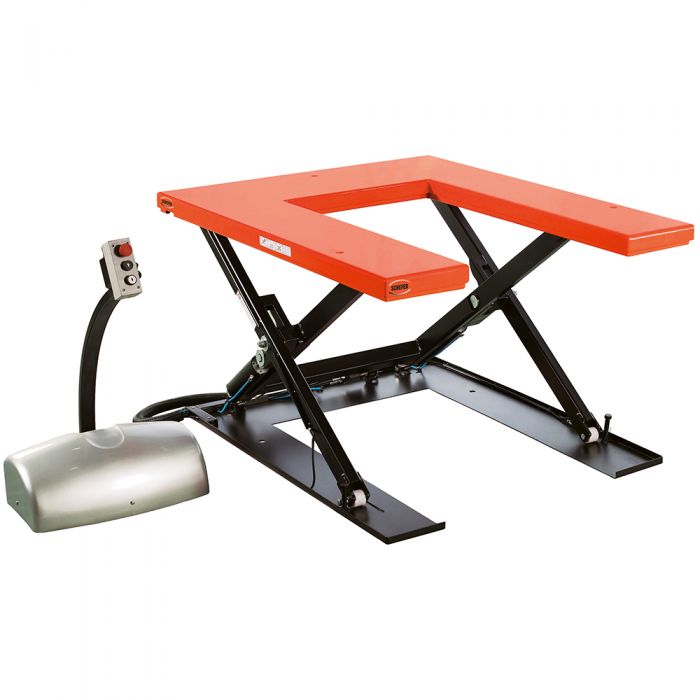

Designed for working with palletized goods, the HTF-U Eco lifts them onto standard pallets and wire mesh boxes up to 1000 kg to an ergonomically advantageous working height.
The 0.75 kW lifting motor ensures a controlled and smooth lifting process.
The HTF-U Eco is already completely pre-assembled and can be used immediately.
Due to its low installation height, no pit installation is required.
It can be stored in a space-saving manner until the next use.
The Parker high-pressure hydraulic quick coupling system, which is located on the lifting table and on the control unit, ensures simple and flexible handling.
This system guarantees a secure connection and uncomplicated decoupling.
The freestanding hydraulic unit including the control unit is supplied as standard.
The long supply lines ensure flexibility.
To the lifting table approx. 2.4 m and the power cable with 16 A plug approx. 2.5 m.
Safety is also our top priority here:
- The rollers of the scissor lifts run on metal sheets with raised edges. This ensures safe guidance and protects the user's feet.
- A safety bar is installed under the platform which immediately stops the lowering movement upon contact.
- an emergency stop switch interrupts the entire power supply if necessary.
- In addition, the stability lock prevents unintentional lowering, e.g. during maintenance work.
Bring palletized goods to an ergonomic working height without a ramp or additional lifting equipment - the HTF-U Eco makes it possible!
Lifting capacity, kg: 1000
Platform length, mm L: 1450
Platform width, mm B: 1140
Height, mm C: 80
Lifting time, s: 18
Engine power, kW: 0.75
Net weight, kg: 235
Stroke, mm H: 760
Operating voltage, V: 400
Control voltage, V: 24
Number of cylinders: 2
