Functional - Ergonomic - Safe
One device, many possibilities.

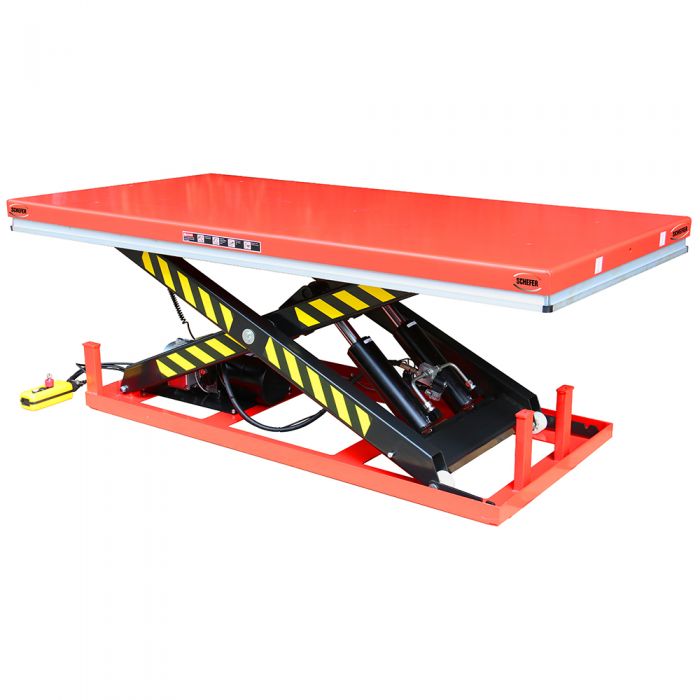

The comfort model of our hydraulic lifting table series, the HTE Eco Professional, is available in various dimensions and sizes, with a lifting capacity of up to 6 tons.
The extremely wide range of applications, coupled with high efficiency, precision and reliability, guarantees both smooth and accelerated workflows.
This makes this series of lifting tables the most frequently used, especially in the manufacturing industry.
Thanks to the sturdy base frame that comes as standard, the HTE Eco Professional can be installed directly on the ground or in a pit.
The lifting table platform's raising and lowering process is electrically and continuously variable, allowing the load to be quickly raised to an ergonomic working height.
This avoids unnecessary work steps and protects your back.
The direct connection of the platform to the upper frame ensures additional stability and safety in use.
The subframe, made of angle profiles, is self-supporting, eliminating the need for additional grouting of the pit.

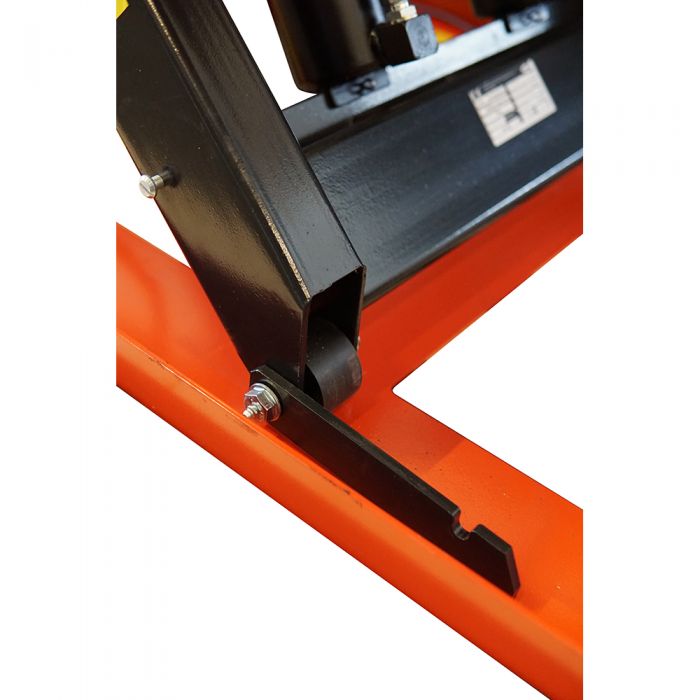

The scissors of the HTE Eco Professional are made of torsion-resistant solid steel and run on roller-bearing, maintenance-free rollers.
In addition, the hydraulic unit is protected against overload by a pressure relief valve.
Each lifting table is manufactured according to customer requirements (DIN EN 1570-1).
The solid basic construction of the HTE Eco Professional series is rounded off by extensive standard equipment:
- 400V operating voltage

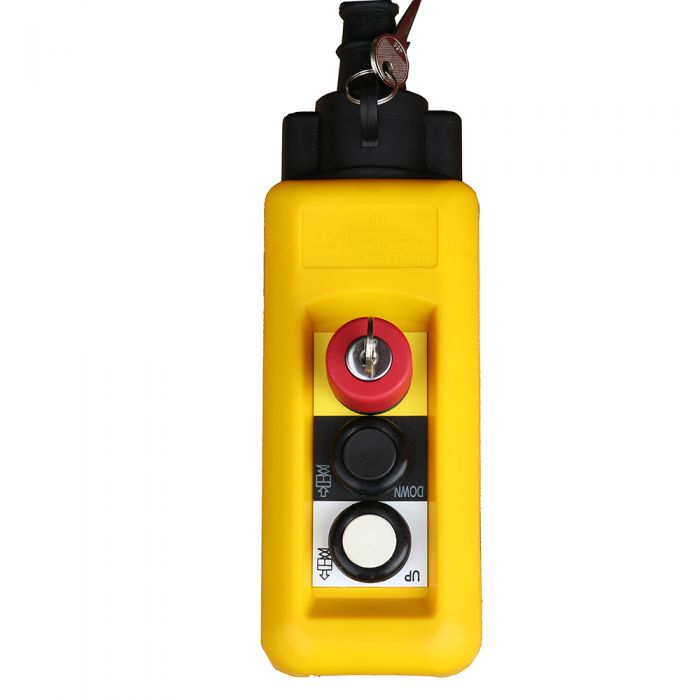

- 24V control voltage with hand switch on 3m spiral cable, emergency stop button and key switch

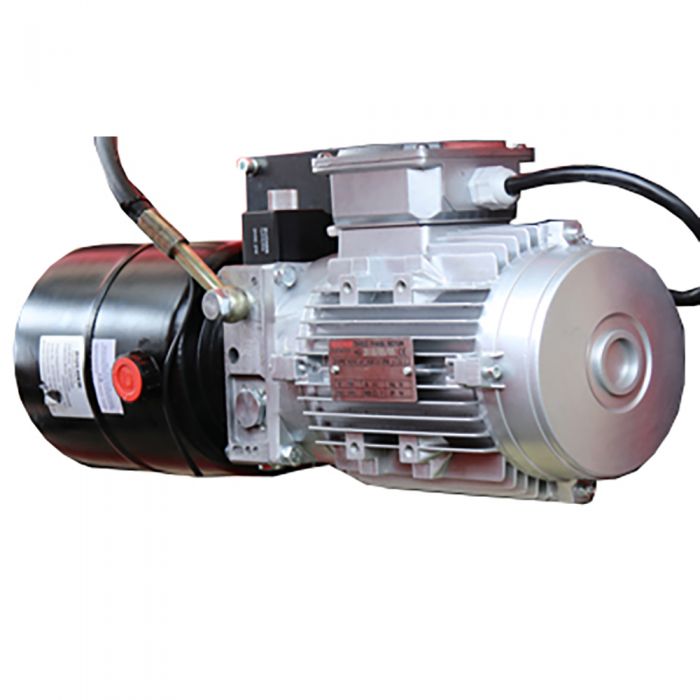

- High-performance hydraulic unit inside, below the platform

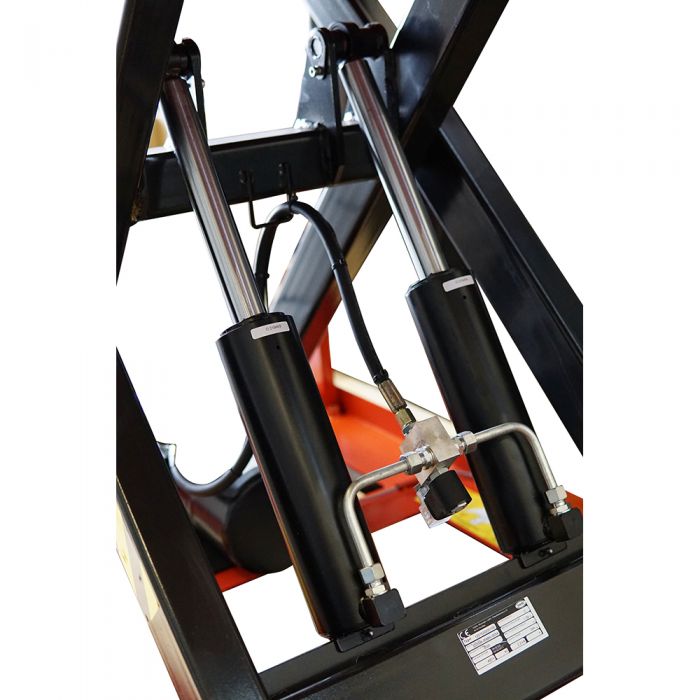

- Chrome-plated hydraulic cylinder
- Platform surface made of sturdy smooth sheet metal
- Pipe burst valve
- Safety contact strips
- Parking supports
- Maintenance supports
- Transport eyes (except 500kg version)
- with 4m long connection cable without plug
- safe transport packaging
Lifting capacity, kg: 2000
Platform length, mm: 2000
Platform width, mm: 850
Height, mm: 250
Lifting time, s: 25
Engine power, kW: 2.2
Net weight, kg: 300
Stroke, mm: 1050
Operating voltage, V: 400
Control voltage, V: 24
Max. lifting cycles per hour: 5
