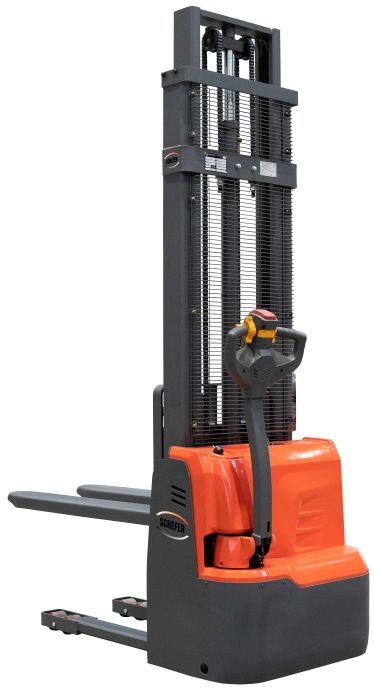

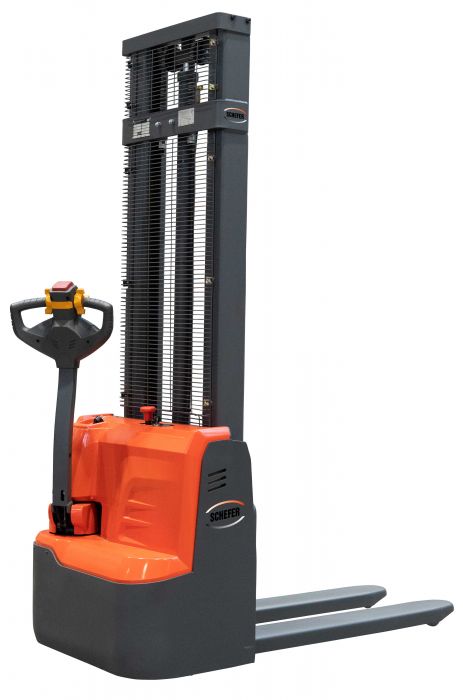

The agile EGV Eco Professional is the perfect solution when it comes to electrically moving 1500 kg loads and lifting them up to 3500 mm.
A 24V/125Ah maintenance-free AGM battery and the standard electromagnetic brake ensure fast and safe handling of your goods.
The integrated 24V/10A charger ensures quick re-use of the forklift thanks to its high charging capacity.
Equipped with discharge indicator as standard.
If the charge level is too low, the forklift's lifting function is automatically switched off.
Of course, you can still move the forklift to your nearest power outlet to recharge the batteries.
The EGV Eco Professional is built on a stable 4-wheel structure.
Together with the side-mounted drawbar, this results in stable and clear operation of the forklift.
Drive: electric
Total height max. ,mm U: 4060
Load capacity, kg: 1500
Load center, mm B: 600
Wheelbase front/rear, mm L: 1180
Wheel type: Polyurethane
Support wheel, mm Z: 150x60
Drive/steering wheels, mm X: 195x70
Load rollers, mm Y: 80x70
Number of wheels: 1X, 4Y, 1Z
Fork carrying width, mm Q: 570
Fork height min., mm F: 90
Total stroke, mm E: 3410
Fork height max., mm S: 3500
Drawbar height, mm A: 1300
Fork length, mm H: 1070
Fork width mm J: 170
Total height min., mm D: 2340
Total length, mm G: 1748
Total width mm N: 800
Aisle width with Euro pallet, mm: 2171
Turning radius, mm: 1355
Lifting speed loaded, mm/s: 80
Driving speed loaded, km/h: 4.5
Lowering speed loaded, mm/s: 120
Battery weight +/-5%, kg: 70
Ground clearance, mm C: 26
Gradeability loaded, %: 6
Fork thickness, mm D: 60
Total weight, kg: 770
Battery V/Ah: 24/125
Drive motor, kW: 0.65
Lifting motor, kW: 2.2
Charger: internal
