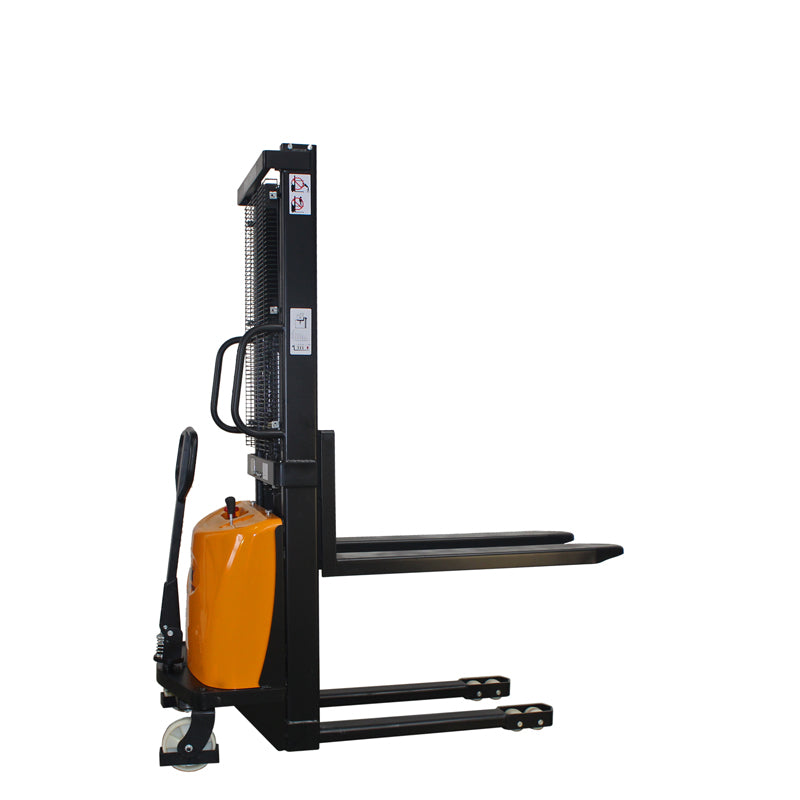

With the semi-electric high-lift trucks of the HSE series, you have a versatile device quickly in operation. These high-lift trucks are suitable for a variety of tasks, such as loading and unloading trucks and containers, stacking pallets and other goods in warehouses, or simply transporting palletized goods over short distances. Includes an integrated charger.
Technical data:
| semi-electric high lift truck |
HSE 1000/1600 |
| Lifting capacity max. |
1000 kg |
| Lifting range |
90-1600 mm |
| Fork size |
1150x142x60 mm |
| Fork spacing outside |
550 mm |
| Fork spacing inside |
266 mm |
| Load center of gravity |
500 mm |
| Working aisle width |
1755 mm |
| swivel castors |
180x50 mm nylon |
| Load rollers |
80x70 mm nylon tandem |
| Power supply |
12V 100Ah |
| Lifting motor power |
1.6 kW |
| Lifting speed |
|
| without load |
0.150 m/s |
| with load |
0.135 m/s |
| Lowering speed |
dosable |
| Dimensions |
1735x780x2085 mm |
| Dead weight |
350 kg |
