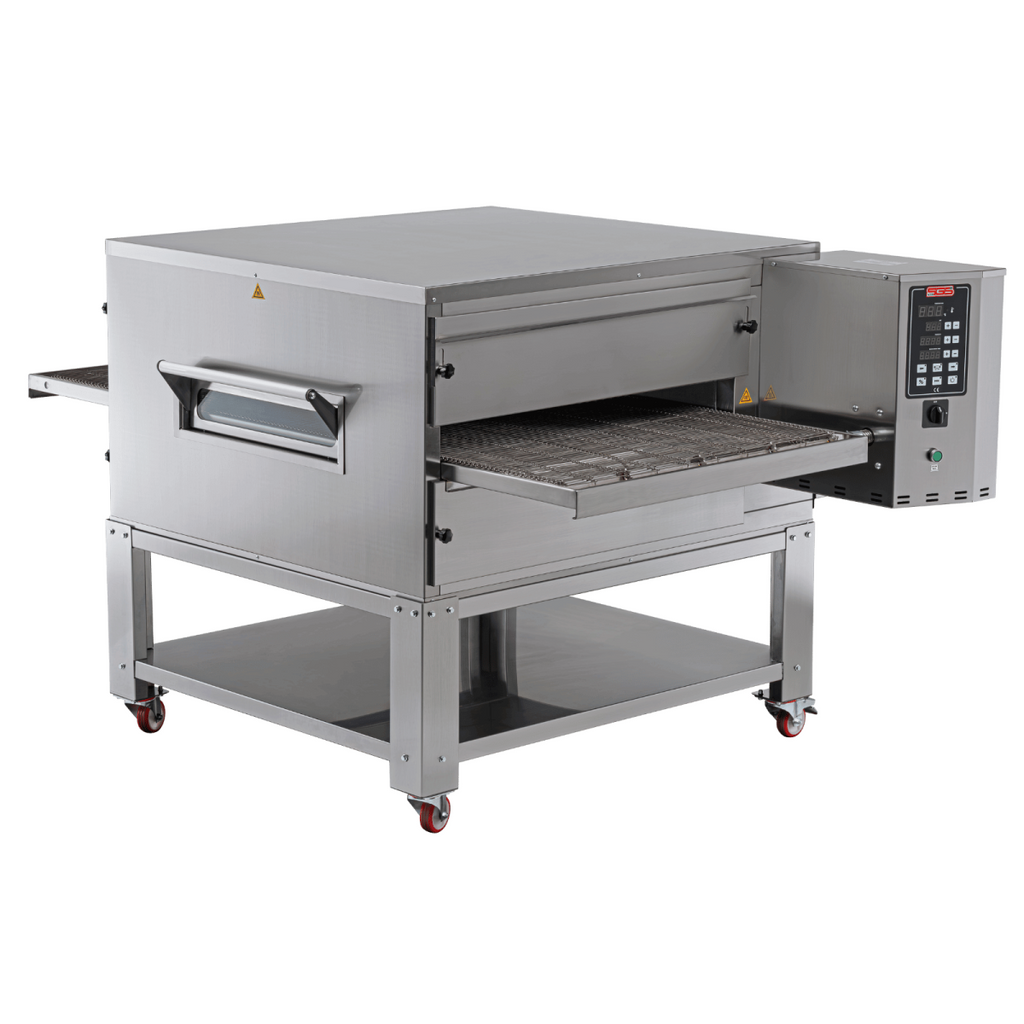

Electric continuous furnace incl. base / tunnel furnace / PO/K 70 E
This model is ideal for continuous use in busy kitchens – precise, fast, efficient. Secure yours online now – perfect for commercial kitchens throughout Germany.
User experience
- Shorter cooking times allow for mass production
- in busy commercial kitchens."
- Shorter ramp-up times
- Shorter cooking times
- Uniform cooking experience
- Elimination of the need for expensive ventilation systems
- Easy cleaning thanks to the removable strap and parts.
- Key features
- Temperature control from 150 degrees to 350 degrees
- Adjustable belt and cooking speed.
- Cooking chamber made of galvanized steel
- Stackable up to 3 ovens
- Available in gas and electric versions
- Cooking times are adjustable between 1 min and 30 min.
- All 4 sides of the oven are insulated.
- Microprocessor-enabled belt drive
- Robust base frame with swivel casters
- Silent operation with a noise level below 65 dBA.
- User-friendly electronic membrane panel
Technical specifications – PO-K series electric continuous oven
The PO-K series electric continuous furnaces are designed for continuous use in the
Designed for professional catering and bakery use. Thanks to digital control, consistent
Their heat distribution and compact design make them ideal for high baking capacities at
Consistent product quality. The following are the technical specifications of the PO-K-50-E models.
PO-K-70-E and PO-K-85-E are listed.
| Model |
PO-K-50-E
|
PO-K-70-E
|
PO-K-85-E
|
| Baking area (m²) |
0.62 m² |
0.70 m² |
0.85 m² |
| Number of floors |
1 |
1 |
1 |
| Conveyor belt dimensions (mm) |
500 × 1425 mm |
700 × 1670 mm |
850 × 1820 mm |
| Width – A (mm) |
1520 mm |
1400 mm |
1900 mm |
| Depth – B (mm) |
1050 mm |
1270 mm |
1400 mm |
| Height – C (mm) |
460 mm |
570 mm |
640 mm |
| Work surface dimensions (mm) |
500 mm |
500 mm |
500 mm |
| Electrical power |
10 kW 400V 50–60 Hz 3F+N |
15 kW 400V 50–60 Hz 3F+N |
22 kW 400V 50–60 Hz 3F+N |
| Thermal output |
4–5 kW/h |
8–10 kW/h |
12–13 kW/h |
| Maximum temperature |
350 °C |
350 °C |
350 °C |
| Weight of the oven |
160 kg |
215 kg |
305 kg |
| Pallet dimensions (mm) |
1080×1440×5500 mm |
1250×1700×7300 mm |
1350×1850×7500 mm |
| Control system |
Digital |
Digital |
Digital |
| Energy source |
Electrically |
Electrically |
Electrically |
| Gas connection pressure (mbar) |
– |
– |
– |
Additional Information
- It is produced in accordance with hygiene and safety guidelines.
- The devices have the CE marking in accordance with the relevant directives.
- All materials are manufactured according to European food standards.
