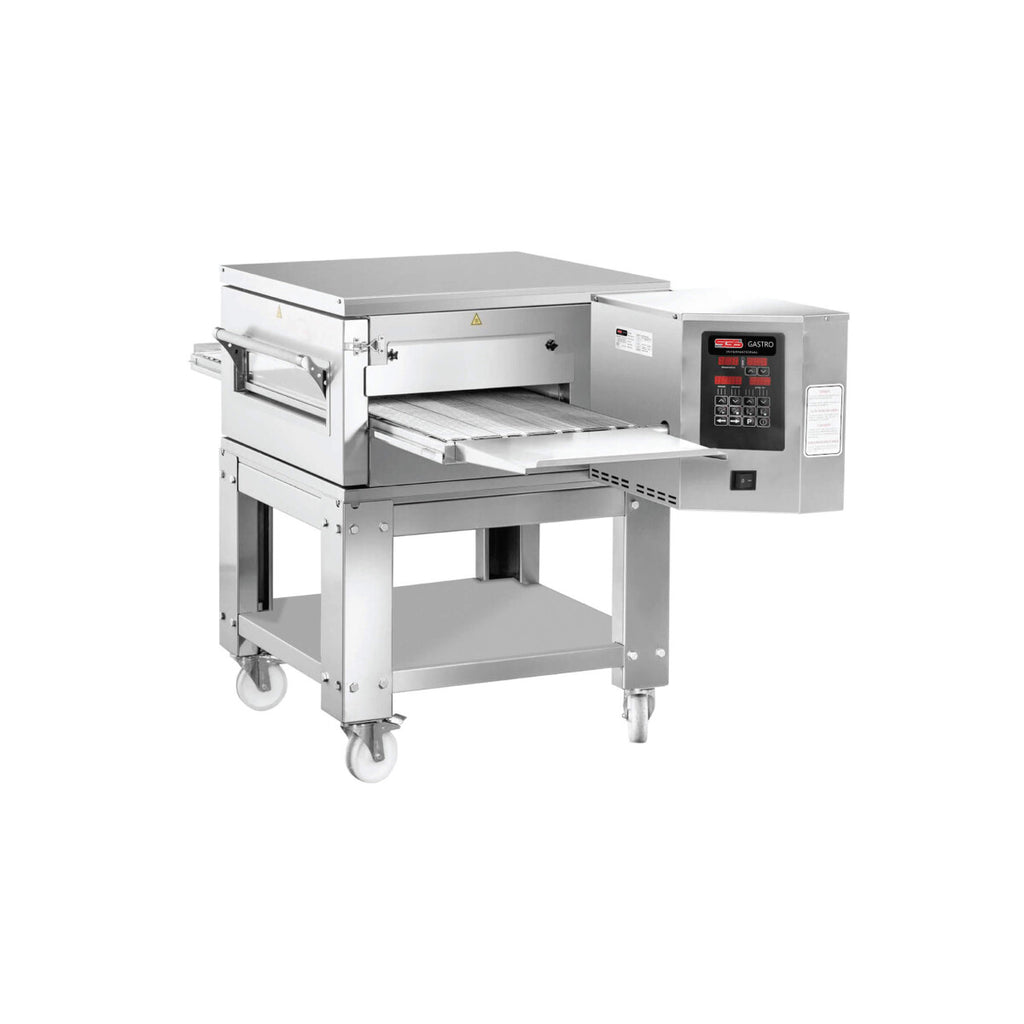

Gas continuous furnace incl. base / tunnel furnace / PO/K 50 G
For professional cooking stations: This gas range combines robust construction with powerful burner performance. Order now in our online shop – a German-made catering solution for your business.
execution
- User experience
- Shorter cooking times allow for mass production
- in busy commercial kitchens."
- Shorter ramp-up times
- Shorter cooking times
- Uniform cooking experience
- Elimination of the need for expensive ventilation systems
- Easy cleaning thanks to the removable strap and parts.
- Key features
- Temperature control from 150 degrees to 350 degrees
- Adjustable belt and cooking speed.
- Cooking chamber made of galvanized steel
- Stackable up to 3 ovens
- Available in gas and electric versions
- Cooking times are adjustable between 1 min and 30 min.
- All 4 sides of the oven are insulated.
- Microprocessor-enabled belt drive
- Robust base frame with swivel casters
- Silent operation with a noise level below 65 dBA.
- User-friendly electronic membrane panel
Technical specifications – PO-K series gas continuous oven
The PO-K series gas-fired continuous furnaces offer high energy efficiency and fast
Fast heating times and even heat distribution for professional applications.
Thanks to digital control, robust construction and variable bandwidths, the
Models ideal for catering and production facilities. Below you will find the
Technical specifications of the PO-K-50-G, PO-K-70-G and PO-K-85-G models.
| Model |
PO-K-50-G
|
PO-K-70-G
|
PO-K-85-G
|
| Baking area (m²) |
0.62 m² |
0.70 m² |
0.85 m² |
| Number of floors |
1 |
1 |
1 |
| Conveyor belt dimensions (mm) |
500 × 1425 mm |
700 × 1670 mm |
850 × 1820 mm |
| Width – A (mm) |
1520 mm |
1400 mm |
1900 mm |
| Depth – B (mm) |
1050 mm |
1270 mm |
1400 mm |
| Height – C (mm) |
460 mm |
570 mm |
640 mm |
| Work surface dimensions (mm) |
500 mm |
500 mm |
500 mm |
| Electrical power |
0.75 kW 220V 50–60 Hz |
0.75 kW 220V 50–60 Hz |
0.75 kW 220V 50–60 Hz |
| Thermal output |
0.65 m³/h |
1.3 m³/h |
2 m³/h |
| Maximum temperature |
350 °C |
350 °C |
350 °C |
| Weight of the oven |
165 kg |
220 kg |
310 kg |
| Pallet dimensions (mm) |
1080×1440×5500 mm |
1250×1700×7300 mm |
1350×1850×7500 mm |
| Control system |
Digital |
Digital |
Digital |
| Energy source |
gas |
gas |
gas |
| Gas connection pressure (mbar) |
20 mbar |
20 mbar |
20 mbar |
| Total power (kW) |
22 kW |
22 kW |
27 kW |
Additional Information
- It is produced in accordance with hygiene and safety guidelines.
- The devices have the CE marking in accordance with the relevant directives.
- All materials are manufactured according to European food standards.
